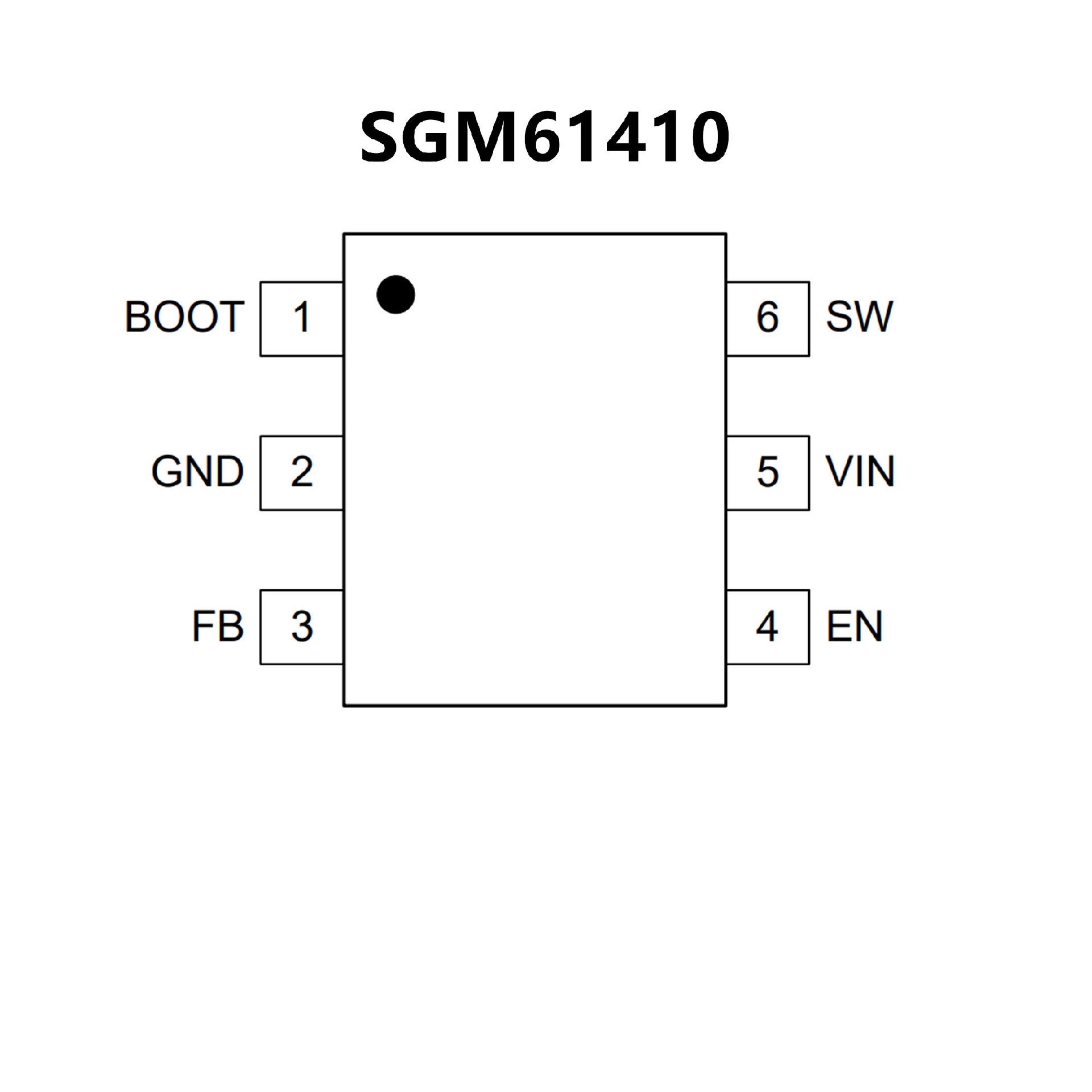

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and ThermalShutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

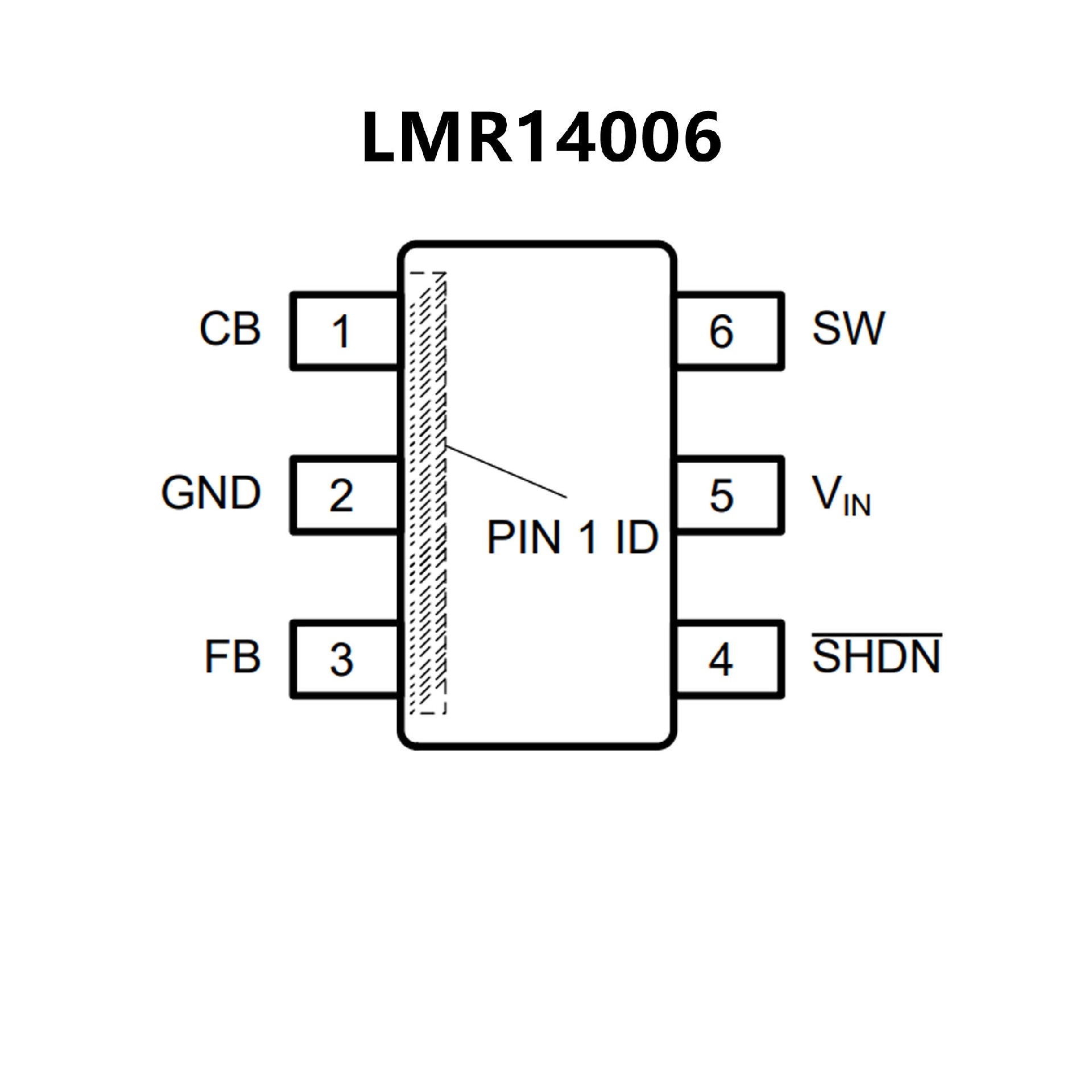

? Ultra Low 28 ?A Standby Current in Sleep Mode
? Input Voltage Range 4 V to 40 V
? 1 ?A Shutdown Current
? High Duty Cycle Operation Supported
? Output Current up to 600 mA
? 1.1 MHz and 2.1 MHz Switching Frequency
? Internal Compensation
? High Voltage Enable Input
? Internal Soft Start
? Over Current Protection
? Over Temperature Protection
? Small Overall Solution Size (TSOT-6L Package)
