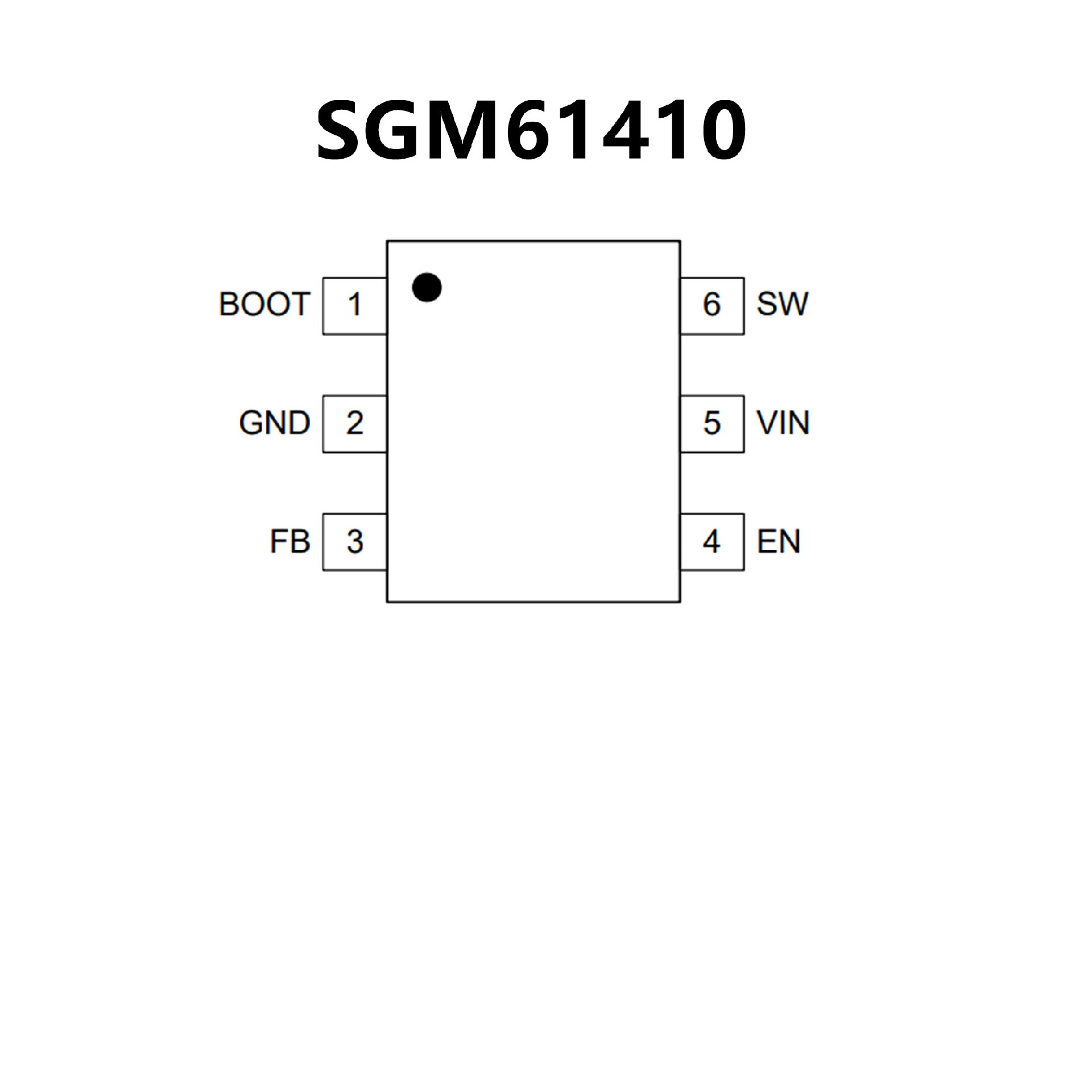

SGM61410.pdf? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Low Quiescent Current: 14μA (TYP)
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 1.2MHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and ThermalShutdown
? Power-Save Mode and PWM Mode Operation
? Monotonic Startup with Pre-biased Output
? 90% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

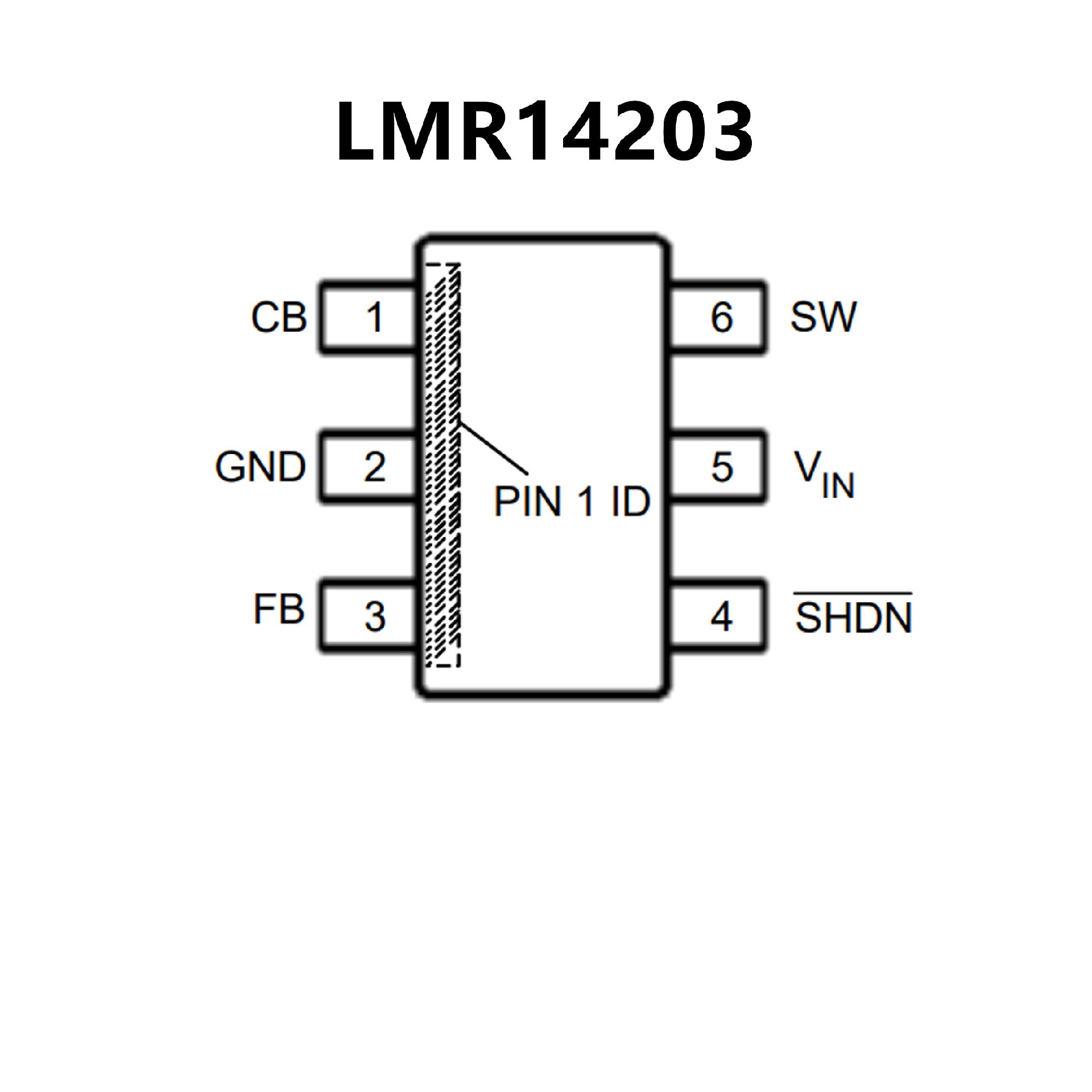

? Input Voltage Range of 4.5V to 42V
? Output Voltage Range of 0.765V to 34V
? Output Current up to 0.3A
? 1.25 MHz Switching Frequency
? Low Shutdown Iq, 16 ?A Typical
? Short Circuit Protected
? Internally Compensated
? Soft-Start Function
? Thin SOT-23-6 Package (2.97 x 1.65 x 1mm)
? Fully Enabled for WEBENCH? Power Designer
