? alified for Automotive Applications

? Device Temperature Grade 1: -40 °C to

  125 °C Ambient Operating Temperature Range

  Device HBM ESD Classification Level H1C

  Device CDM ESD Classification Level C4A

? 4 V to 40 V Input Range

? 5 A Continuous Output Current

? Ultra-low 40 ?A Operating Quiescent Current

? 90 m? High-Side MOSFET

? Minimum Switch-On Time: 75 ns

? Current Mode Control

? Adjustable Switching Frequency from 200 kHz to 2.5 MHz

? Frequency Synchronization to External Clock

? Spread Spectrum Option for Reduced EMI

? Internal Compensation for Ease of Use

? High Duty Cycle Operation Supported

? Precision Enable Input

? 1 ?A Shutdown Current

? External Soft-start

? Thermal, Overvoltage and Short Protection

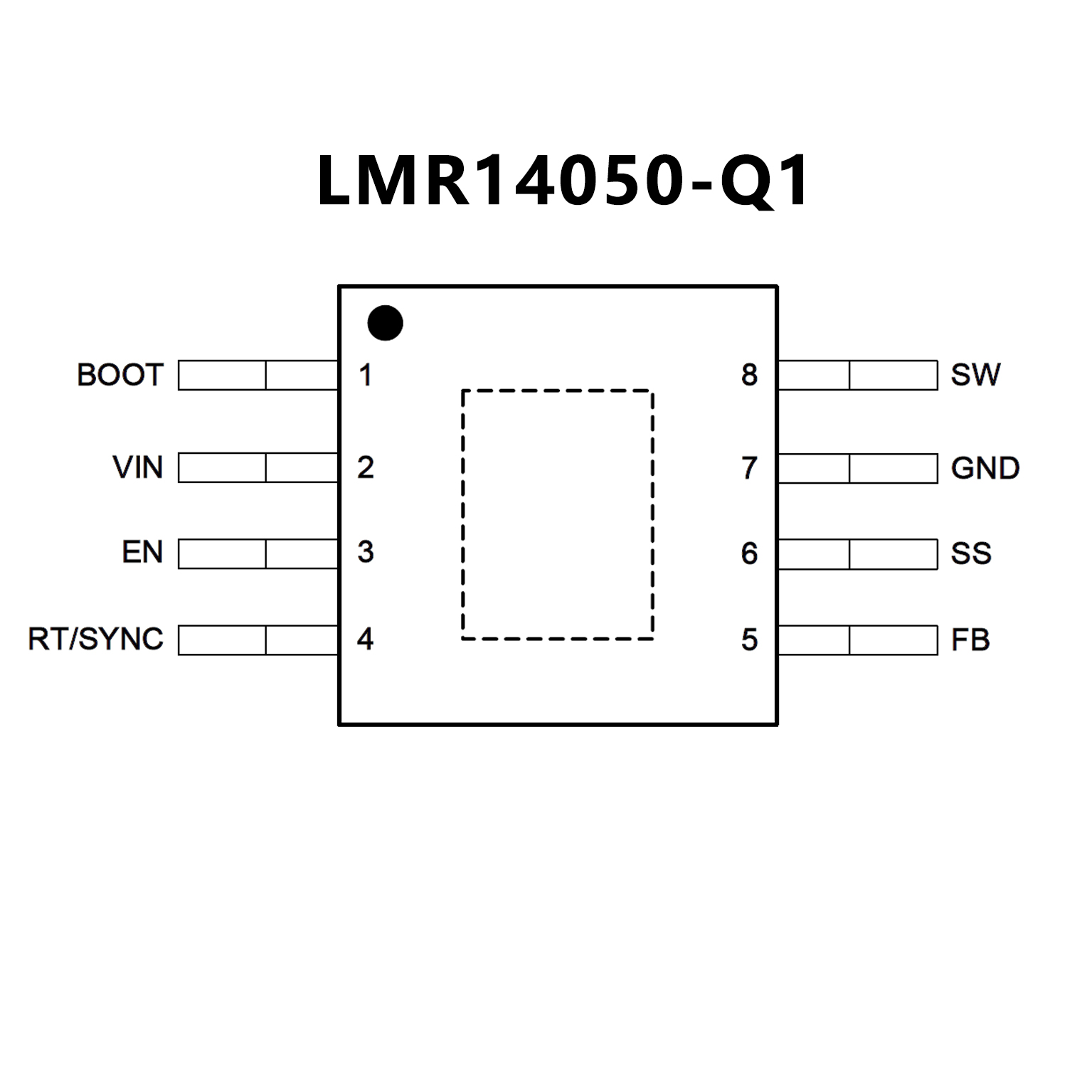

? 8-Pin HSOIC with PowerPAD? Package
