4G SP8T Diversity RF Switch, SGM72008 Replace MXD8680.
SGM72008
SGM72008.pdf
SGM72008.pdfFEATURES
? Advanced SOI Process
? Broad Frequency Range: 0.1GHz to 3GHz
? Low Insertion Loss: 0.6dB (TYP) at 2.7GHz
? High Isolation: > 20dB at 2.7GHz
? GPIO Control Interface
? Compact 2mm × 2mm, 14-Pin, UTQFN Package
? No External DC Blocking Capacitors Required

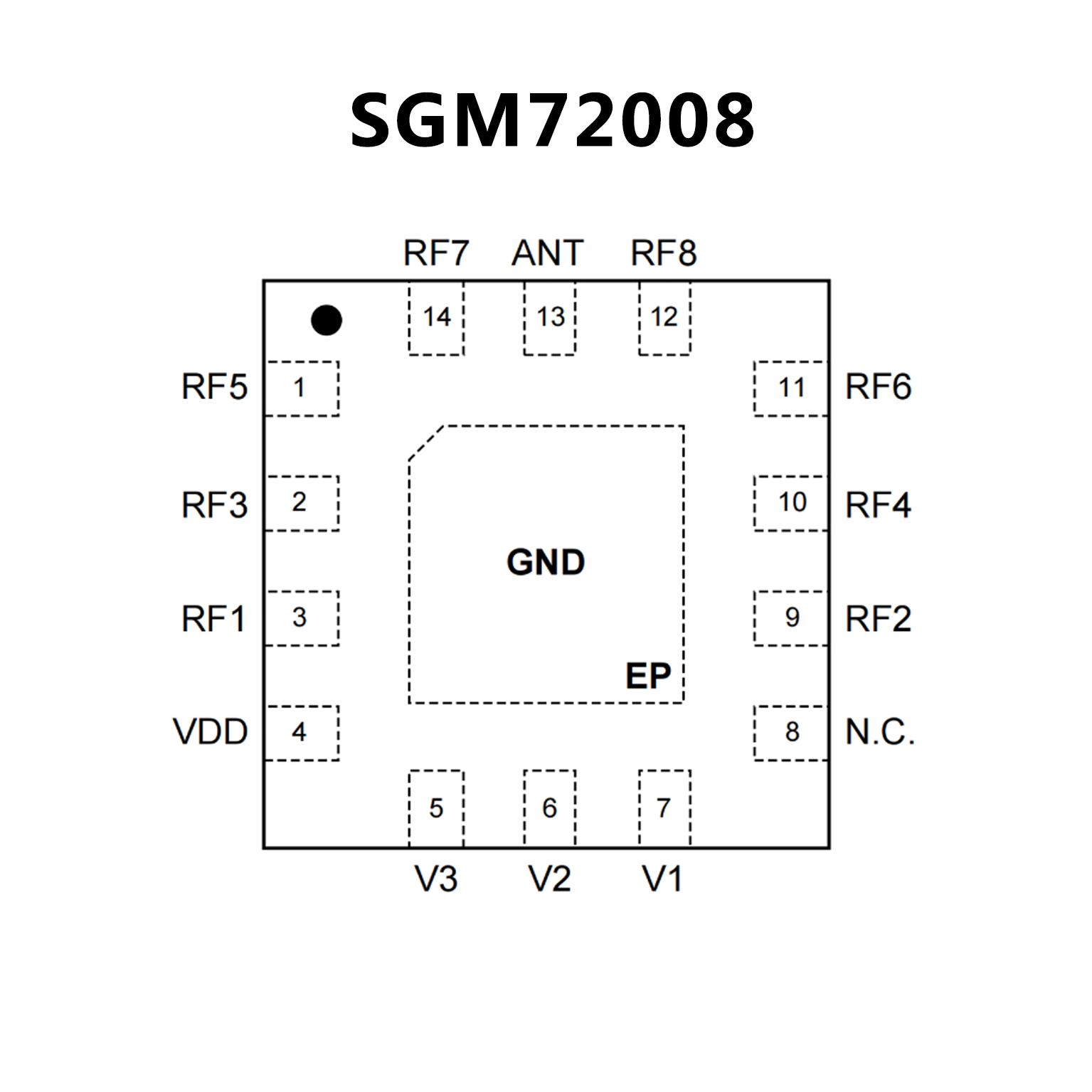

PIN CONFIGUTION
优势替代
FEATURES
? Excellent insertion loss
0.6 dB Insertion Loss at 2.7GHz
? Multi-Band operation 100MHz to 3000MHz
? Compact 2mm x 2mm in QFN-14 package
? No DC blocking capacitors required (unless
external DC is applied to the RF ports)

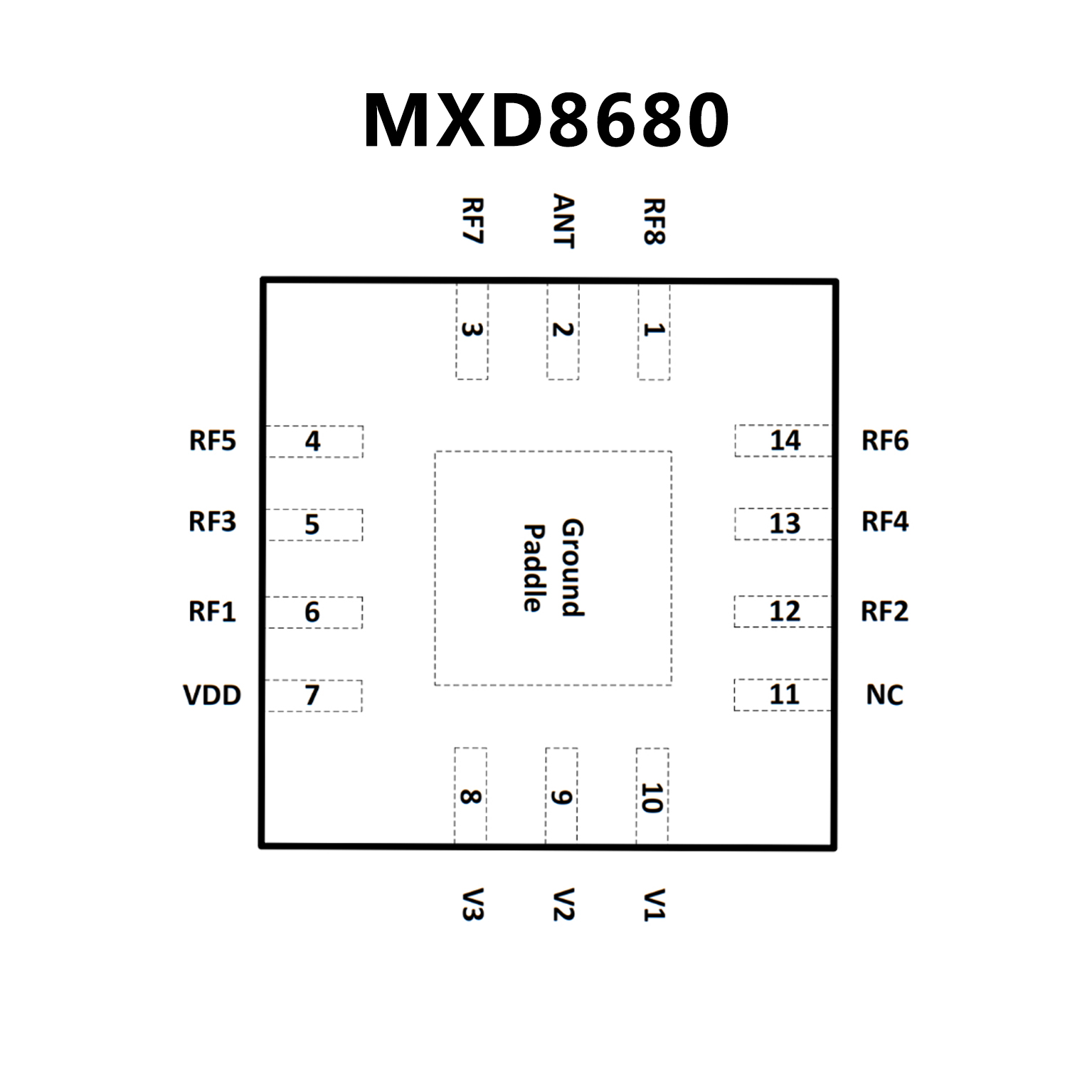

PIN CONFIGUTION
