SP10T Switch with MIPI for LTE Diversity,SGM72110 Replace MXD86A0.
SGM72110.pdf优势替代
FEATURES
? Excellent insertion loss
- 0.80 dB Insertion Loss at 2.7GHz
? P0.1dB @ 27dBm
? Multi-Band operation 700MHz to 3000MHz
? RFFE serial control interface
? Compact 2.4mm x 2.4mm in QFN-20 package
? No DC blocking capacitors required (unless
external DC is applied to the RF ports)

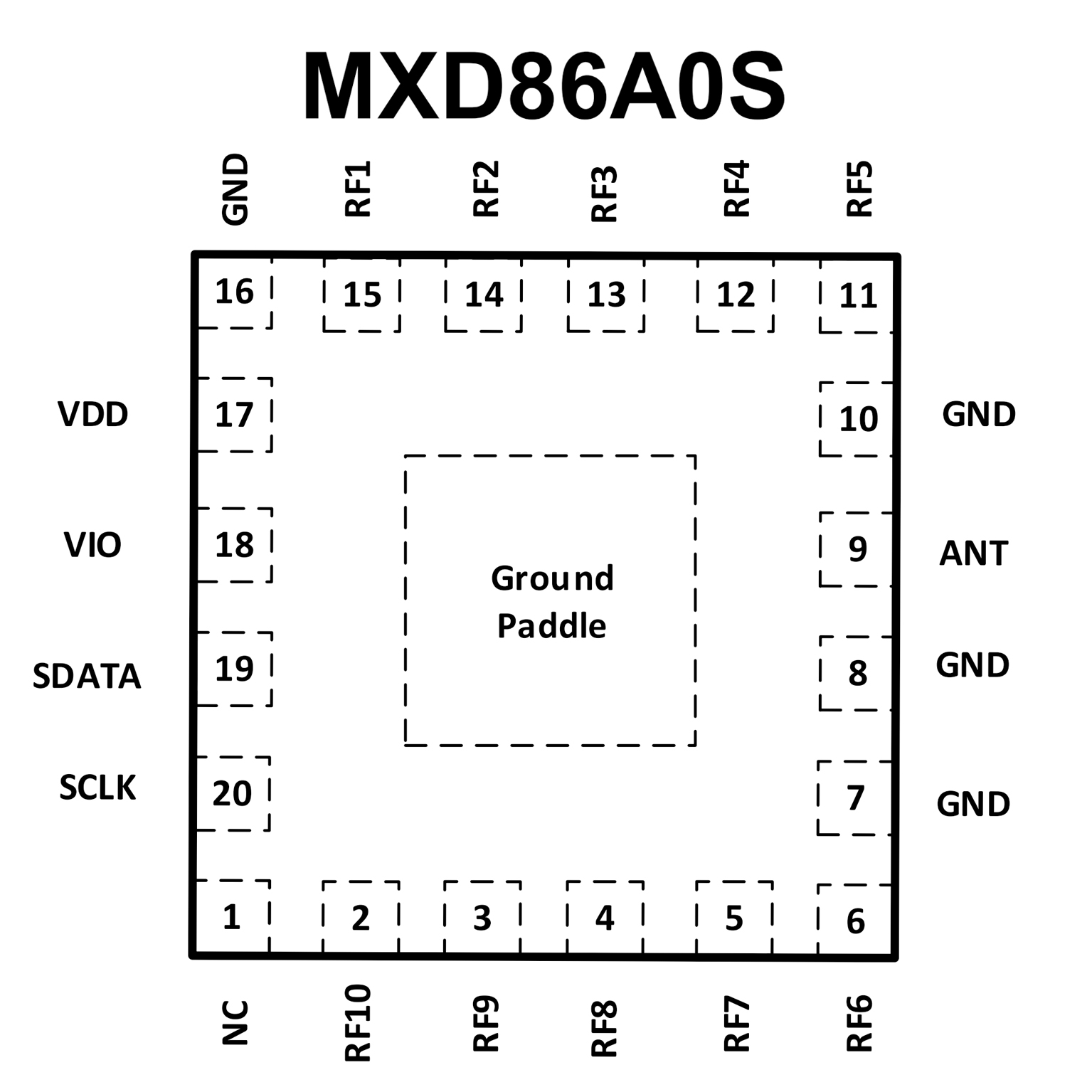

PIN CONFIGUTION
