? Rail-to-Rail Input and Output

? Input Offset Voltage: 4mV (MAX)

? High Gain-Bandwidth Product: 11MHz

? High Slew Rate: 8.5V/μs

? Settling Time to 0.1% with 2V Step: 0.21μs

? Overload Recovery Time: 0.6μs

? Low Noise: 8.5nV/√Hz at 10kHz

? Supply Voltage Range: 2.1V to 5.5V

? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

? Low Power:

  SGM722: 1.1mA/Amplifier (TYP)

? -40℃ to +125℃ Operating Temperature Range

? Small Packaging:

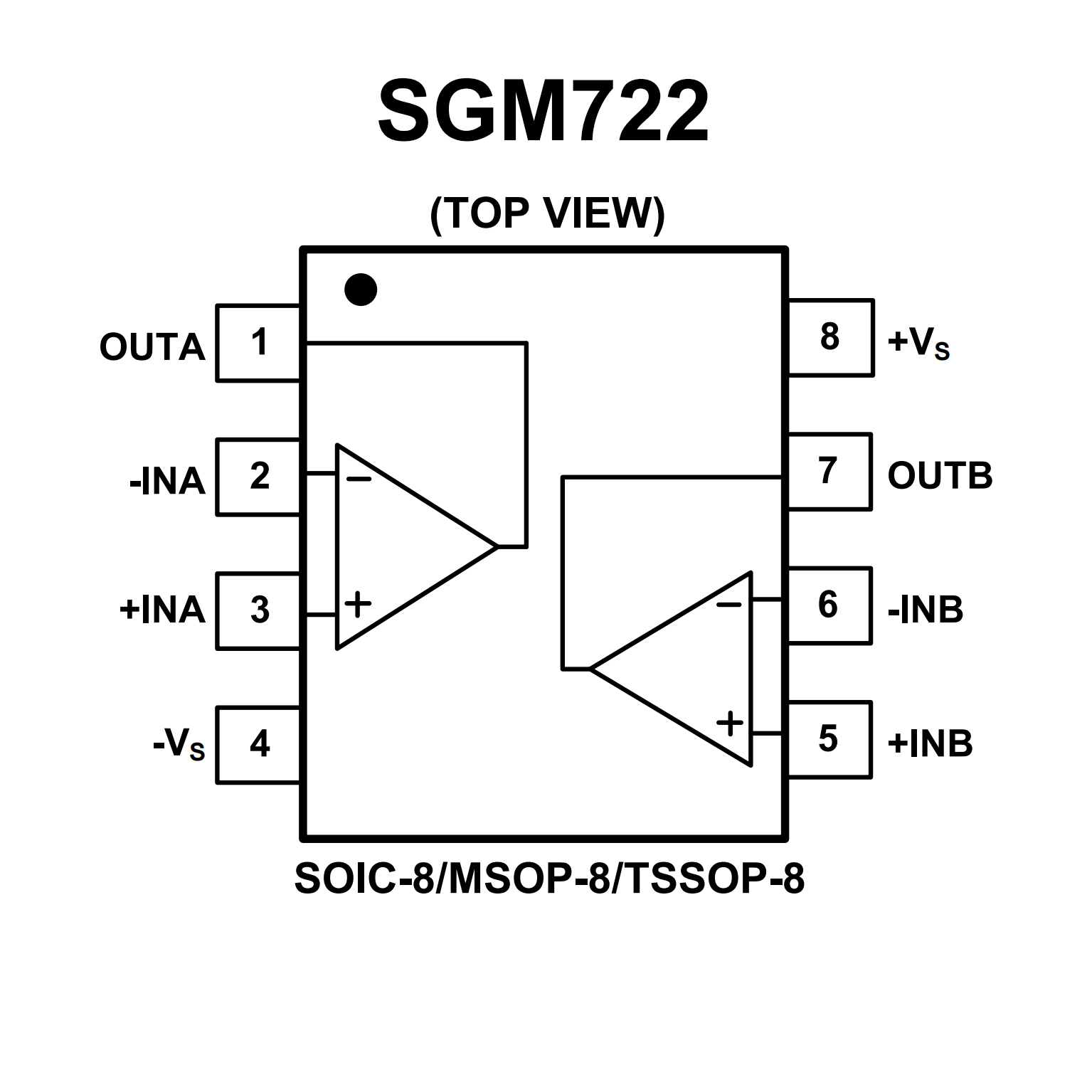

  SGM722 Available in Green MSOP-8, SOIC-8 and

  TSSOP-8 Packages
