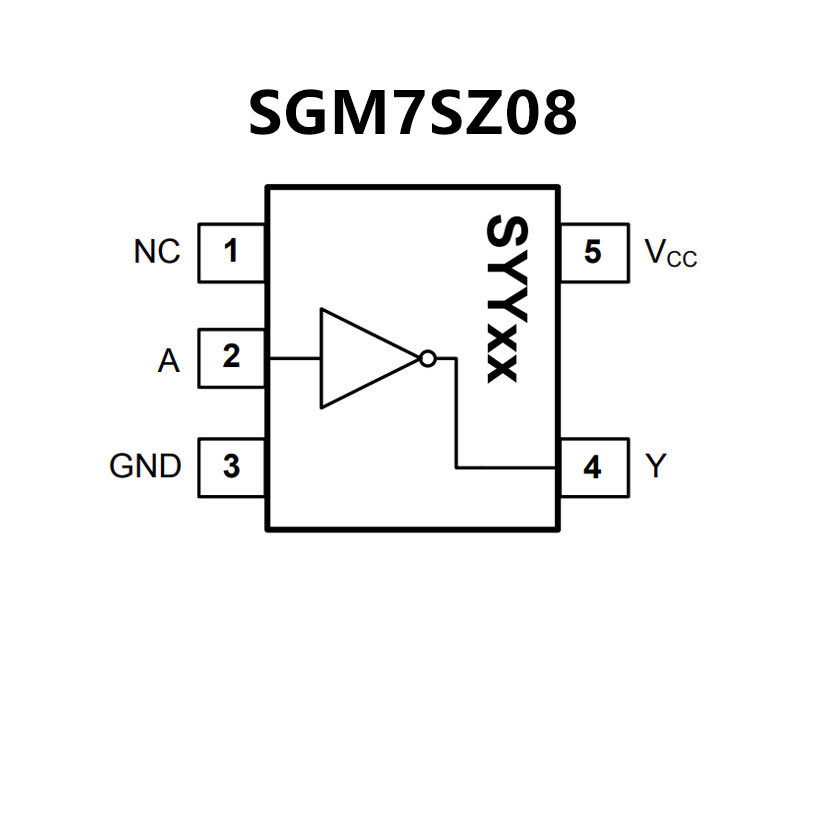

SGM7SZ08.pdf? Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at
VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3VTranslation
? Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L
and UTDFN-1.45×1-6L Packages

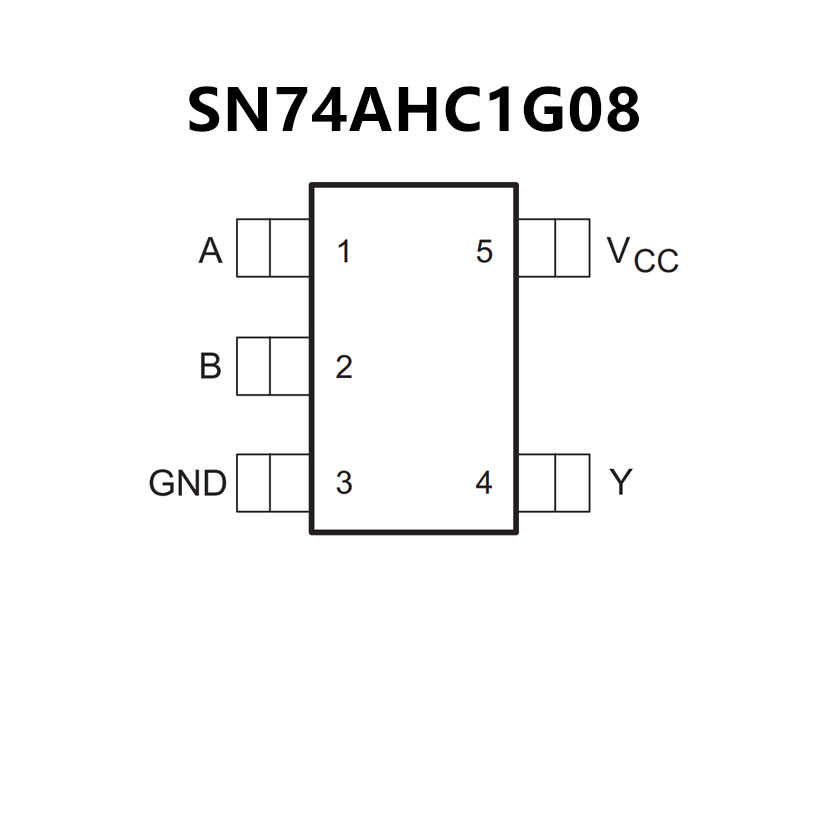

? Operating Range 2 V to 5.5 V
? Maximum tpd of 7 ns at 5 V
? Low Power Consumption, 10-μA Maximum ICC
? ±8-mA Output Drive at 5 V
? Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
? Latch-Up Performance Exceeds 250 mA Per
JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
