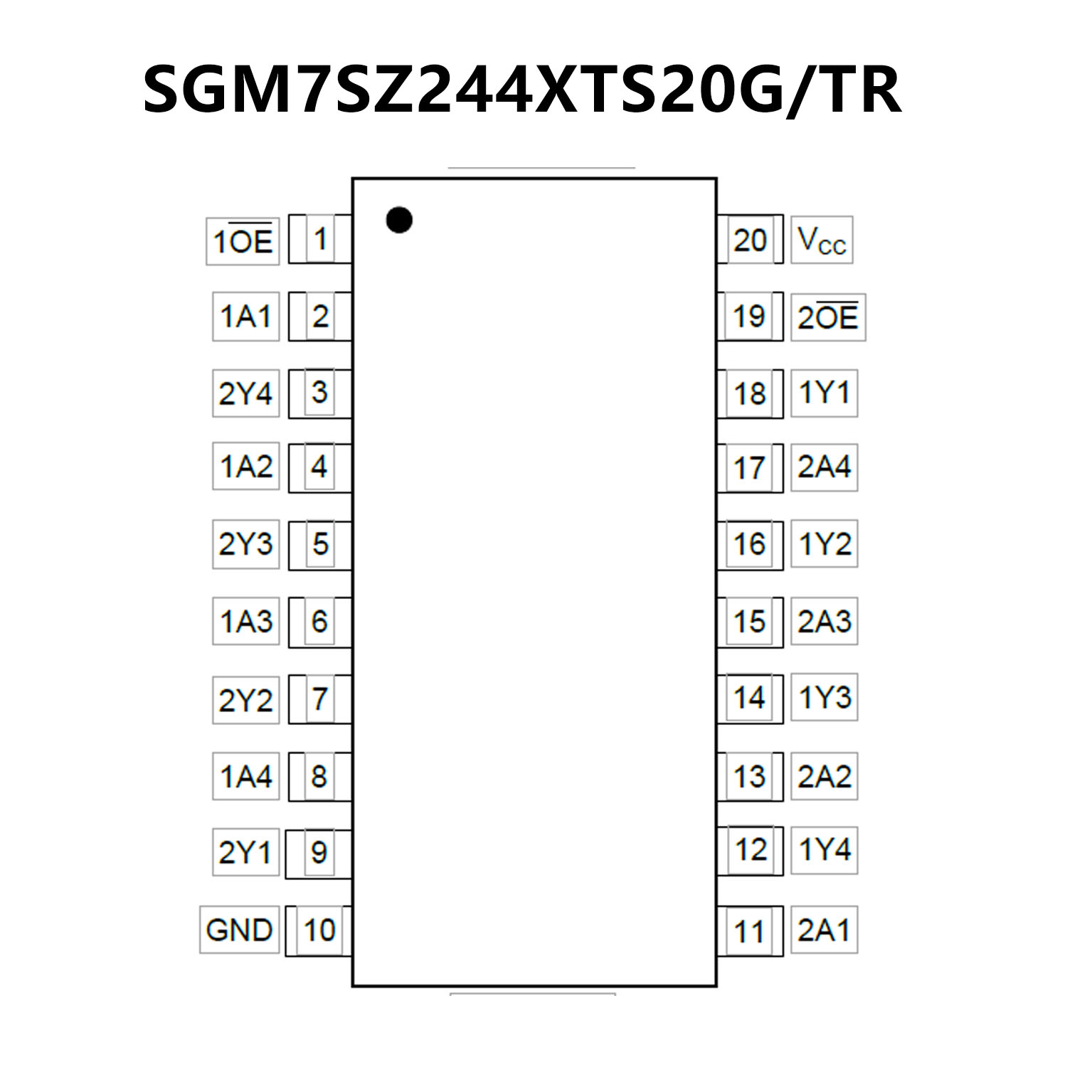

SGM7SZ244.pdf? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current Outputs Drive Up to 15 LSTTL
Loads
? 3-State Outputs Drive Bus Lines or Buffer
Memory Address Registers
? Low Power Consumption, ICC: 25μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package
? AEC-Q100 (Rev. H) (Note 1)

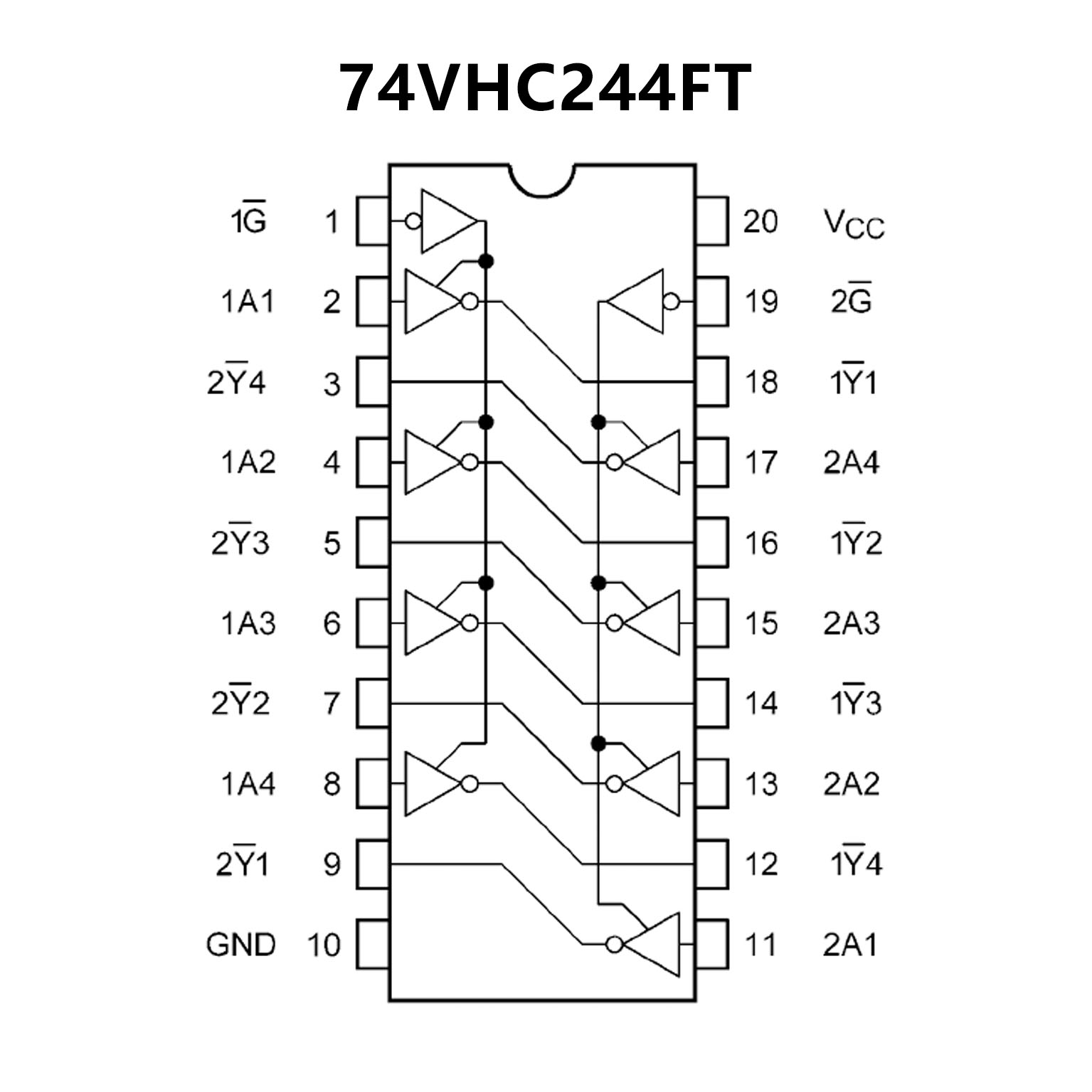

? Wide operating temperature range: Topr = -40 to 125℃
? High speed: tpd = 3.9 ns (typ.) at VCC = 5 V
? Low power dissipation: ICC = 4.0
?A (max) at Ta = 25℃
? High noise immunity: VNIH = VNIL = 28 % VCC (min)
? Power down protection is provided on all inputs.
? Balanced propagation delays: tPLH≈ tPHL
? Wide operating voltage range: VCC(opr) = 2.0 V to 5.5 V
? Low noise: VOLP = 0.8 V (max)
? Pin and function compatible with the 74 series
(AC/HC/AHC/LV etc.) 240 or 244 type.
