High Speed Operational Amplifier, SGM80582 Replace OPA2354.
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
? Unity-Gain Bandwidth: 220MHz
? Wide Bandwidth: 100MHz GBP
? High Slew Rate: 160V/μs
? Low Noise: 7nV/ Hz at 1MHz
? Rail-to-Rail Input and Output
? High Output Current: 150mA (TYP)
? Excellent Video Performance:
– Diff Gain: 0.01%, Diff Phase: 0.1°
– 0.1dB Gain Flatness: 30MHz
? Low Input Bias Current: 2pA
? Quiescent Current: 4.5mA/Amplifier
? Thermal Shutdown
? 2.5V to 5.5V Single Supplies
? -40℃ to +125℃ Operating Temperature
? SOT-23-5 and SOIC-8 Packages

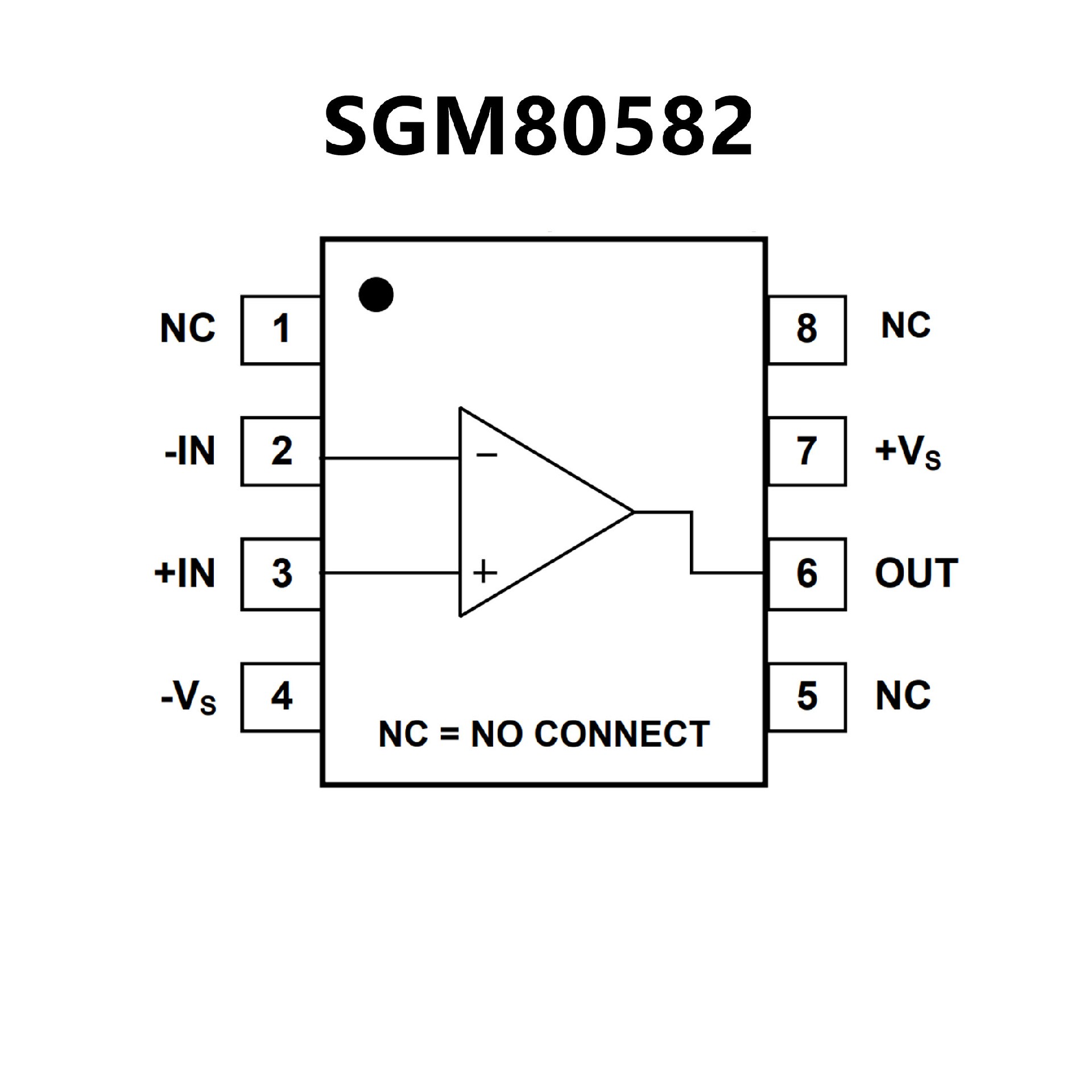

PIN CONFIGUTION
优势替代
FEATURES
? Unity-Gain Bandwidth: 250MHz
? Wide Bandwidth: 100MHz GBW
? High Slew Rate: 150V/?s
? Low Noise: 6.5nV√Hz
? Rail-to-Rail I/O
? High Output Current: > 100 mA
? Excellent Video Performance:
– Differential Gain:0.02%
– 0.1-dB Gain Flatness: 40 MHz
? Low Input Bias Current: 3 pA
? Quiescent Current: 4.9 mA
? Thermal Shutdown
? Supply Range: 2.5V to 5.5V

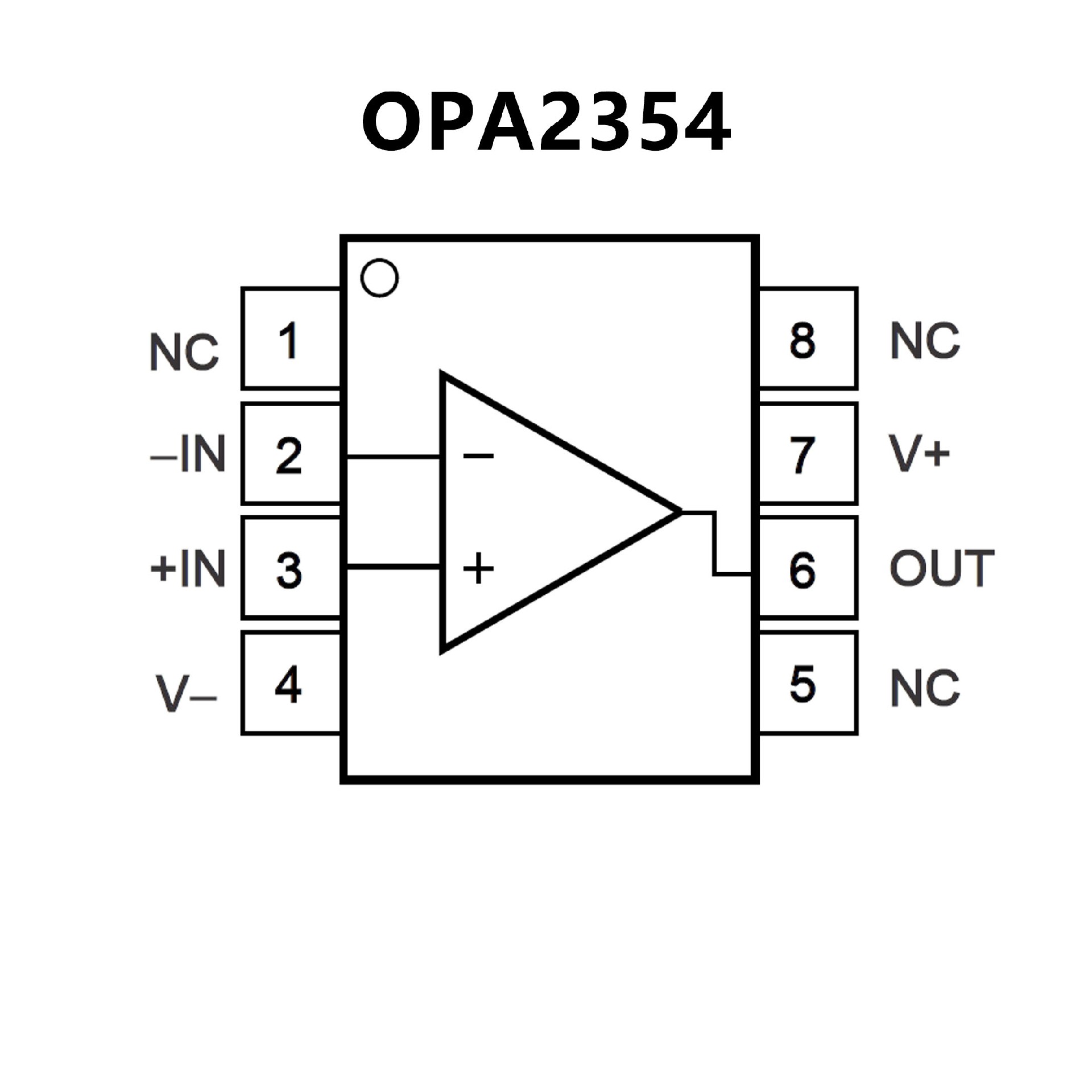

PIN CONFIGUTION
