SGM810-ZXN3LTR.pdf? Precision Voltage Monitor: 3V, 3.3V and 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 300nA (TYP)
? Reset Assertion Down to 1V VCC
? 150ms Power-On Reset (MIN) Open-Drain nRESET
Output (SGM803B) Push-Pull nRESET Output
(SGM809B) Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging

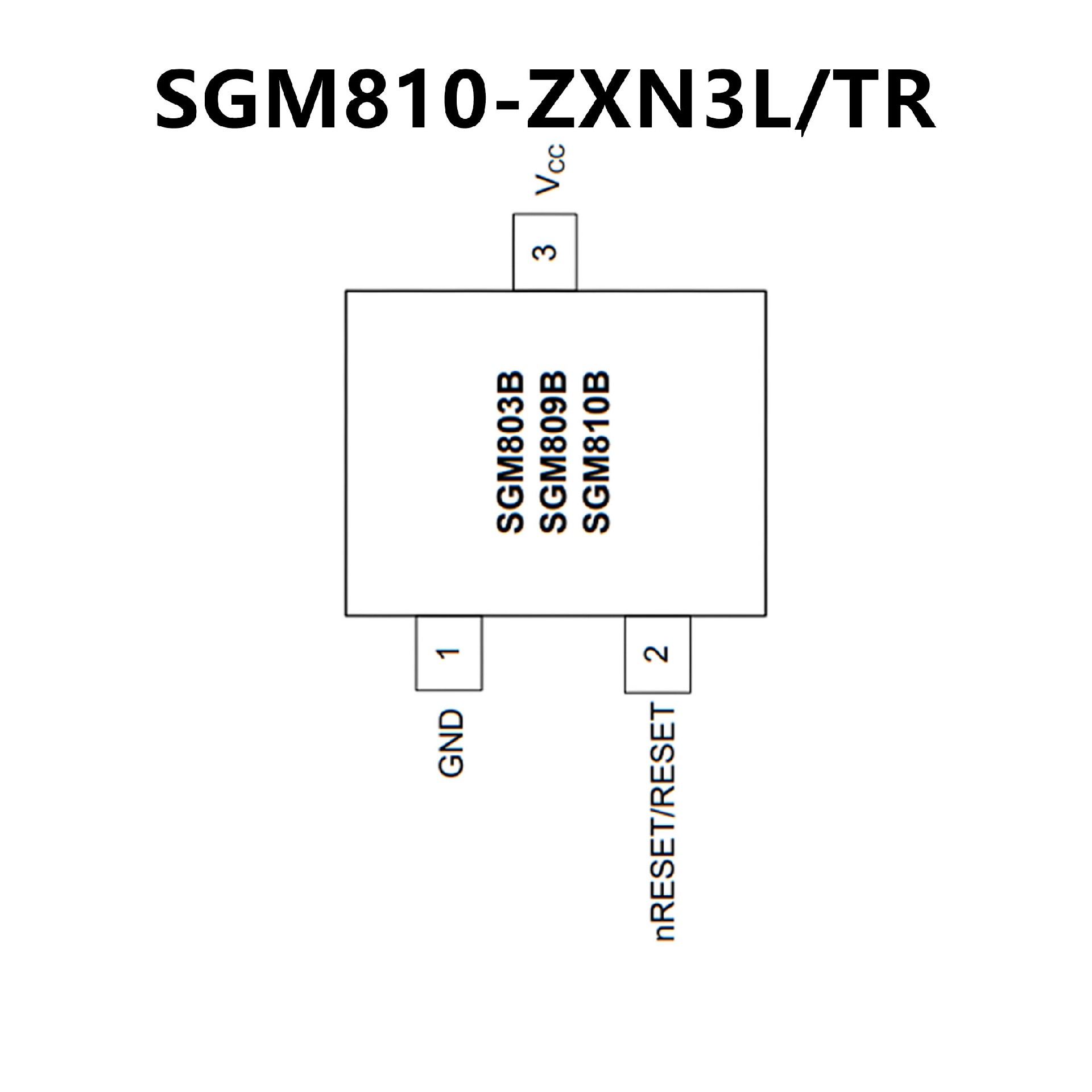

SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23
? High accuracy detection
? Ultra-low current consumption
? Two output types
(Nch open drain and CMOS output)
? Wide Operating temperature range
? Very small and low height package
? Package SSOP5 is similar to SOT-23-5 (JEDEC)
? Package SSOP3 is similar to SOT-23-3 (JEDEC)
