Nano Power Operational Amplifier ,Replace, Replace LPV811
SGM8141
SGM8141.pdf
SGM8141.pdfFEATURES
? Low Quiescent Current: 380nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and
MSOP-8 Packages

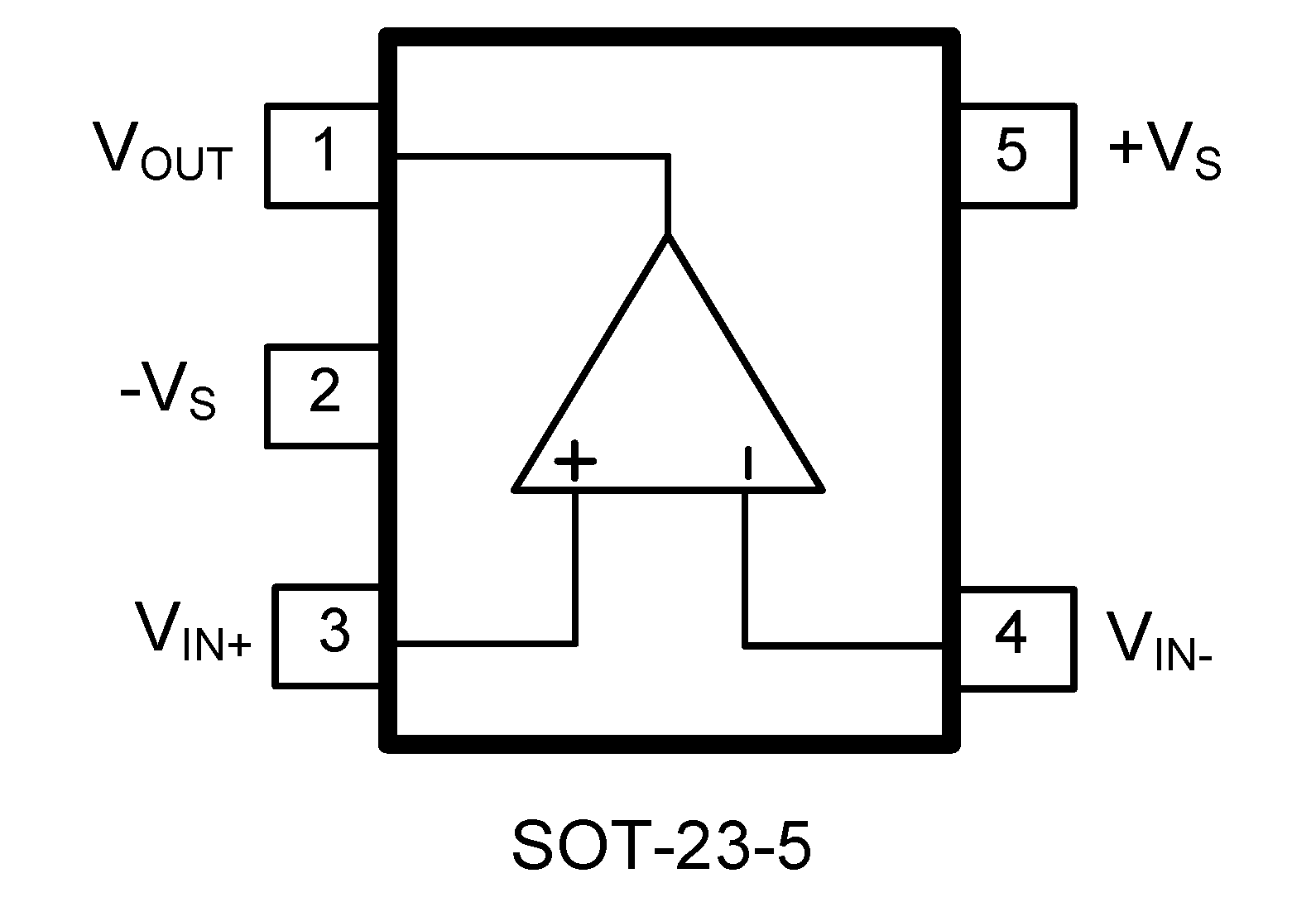

PIN CONFIGUTION
优势替代
FEATURES
? Nanopower Supply Current: 425nA/channel
? Offset Voltage: 300μV (max)
? Good TcVos: 1.5μV/°C
? Gain-Bandwidth: 8 kHz
? Unity-Gain Stable
? Low Input Bias Current : 100fA
? Wide Supply Range: 1.6V to 5.5V
? Rail-to-Rail Output
? No Output Reversals
? EMI Protection

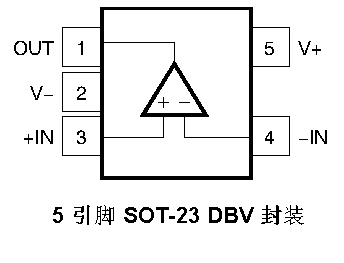

PIN CONFIGUTION
