High-side Measurement Current Shunt Monitor, SGM8198 Replace INA138NA.
SGM8198
SGM8198.pdf
SGM8198.pdfFEATURES
? Unipolar High-side Current Measurement Circuit
? Wide Supply Voltage Range: 2.7V to 36V
? Wide Input Common Mode Voltage Range: 2.7Vto 36V
? Single Resistor Gain Set
? Low Quiescent Current: 65μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

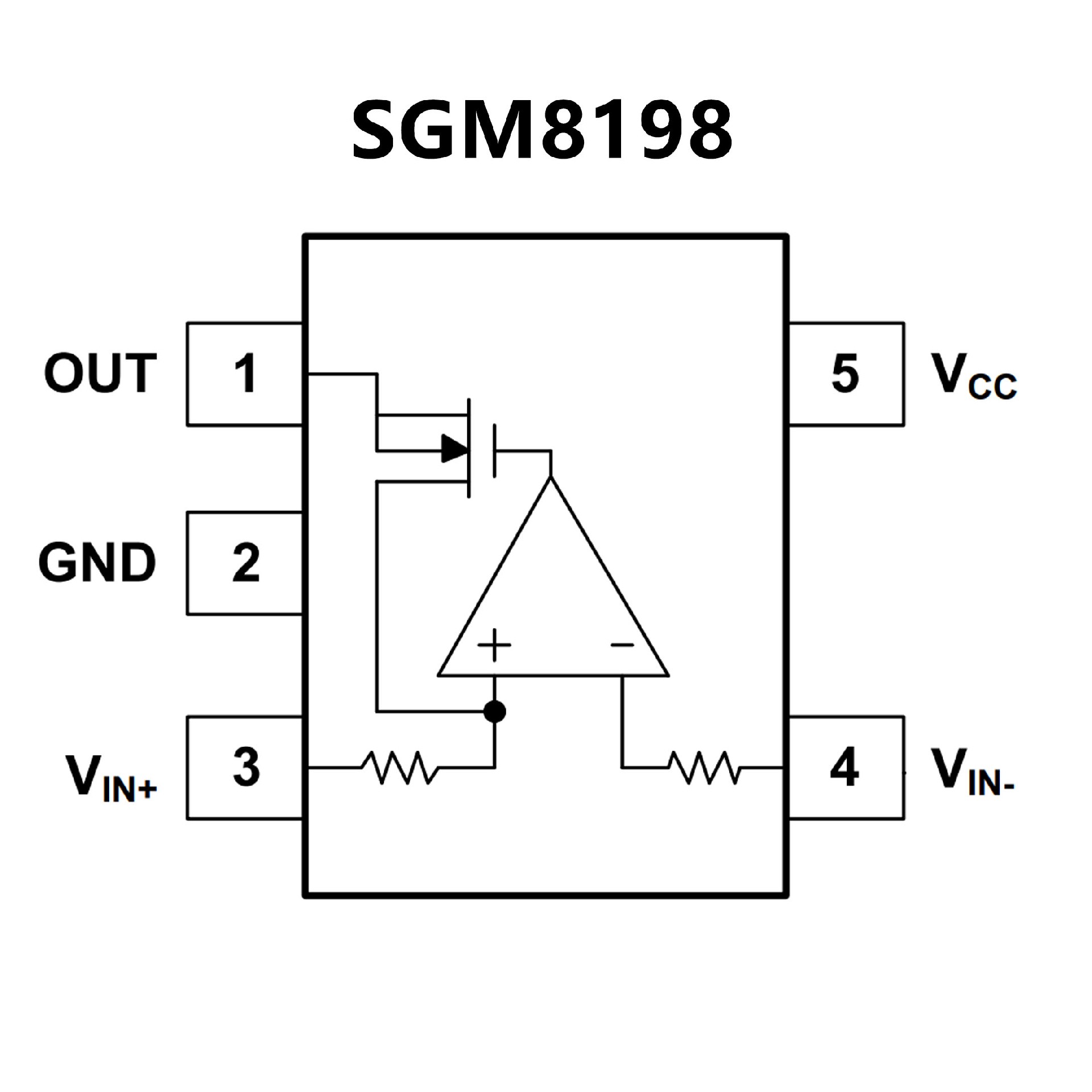

PIN CONFIGUTION
优势替代
FEATURES
? Complete Unipolar High-Side Current
Measurement Circuit
? Wide Supply and Common-Mode Range
? INA138: 2.7 V to 36 V
? INA168: 2.7 V to 60 V
? Independent Supply and Input Common-Mode
Voltages
? Single Resistor Gain Set
? Low Quiescent Current (25 μA Typical)
? Wide Temperature Range: –40°C to +125°C
? 5-Pin SOT-23 Package
PIN CONFIGUTION
