? Low 0.1Hz to 10Hz Noise: 3μVP-P

? Wide Supply Voltage Range: 3.3V to 24V

? Low Power Consumption: 50μA/Amplifier (TYP)

? Low Offset Voltage: 1mV (MAX)

? Input Voltage Noise Density: 25nV/ Hz at 1kHz

? Slew Rate: 0.3V/μs

? Rail-to-Rail Input and Output

? High DC Precision:

  CMRR: 115dB

  PSRR: 120dB

  AOL: 120dB

? -40℃ to +125℃ Operating Temperature Range

? Small Packaging:

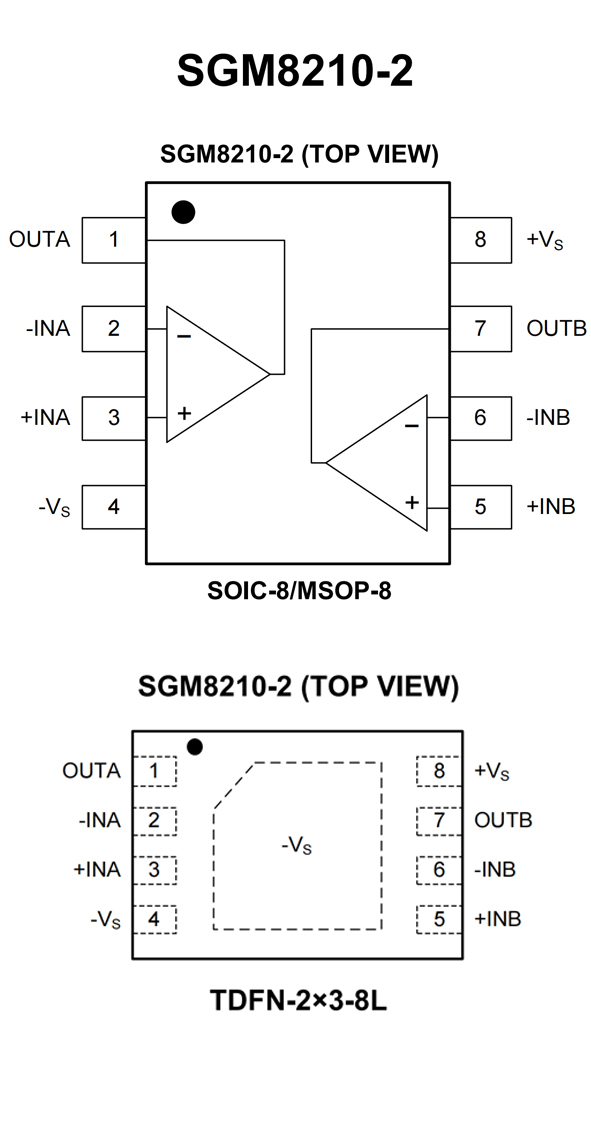

  SGM8210-2 Available in Green SOIC-8, MSOP-8

  and TDFN-2×3-8L Packages
