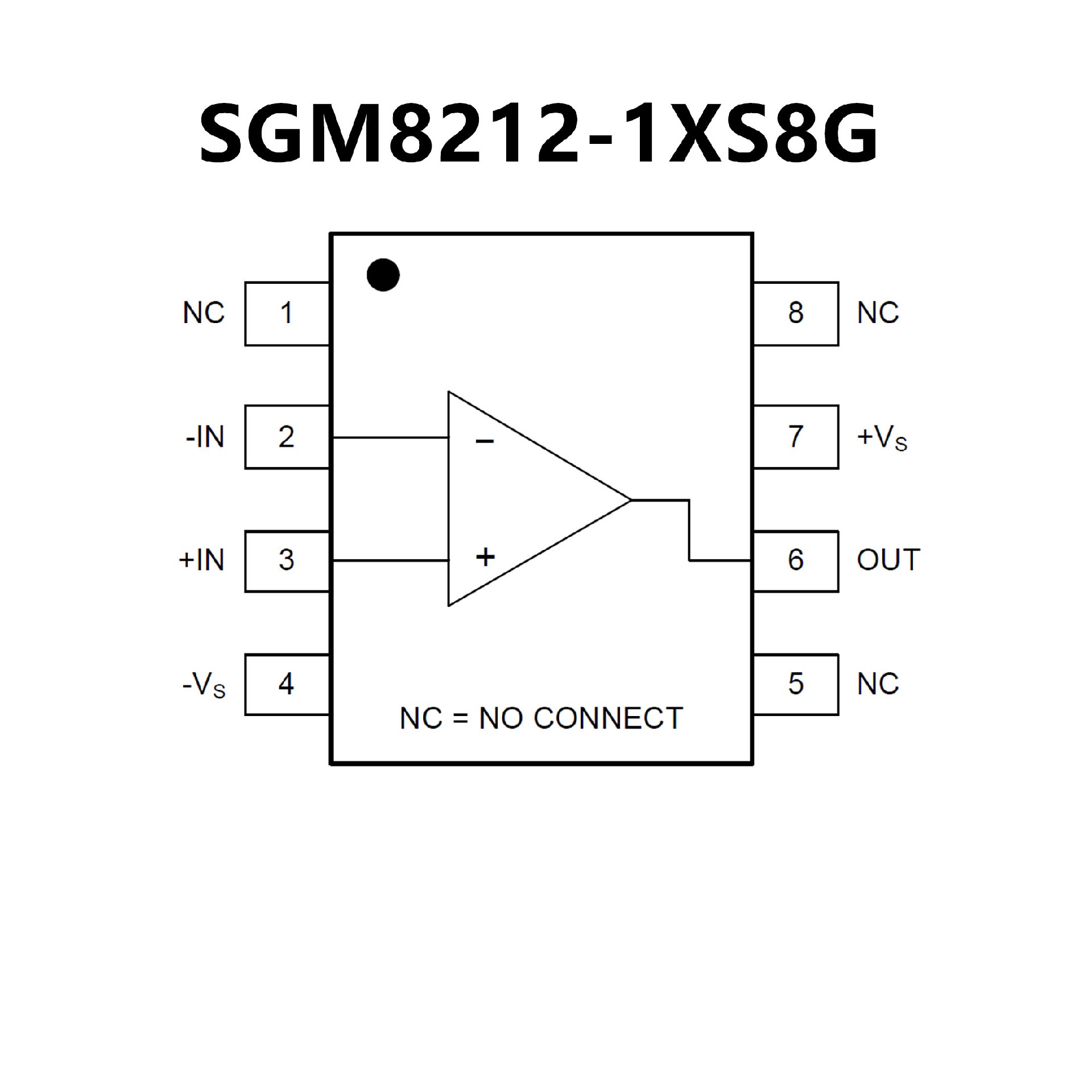

SGM8212-1.pdf? Input Offset Voltage: 1.8mV (MAX)
? Low Input Bias Current: 5pA (TYP)
? High CMRR: 98dB (TYP)
? Unity-Gain Stable
? Gain-Bandwidth Product: 2.5MHz
? Phase Margin: 60° for G = 1 and CL = 10pF
? Low Noise: 15nV/√Hz at 1kHz
? Rail-to-Rail Input and Output
? Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
? Low Quiescent Current: 475μA/Amplifier
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8212-1 Available in Green SOT-553-5,
SOT-23-5and SOIC-8 Packages
SGM8212-2 Available in Green SOIC-8
andTDFN-3×3-8L Packages

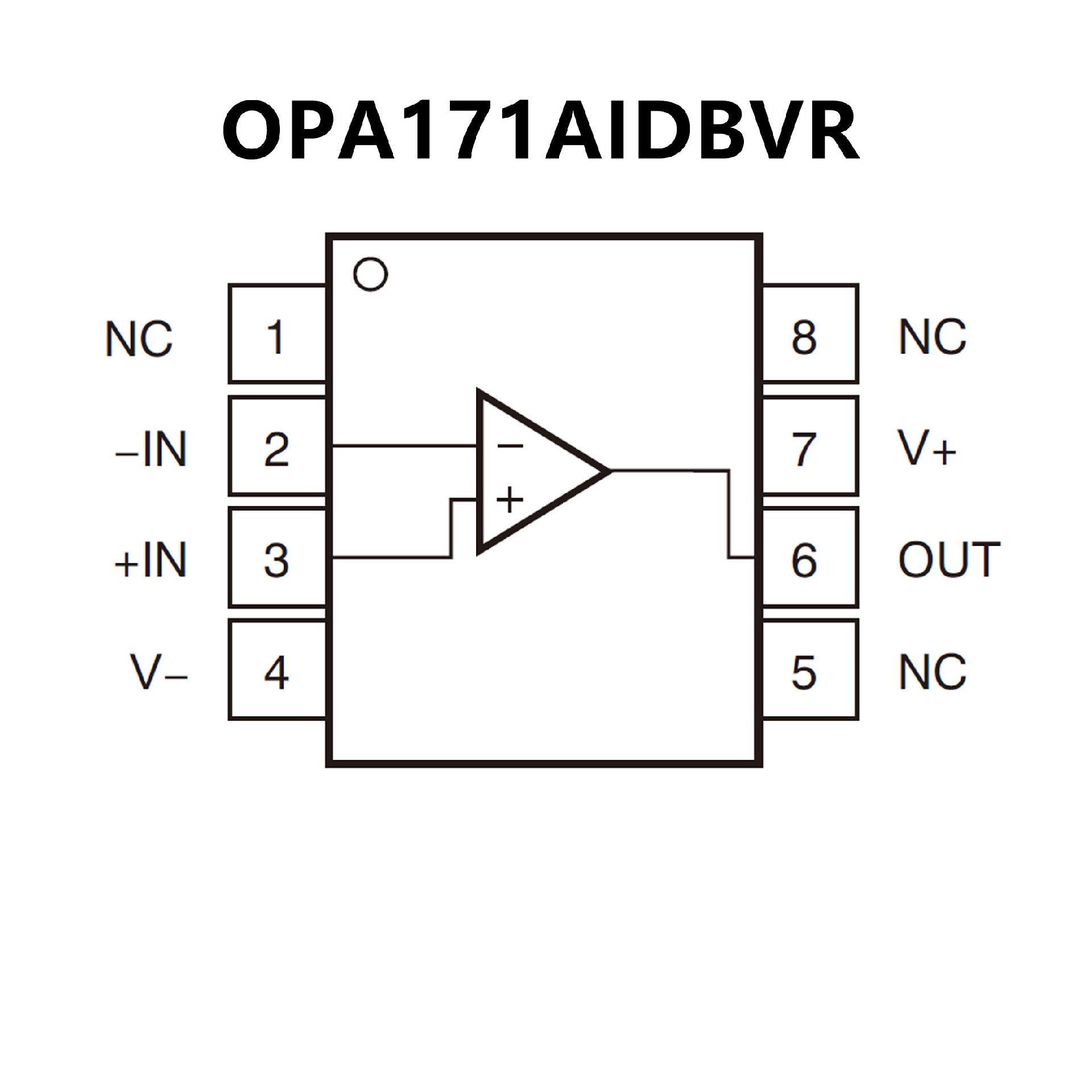

? 电源范围:+2.7V至+36V，土1.35V至±18V
? 低噪声:14 nV/Hz
? 低偏移漂移:0.3uVI°C(典型值)
? 已过滤的射频干扰(RFI)输入
? 输入范围包括负电源
? 输入范围运行至正电源轨至轨输出
? 增益带宽:3MHz
? 低静态电流:每个放大器475uA高共模抑制:120dB（典型值)
? 低输入偏压电流:8pA
? 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
- 8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TSSOP)
? 封装微型封装:
-sOT553封装内为单通道
- vssOP-8封装内为双通道
