3-Rail Power Sequencer with Programmable Timing, SGM822 Replace LM3881.
SGM822
SGM822.pdf
SGM822.pdfFEATURES
? Up to 3-Rail Power Sequence Control
? Low Quiescent Current: 36μA (TYP)
? Input Voltage Range: 2.7V to 5.5V
? Pin-Selected Flag Output Logic
? Capacitor-Programmable
Power-Up/Power-DownSequencing Delay
? Available in a Green MSOP-8 Package

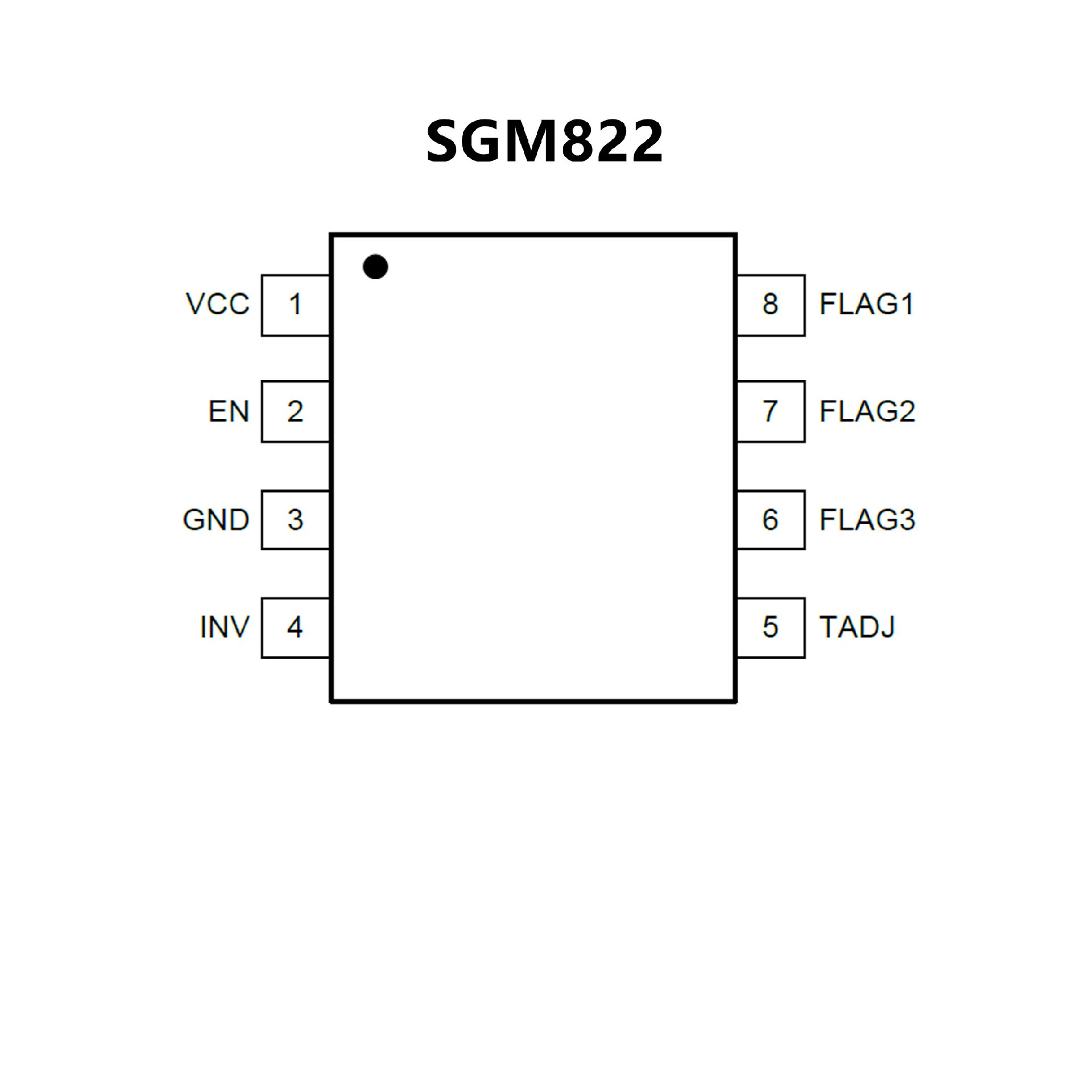

PIN CONFIGUTION
优势替代
FEATURES
? Easiest Method to Sequence Rails
? Power-Up and Power-Down Control
? Tiny Footprint
? Low Quiescent Current of 80 ?A
? Input Voltage Range of 2.7 V to 5.5 V
? Output Invert Feature
? Timing Controlled by Small Value External Capacitor

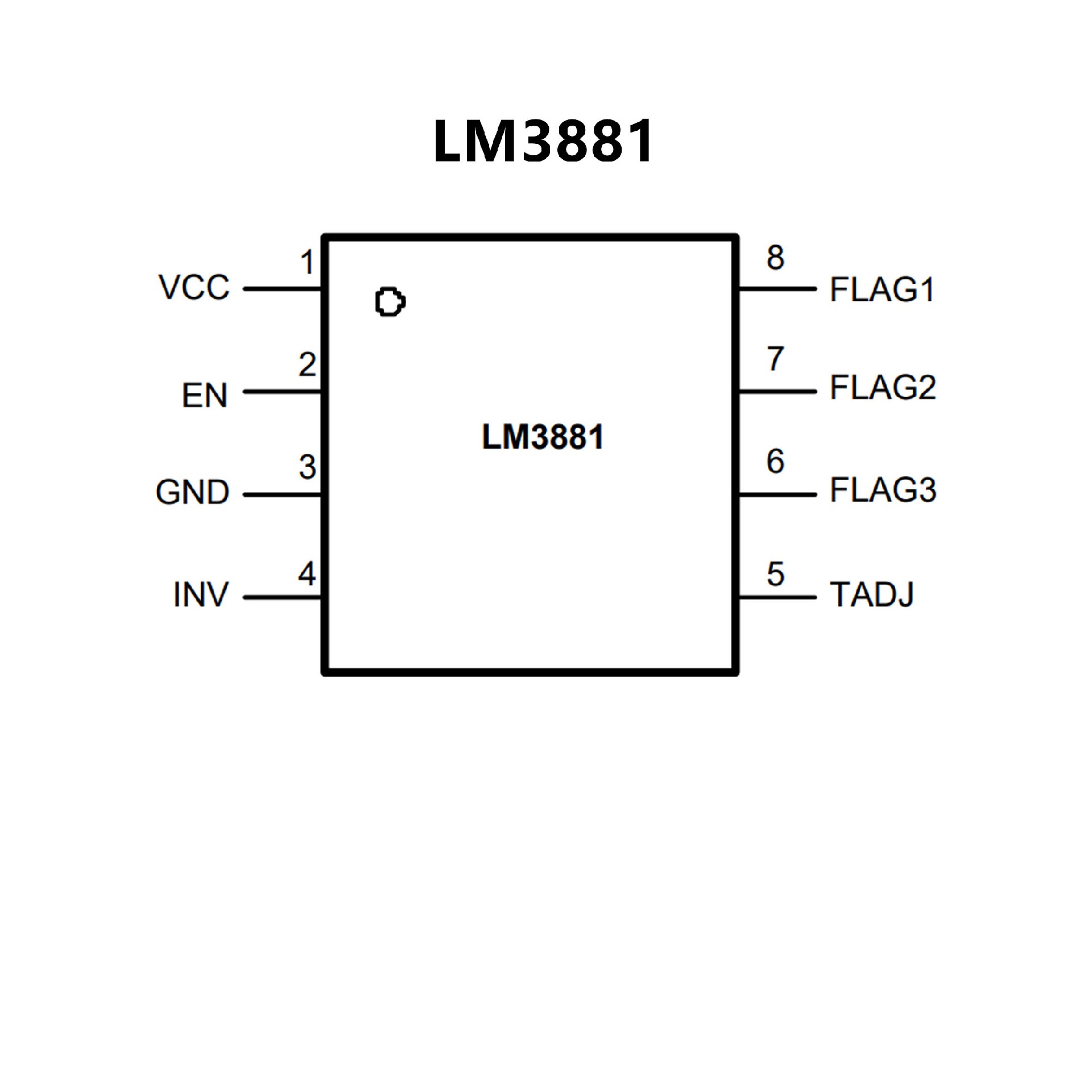

PIN CONFIGUTION
