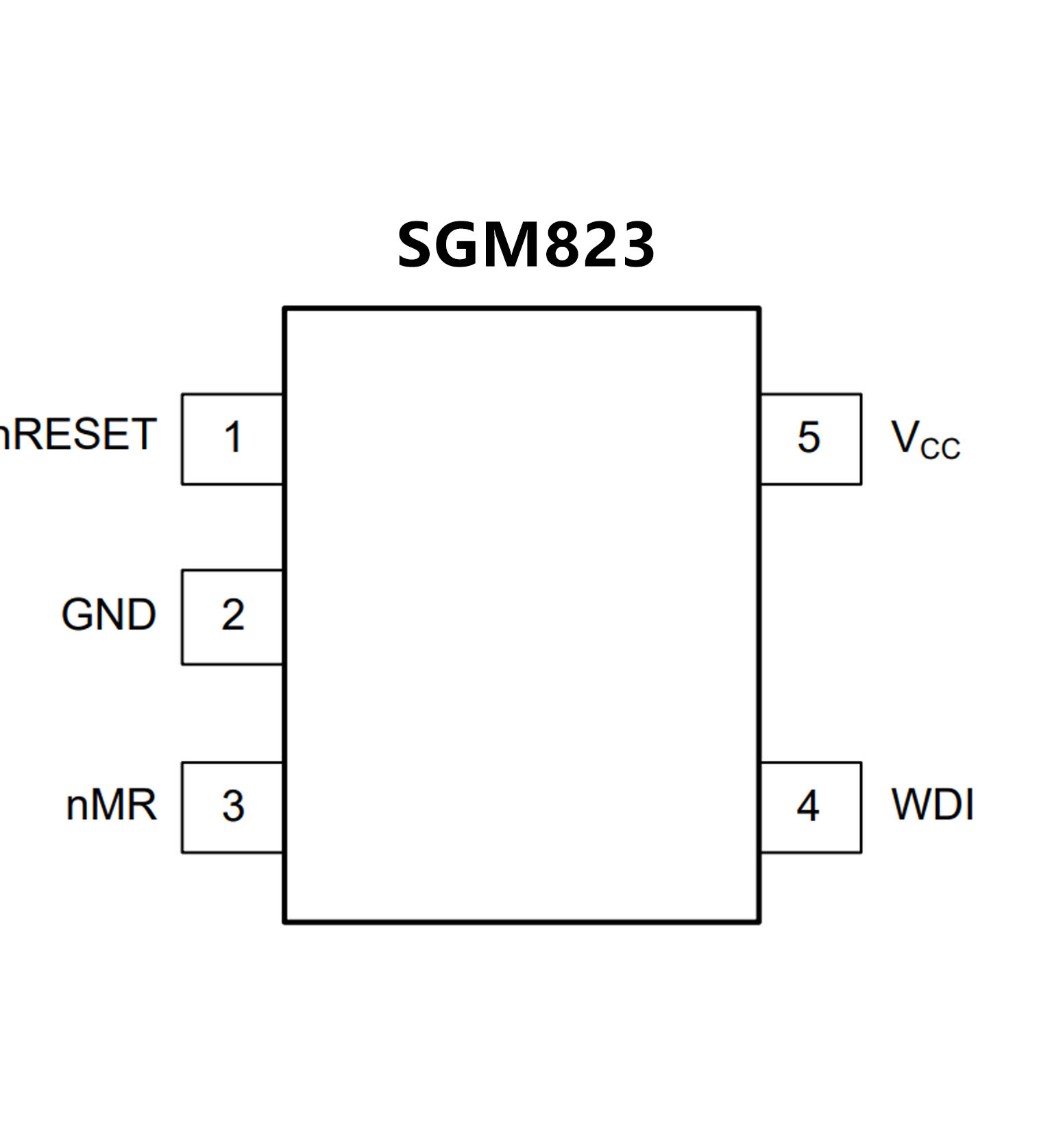

SGM823.pdf? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM823-L
3.08V for SGM823-T
2.93V for SGM823-S
2.63V for SGM823-R
? Push-Pull nRESET Output
? Guaranteed nRESET Valid at VCC = 1V
? Fully Specified over Temperature
? 200ms Reset Pulse Width
? Power-Supply Transient Immunity
? Watchdog Timer with 1.6s Timeout
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? No External Components
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

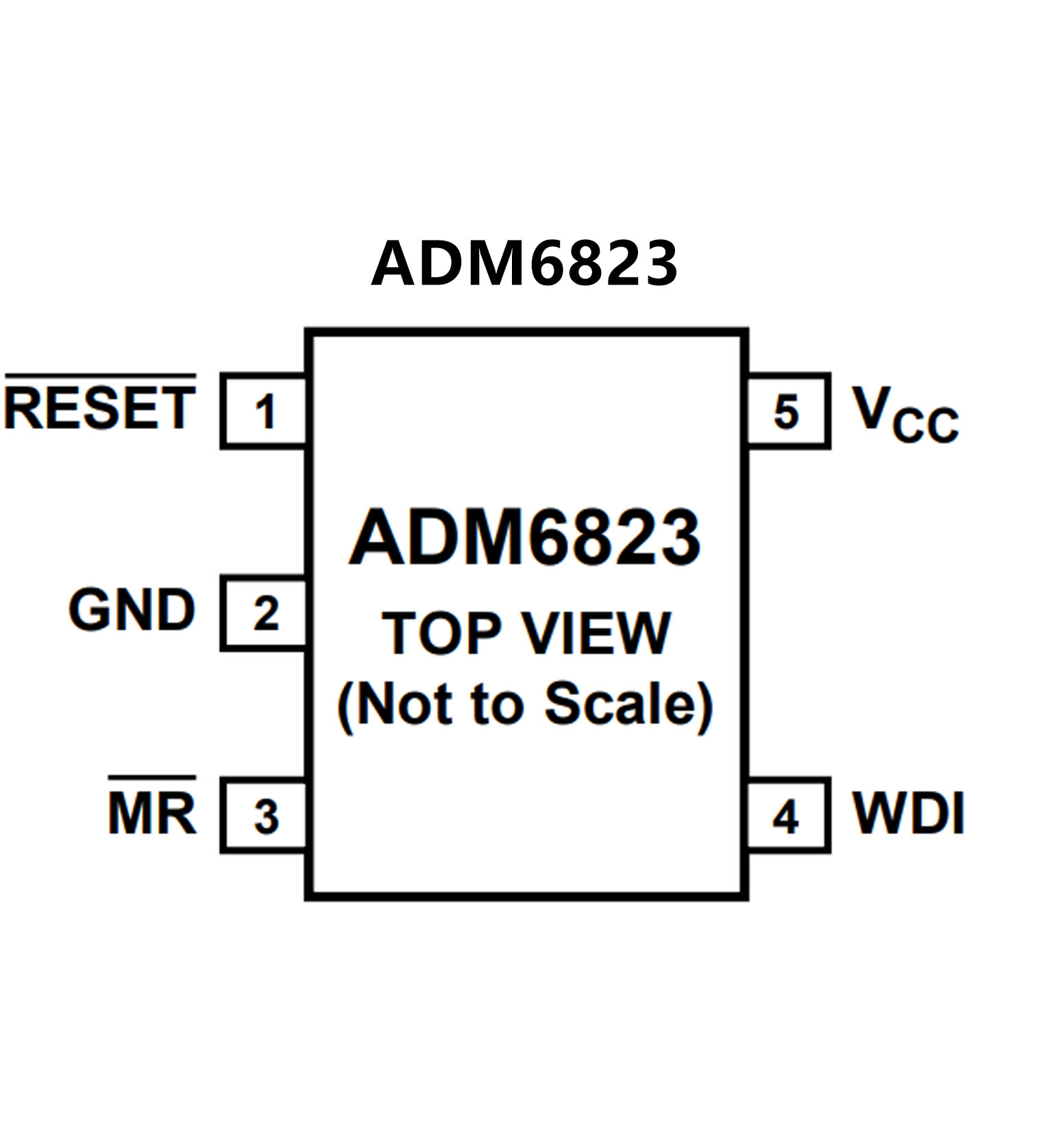

? Precision low voltage monitoring
? 9 reset threshold options: 1.58V to 4.63 V (typical)
? 140 ms (minimum) reset timeout
? Watchdog timer with 1.6 sec timeout (typical)
? Manual reset input
? Reset output stage Push-pull active-low
? Low power consumption: 7 ?A (typical)
? Guaranteed reset output valid to VCC = 1 V
? Power supply glitch immunity
? Specified from ?40°C to +125°C
? 5-lead SOT-23 package
