8MHz,High Voltage,High Precision,Low Noise,Rail-to-Rail Output Operational Amplifier,SGM8249-4 Replace OPA4171.
SGM8249-4XTS14G
SGM8249-4XTS14G.pdf
SGM8249-4XTS14G.pdfFEATURES
? Low Offset Voltage: 2μV (TYP), 12μV (MAX)
? Rail-to-Rail Output Swing
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 140dB (TYP)
? Input Voltage Noise Density: 12nV/Hz at 1kHz
? Gain-Bandwidth Product: 8MHz
? Low Supply Current: 3.2mA (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
PIN CONFIGUTION
优势替代
FEATURES
? 电源范围:+2.7V 至+36V，1.35V至±18V
? 低噪声:14 nVIHz
? 低偏移漂移:0.3pVI°C(典型值)
? 已过滤的射频干扰(RFI)输入
? 输入范围包括负电源
? 输入范围运行至正电源
? 轨至轨输出
? 增益带宽:3MHz
? 低静态电流:每个放大器475uA
? 高共模抑制:120dB（典型值)
? 低输入偏压电流:8pA
? 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
-8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TsSOP)封装微型封装:
- SOT553封装内为单通道-vssOP-8封装内为双通道

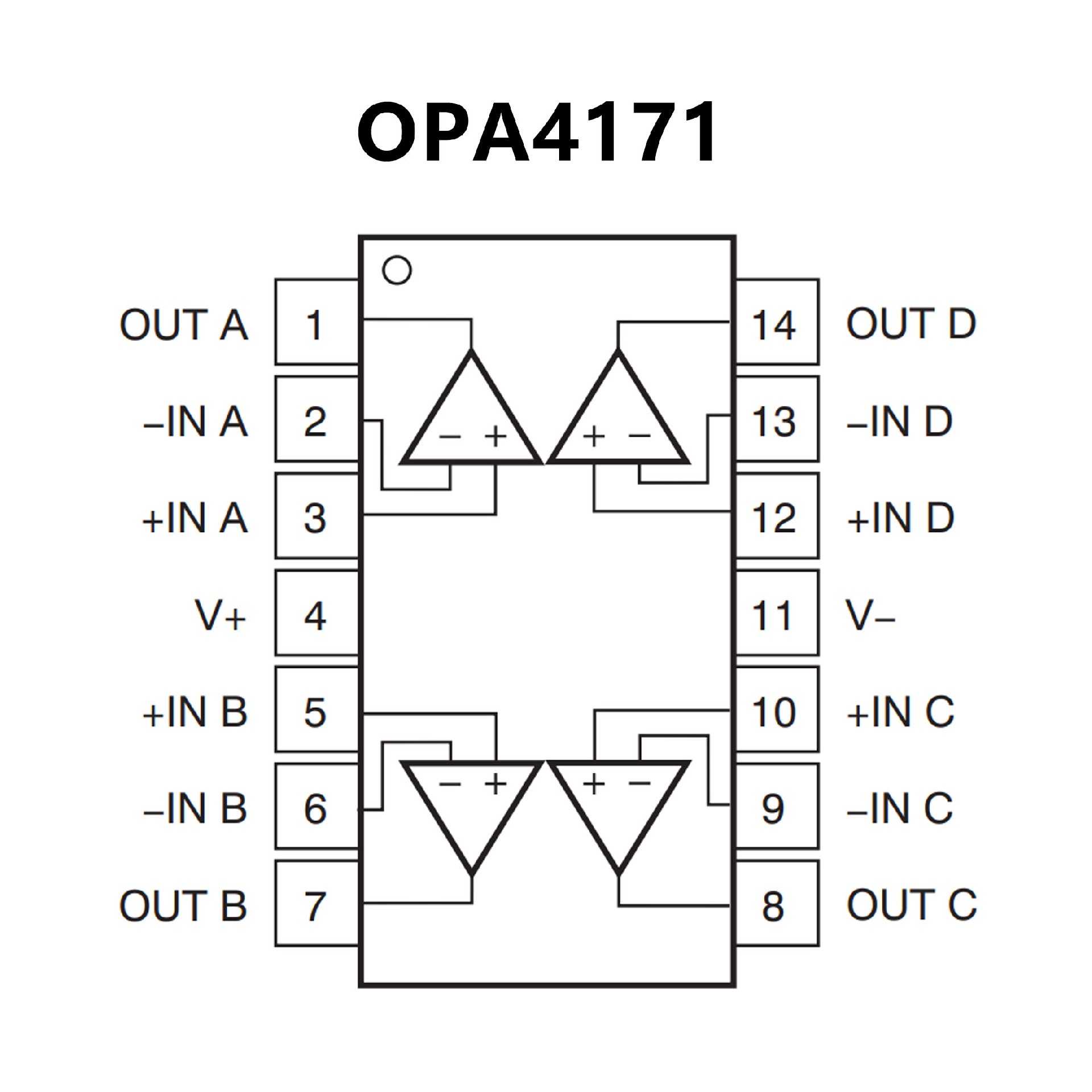

PIN CONFIGUTION
