2.8MHz,High Voltage,High Precision,Low Noise Rail-to-Rail Output Operational Amplifier,SGM8252A Replace OP284.
SGM8252A
SGM8252A.pdf
SGM8252A.pdfFEATURES
? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA/Amplifier (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

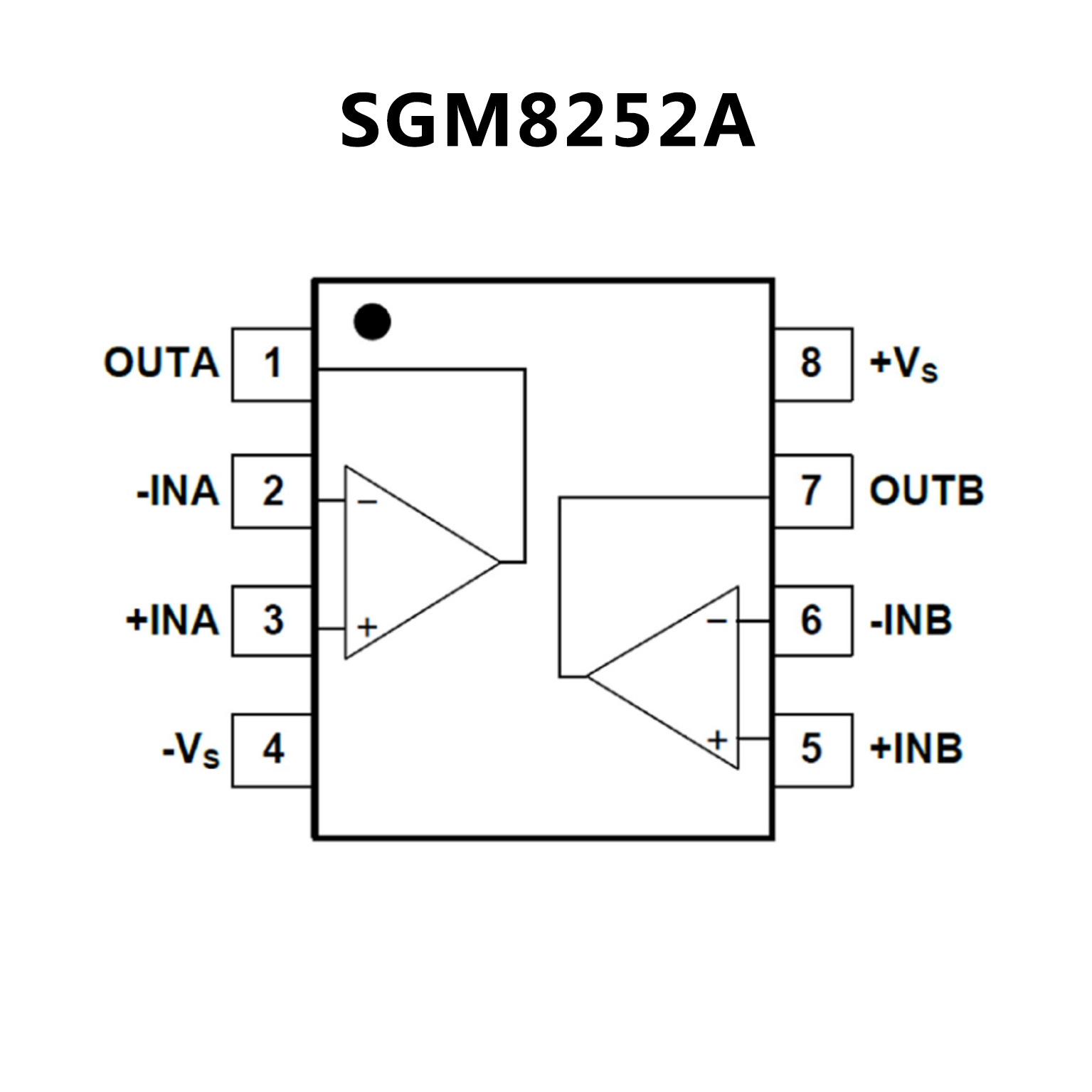

PIN CONFIGUTION
优势替代
FEATURES
? 单电源供电
? 宽带宽：4 MHz
? 低失调电压：65 μV
? 单位增益稳定
? 高压摆率：4.0 V/μs
? 低噪声：3.9 nV/√Hz
? 应用
? 电池供电仪器仪表
? 电源控制和保护
? 电信
? DAC输出放大器
? ADC输入缓冲器
PIN CONFIGUTION
