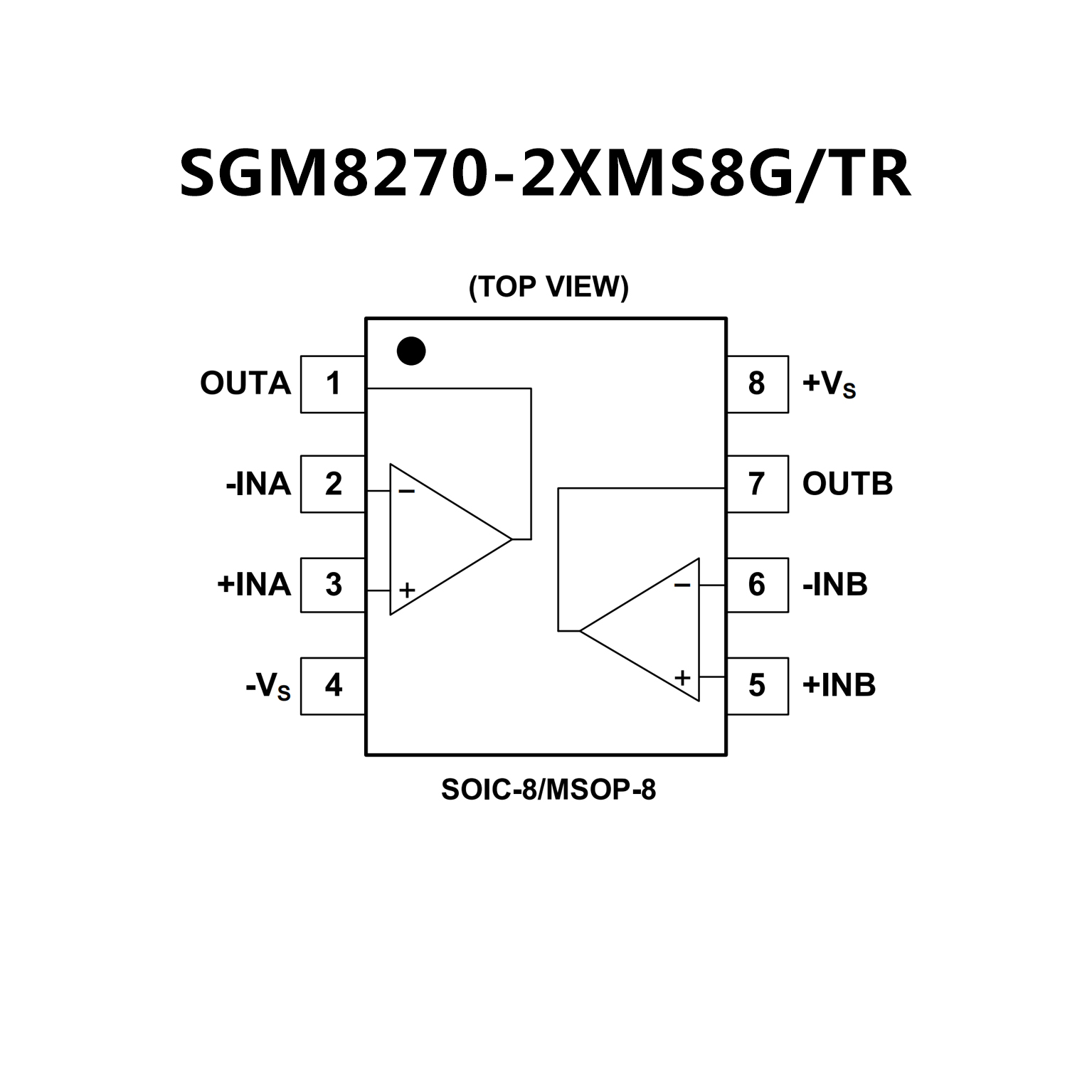

SGM8270-2.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/?s
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

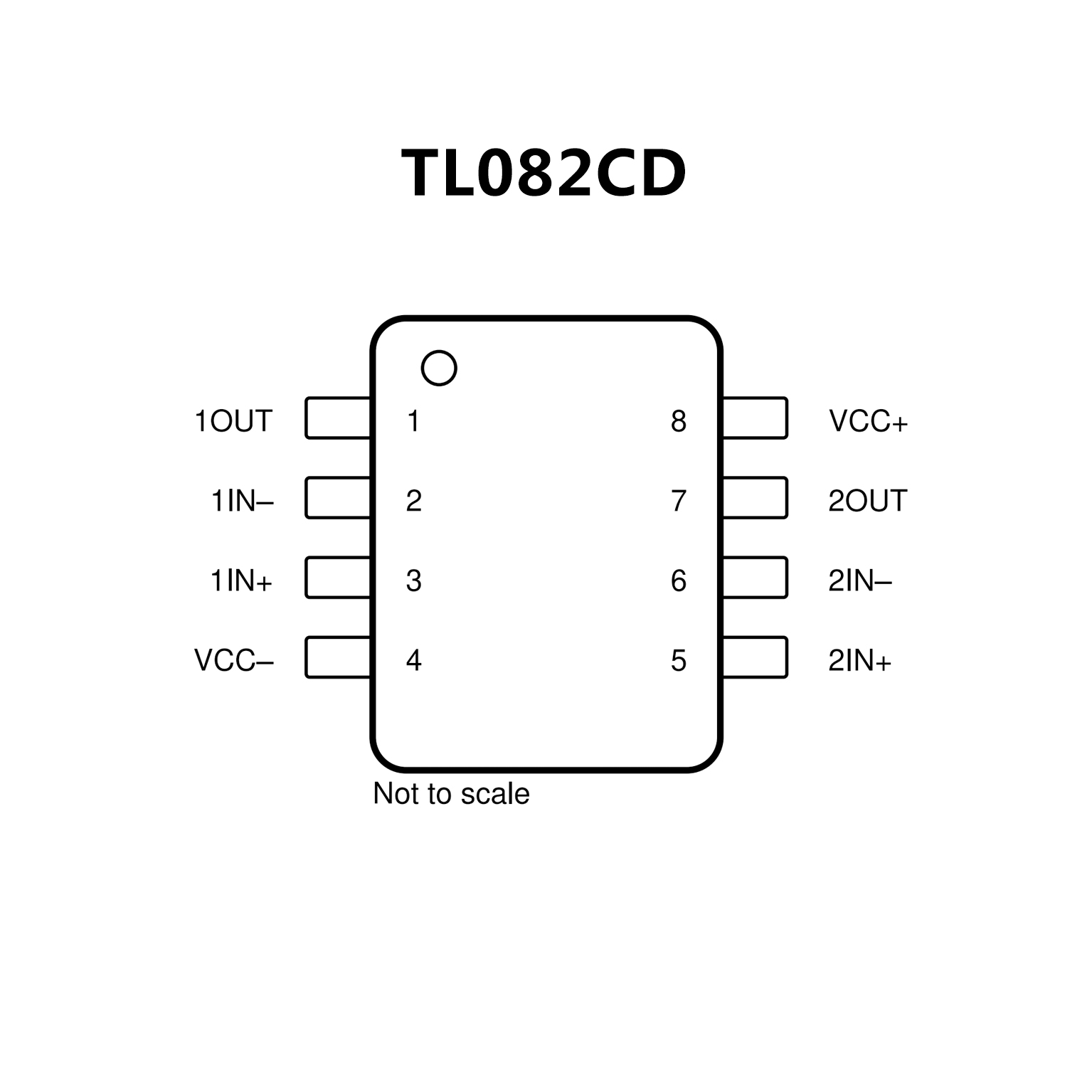

? High slew rate: 20 V/μs (TL08xH, typ)
? Low offset voltage: 1 mV (TL08xH, typ)
? Low offset voltage drift: 2 μV/°C
? Low power consumption: 940 μA/ch (TL08xH, typ)
? Wide common-mode and differential voltage ranges
Common-mode input voltage range includes VCC+
? Low input bias and offset currents
? Low noise:
Vn = 18 nV/√Hz (typ) at f = 1 kHz
? Output short-circuit protection
? Low total harmonic distortion: 0.003% (typ)
? Wide supply voltage:
±2.25 V to ±20 V, 4.5 V to 40 V
