Low Noise,Precision,High Voltage,Rail-to-Rail I/O Operational Amplifier, SGM8270-4 P2P OPA4171AIPWR.
SGM8270-4XTS14G
SGM8270-4XTS14G.pdf
SGM8270-4XTS14G.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1.2mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.2MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
PIN CONFIGUTION
优势替代
FEATURES
? 电源范围:+2.7V 至+36V，1.35V至±18V
? 低噪声:14 nVIHz
? 低偏移漂移:0.3pVI°C(典型值)
? 已过滤的射频干扰(RFI)输入
? 输入范围包括负电源
? 输入范围运行至正电源
? 轨至轨输出
? 增益带宽:3MHz
? 低静态电流:每个放大器475uA
? 高共模抑制:120dB（典型值)
? 低输入偏压电流:8pA
? 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
-8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TsSOP)封装微型封装:
- SOT553封装内为单通道-vssOP-8封装内为双通道

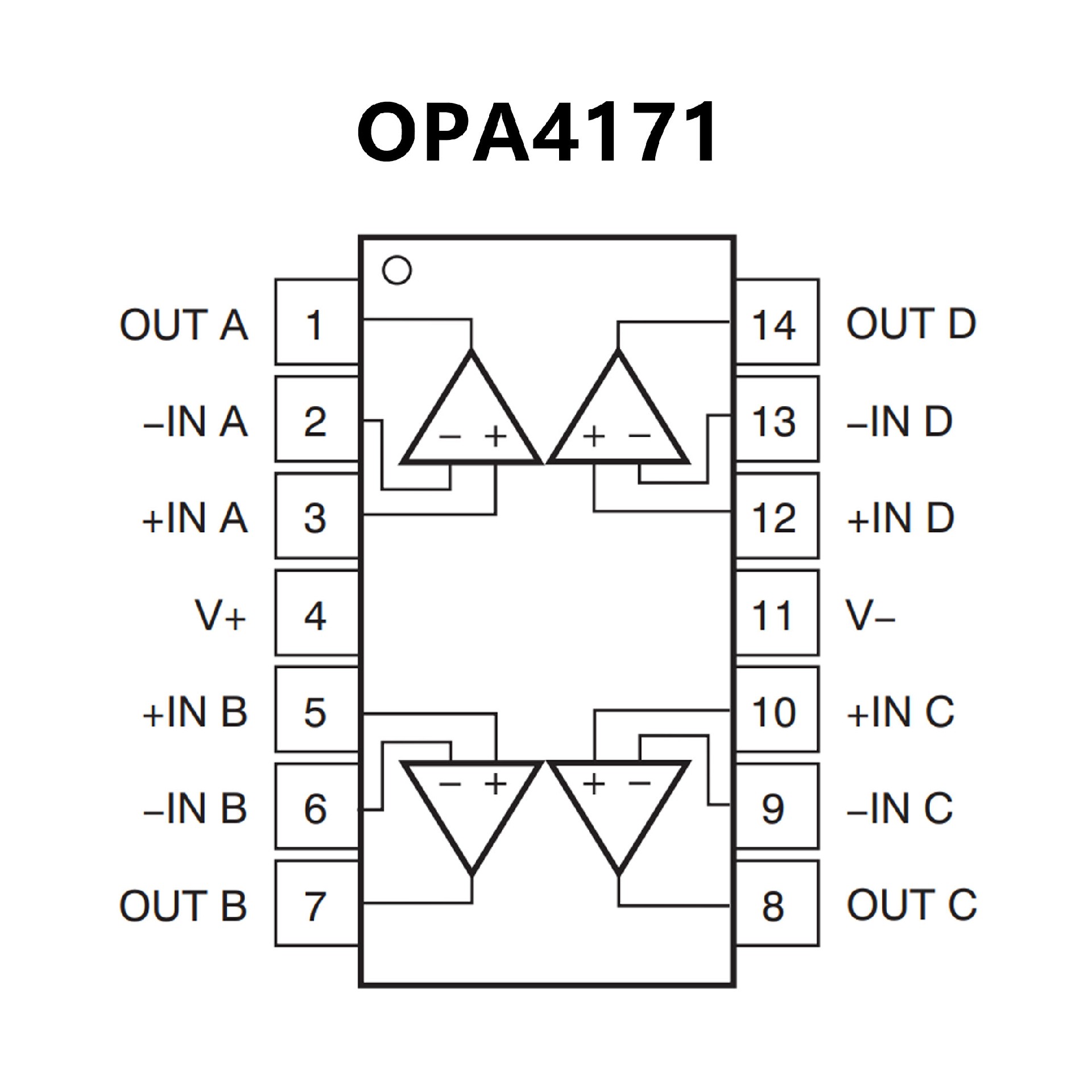

PIN CONFIGUTION
