Micro Power operational Amplifier, SGM8273-1 Replace TLV170.
SGM8273-1
SGM8273-1.pdf
SGM8273-1.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/?s
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages

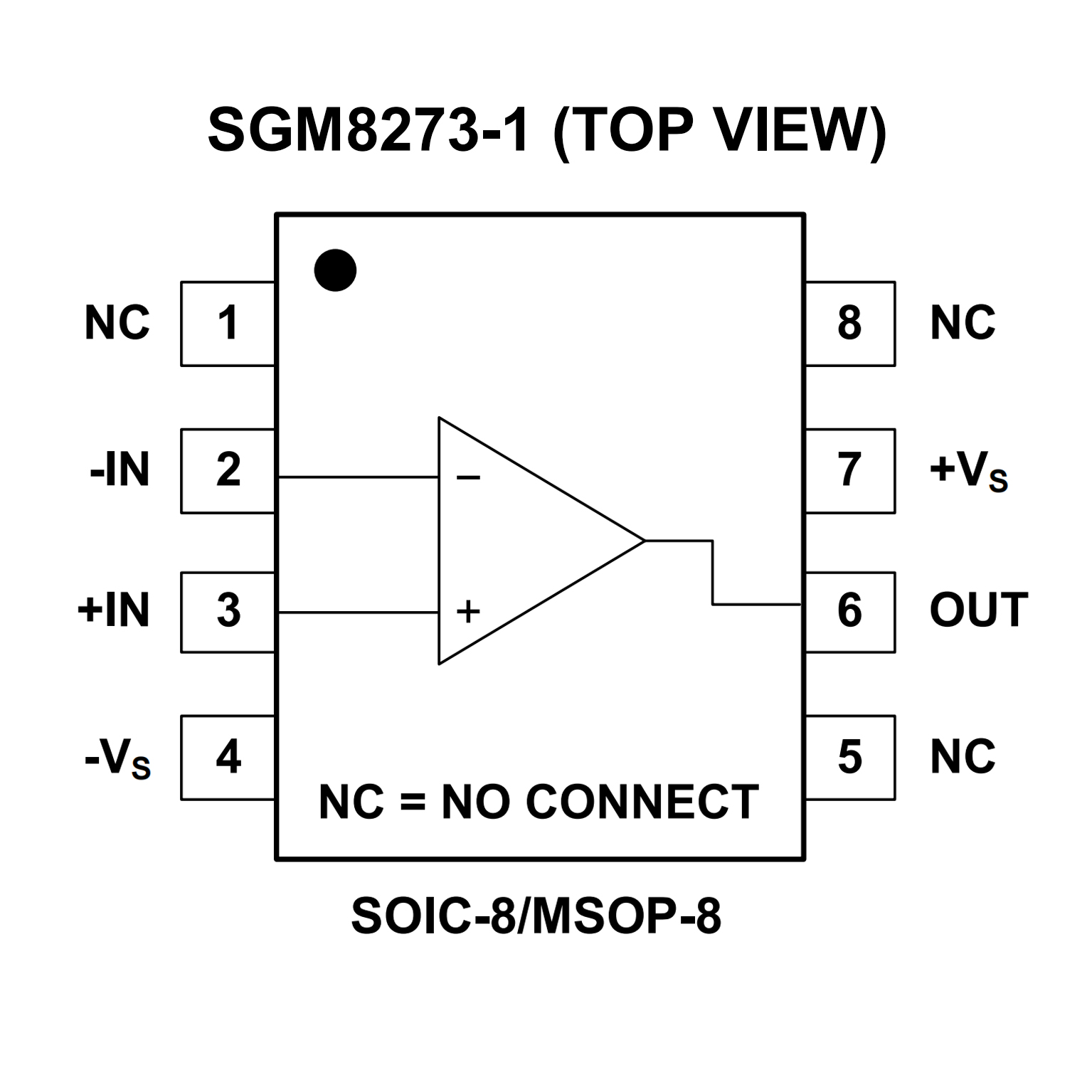

PIN CONFIGUTION
优势替代
FEATURES
? Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
? Low Noise: 22 nV/√Hz
? EMI-Hardened with RFI-Filtered Inputs
? Input Range Includes the Negative Supply
? Unity-Gain Stable: 200-pF Capacitive Load
? Rail-to-Rail Output
? Gain Bandwidth: 1.2 MHz
? Low Quiescent Current: 125 ?A per Amplifier
? High Common-Mode Rejection: 110 dB
? Low Bias Current: 10 pA (typical)

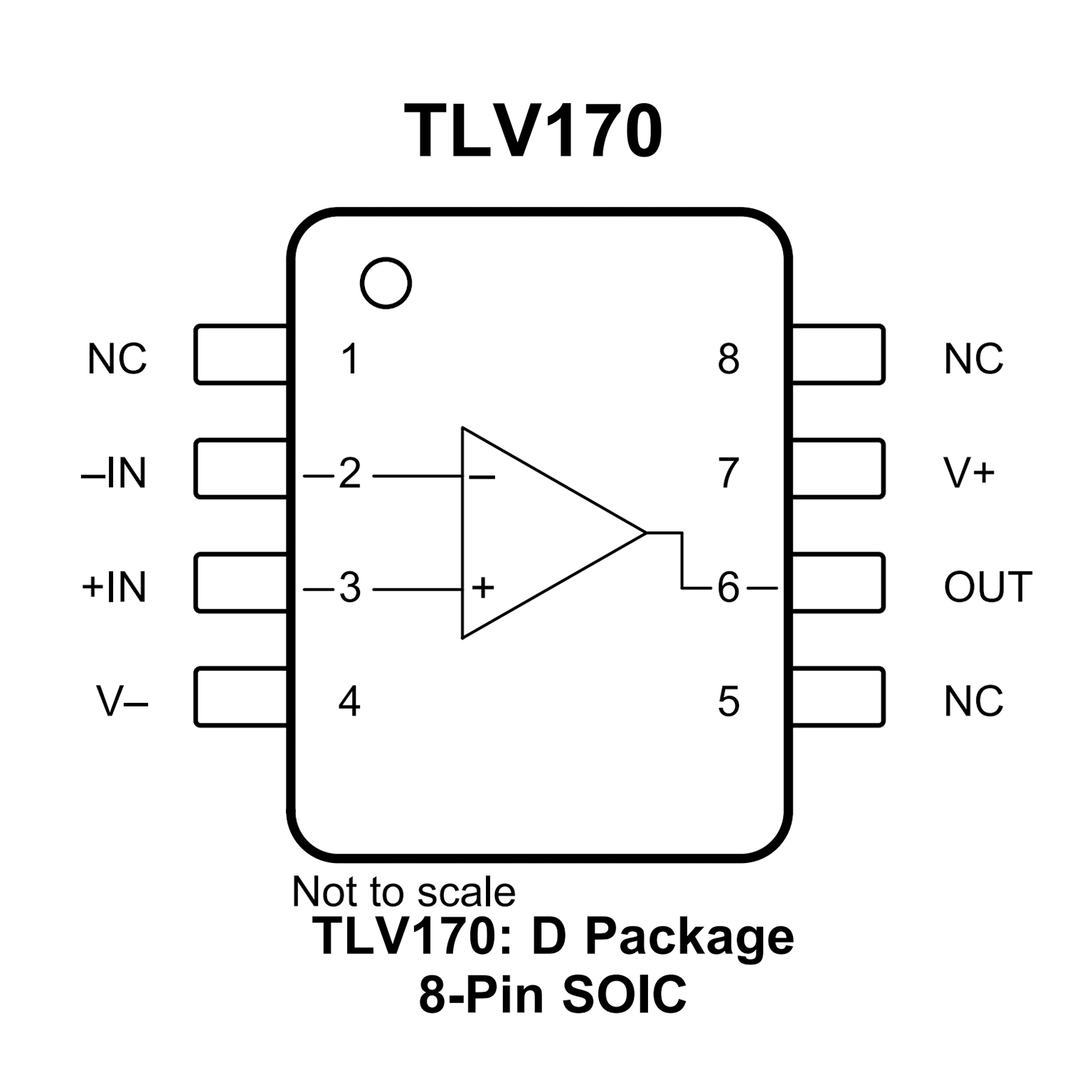

PIN CONFIGUTION
