Low Noise,High Precision, High Voltage,Rail-to-Rail I/O Operational Amplifiers, SGM8273-1 Replace TS321.
SGM8273-1
SGM8273-1.pdf
SGM8273-1.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

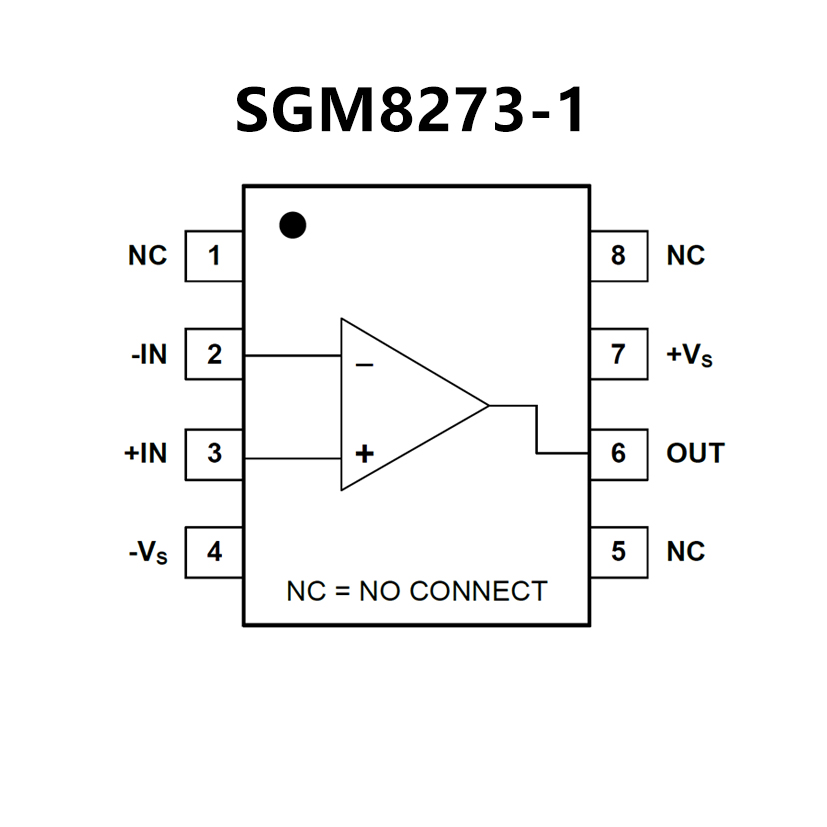

PIN CONFIGUTION
优势替代
FEATURES
? 宽电源范围
3V 至30V 的单电源供电范围
±1.5 V 至±15 V 的双电源供电范围
? 从0V 至3.5V（最低值）(VCC = 5 V) 的大输出电
压摆幅
? 低电源电流：500μA（典型值）
? 低输入偏置电流：20nA（典型值）
? 与高容式负载一起工作时保持稳定

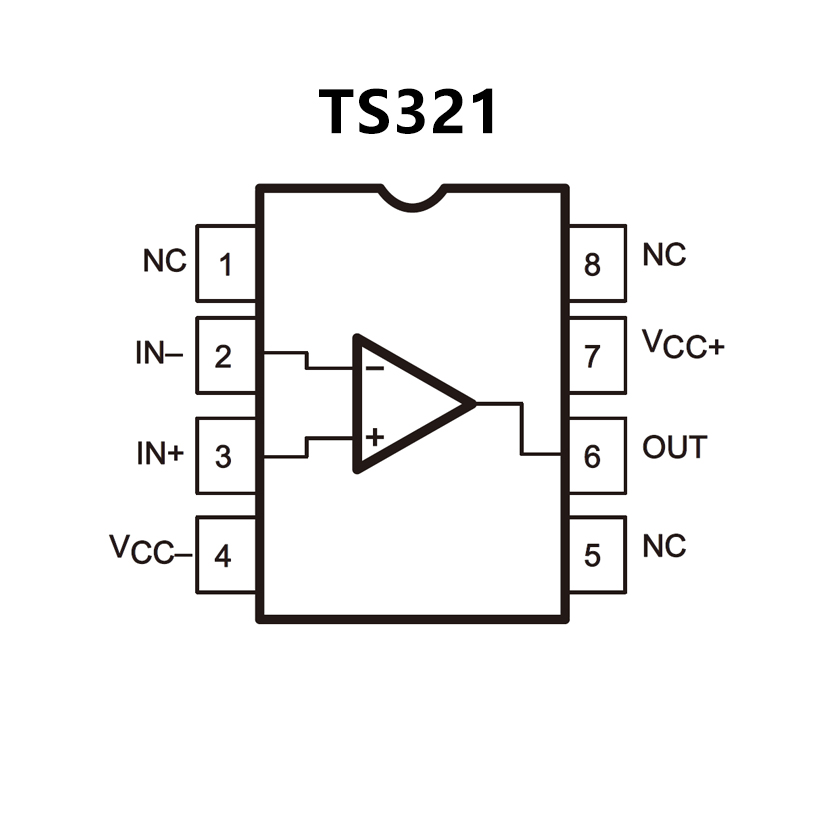

PIN CONFIGUTION
