Micro Power operational Amplifier, SGM8273-2 Replace TL072.
SGM8273-2
SGM8273-2.pdf
SGM8273-2.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/?s
? Small Packaging:
SGM8273-2 Available in Green SOIC-8 Package

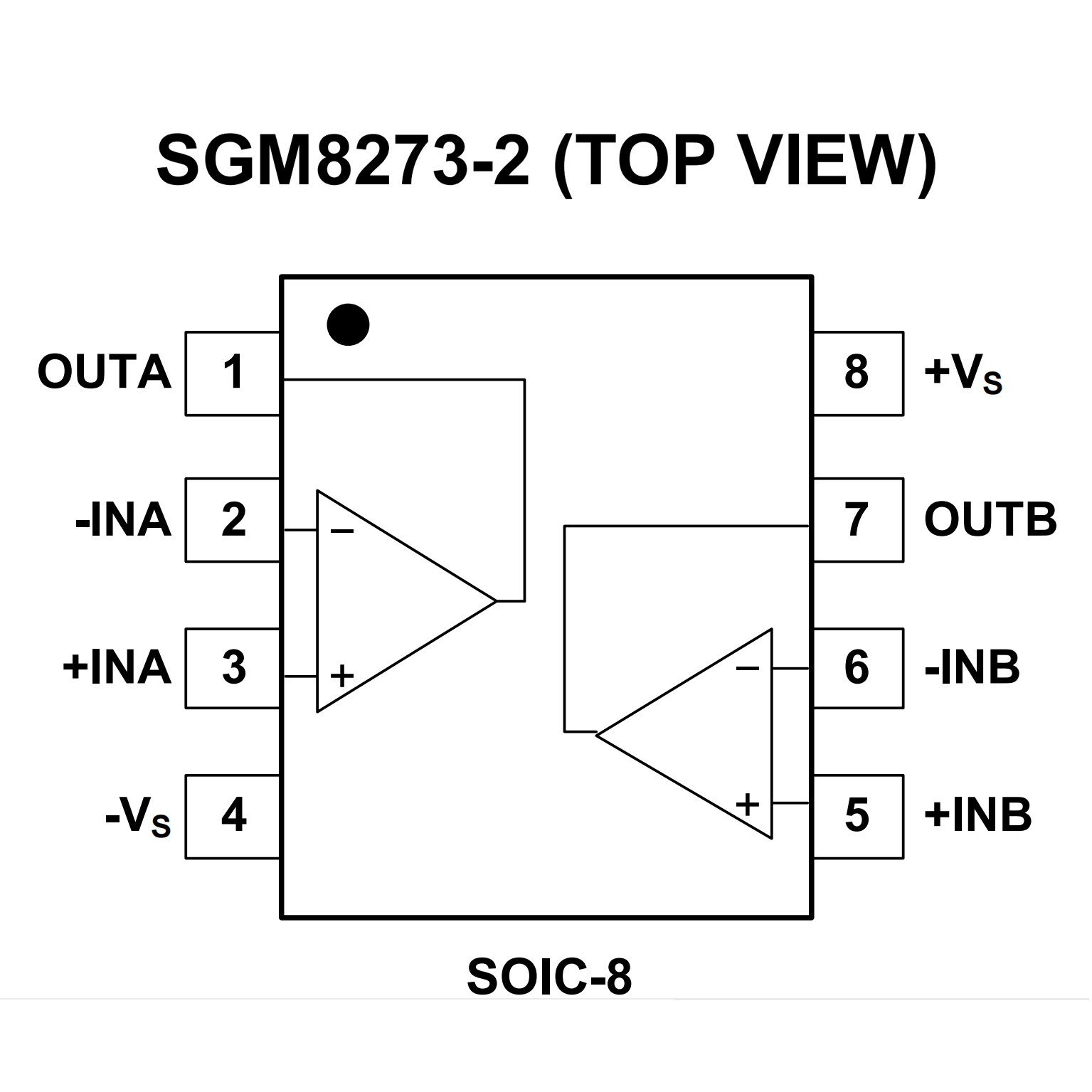

PIN CONFIGUTION
优势替代
FEATURES
? Low Power Consumption: 1.4 mA/ch Typical
? Wide Common-Mode and Differential Voltage
Ranges
? Low Input Bias Current: 30 pA Typical
? Low Input Offset Current: 5 pA Typical
? Output Short-Circuit Protection
? Low Total Harmonic Distortion: 0.003% Typical
? High Input Impedance: JFET Input Stage
? Latch-Up-Free Operation
? High Slew Rate: 13 V/μs Typical
? Common-Mode Input Voltage Range
Includes VCC+
PIN CONFIGUTION
