SGM8276-1.pdf? Wide Input Common Mode and Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

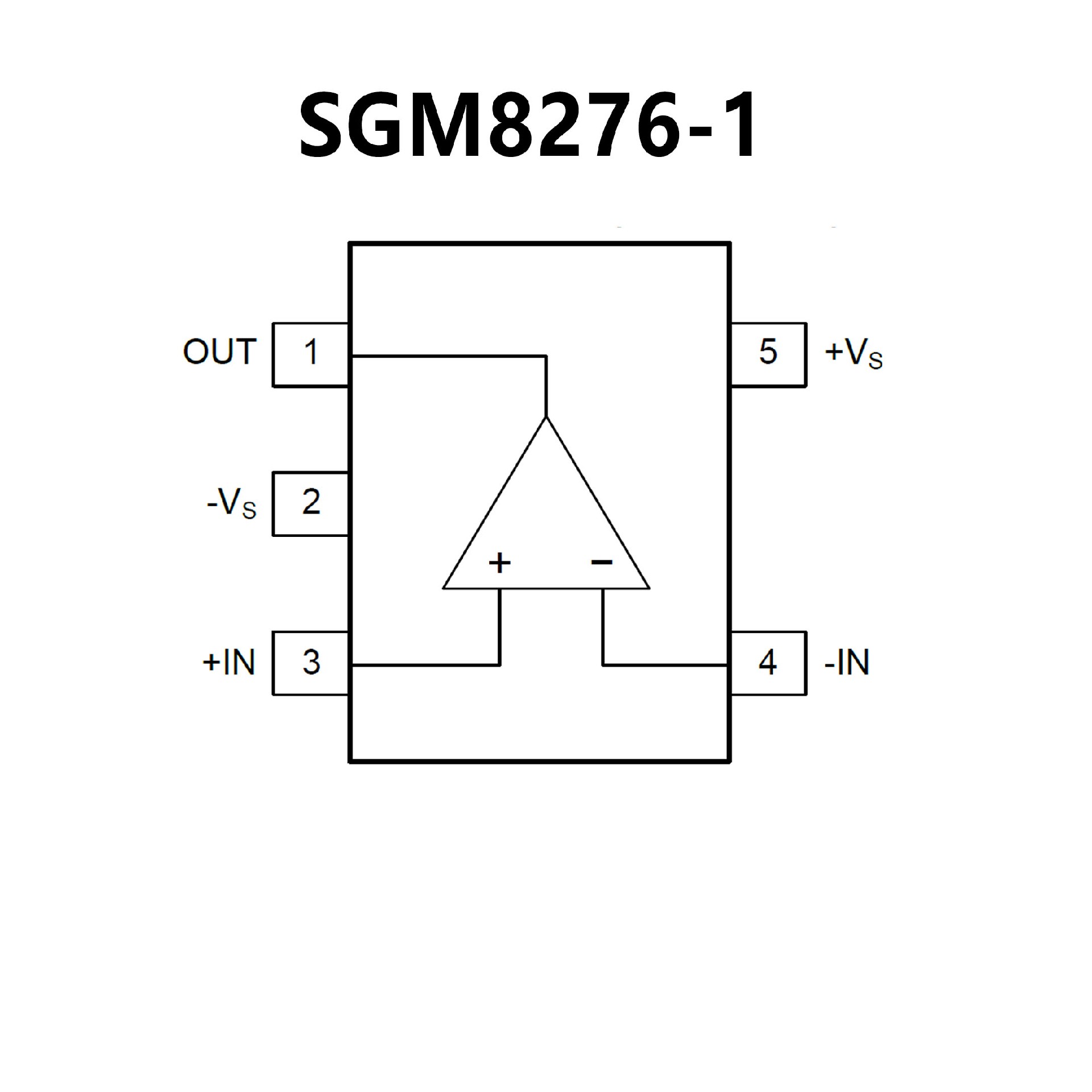

SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package
? 电源范围:+2.7V至+36V，土1.35V至±18V
? 低噪声:14 nV/Hz
? 低偏移漂移:0.3uVI°C(典型值)
? 已过滤的射频干扰(RFI)输入
? 输入范围包括负电源
? 输入范围运行至正电源轨至轨输出
? 增益带宽:3MHz
? 低静态电流:每个放大器475uA高共模抑制:120dB（典型值)
? 低输入偏压电流:8pA
? 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
- 8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TSSOP)
? 封装微型封装:
-sOT553封装内为单通道
- vssOP-8封装内为双通道
