? Low Noise: 4.5nV/Hz

? Rail-to-Rail Output

? Very Low Offset Voltage: 250μV (MAX)

? Low Bias Current: ±1nA (TYP)

? High Gain-Bandwidth Product: 9MHz

? High Slew Rate: 8V/μs

? High Open-Loop Gain: 130dB at VS = ±15V

? High PSRR: 145dB

? Settling Time to 0.1% with 1V Step: 1μs

? Overload Recovery Time: 10μs

? Operating Voltage Range:

  3.6V to 36V or ±1.8V to ±18V

? Input Common Mode Voltage Range:

  (-V_S) + 1.5V to (+V_S) - 2V

? Low Supply Current:

  1.5mA/Amplifier (TYP)

? -40℃ to +125℃ Operating Temperature Range

? Small Packaging:

  SGM8295-1 Available in Green SOT-23-5 and

  SOIC-8 Packages

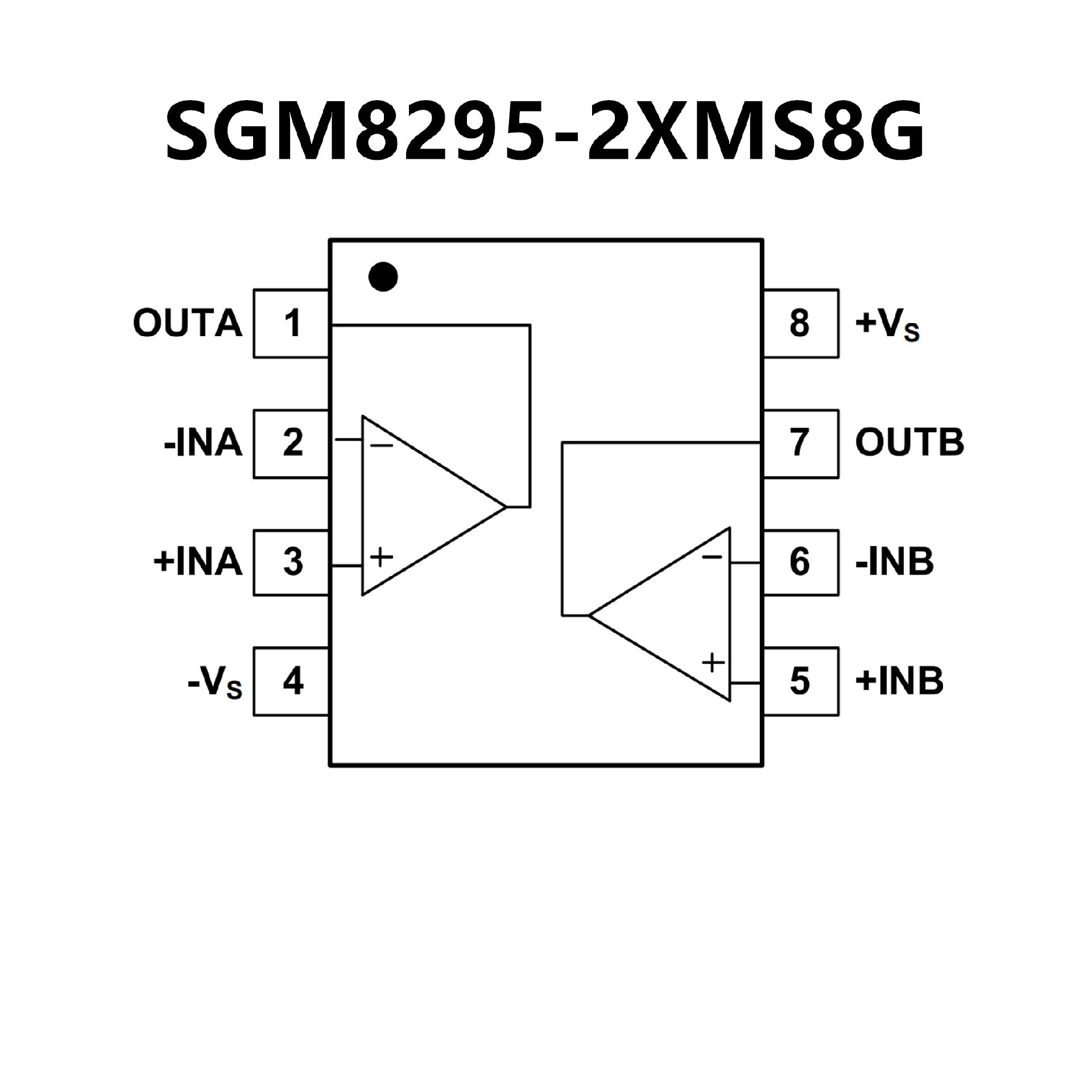

  SGM8295-2 Available in Green SOIC-8 and

  MSOP-8 Packages

  SGM8295-4 Available in a Green SOIC-14 Package
