High Precision Operational Amplifier, SGM8552 Replace OPA2335.
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
? Low Offset Voltage: 4μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930μA (TYP)
? Overload Recovery Time: 60μs (at VS = +5V)
? No External Capacitors Required

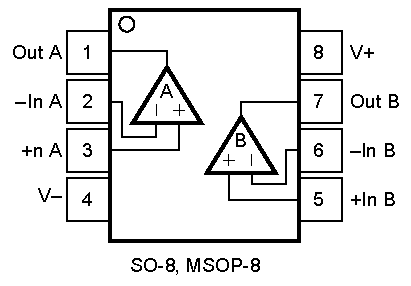

PIN CONFIGUTION
优势替代
FEATURES
? LOW OFFSET VOLTAGE: 5μV (max)
? ZERO DRIFT: 0.05μV/°C (max)
? QUIESCENT CURRENT: 285μA
? SINGLE-SUPPLY OPERATION
? SINGLE AND DUAL VERSIONS
? SHUTDOWN
? MicroSIZE PACKAGES
PIN CONFIGUTION
