Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier,8552XS8GTR-Replace-AD8539ARZ.
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
? Low Offset Voltage: 4?V (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930?A (TYP)
? Overload Recovery Time: 60?s (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Package

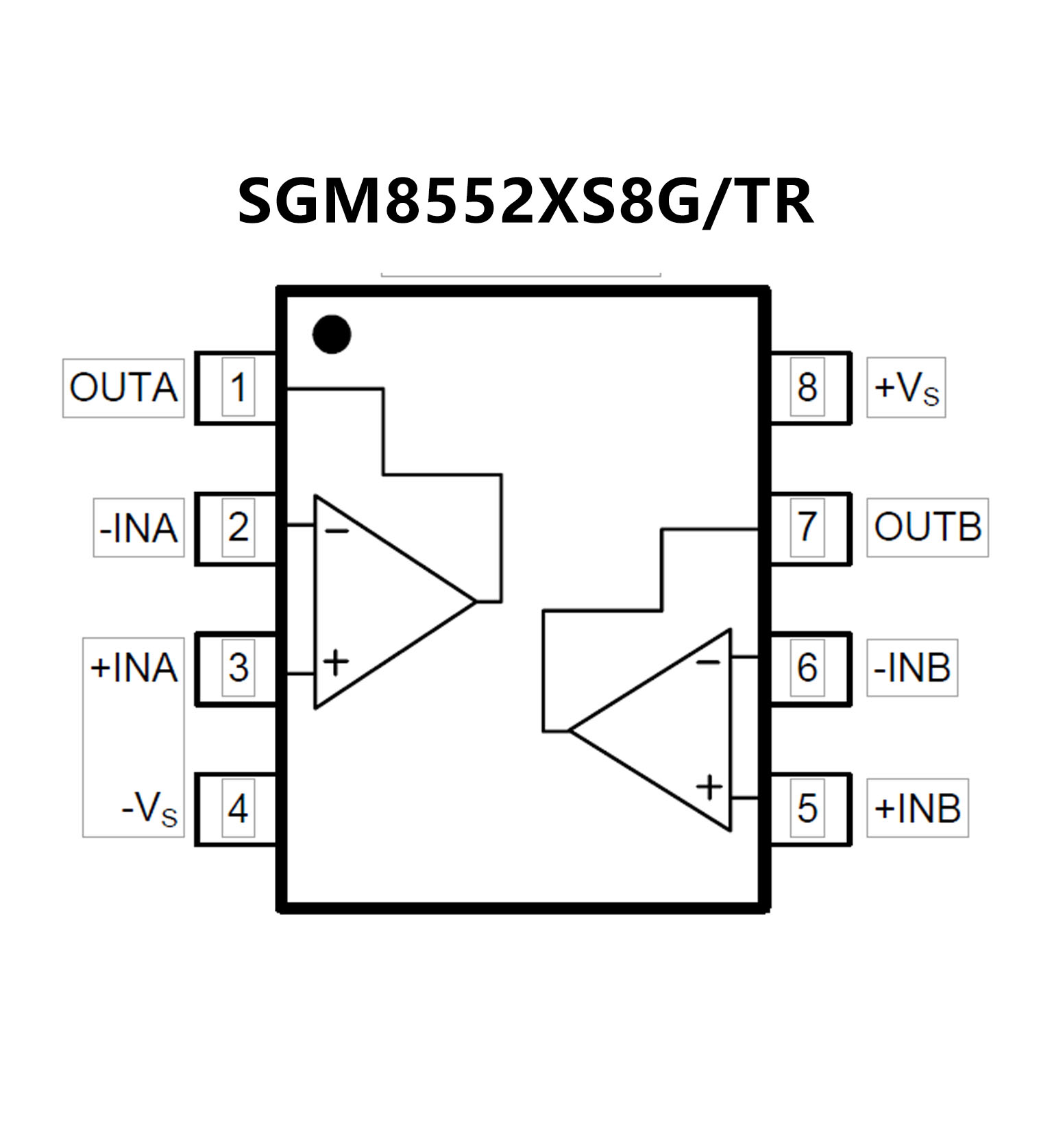

PIN CONFIGUTION
优势替代
FEATURES
? Low offset voltage: 13 ?V maximum
? Input offset drift: 0.03 ?V/°C
? Single-supply operation: 2.7 V to 5.5 V
? High gain, CMRR, and PSRR
? Low input bias current: 25 pA
? Low supply current: 180 ?A
? Qualified for automotive applications

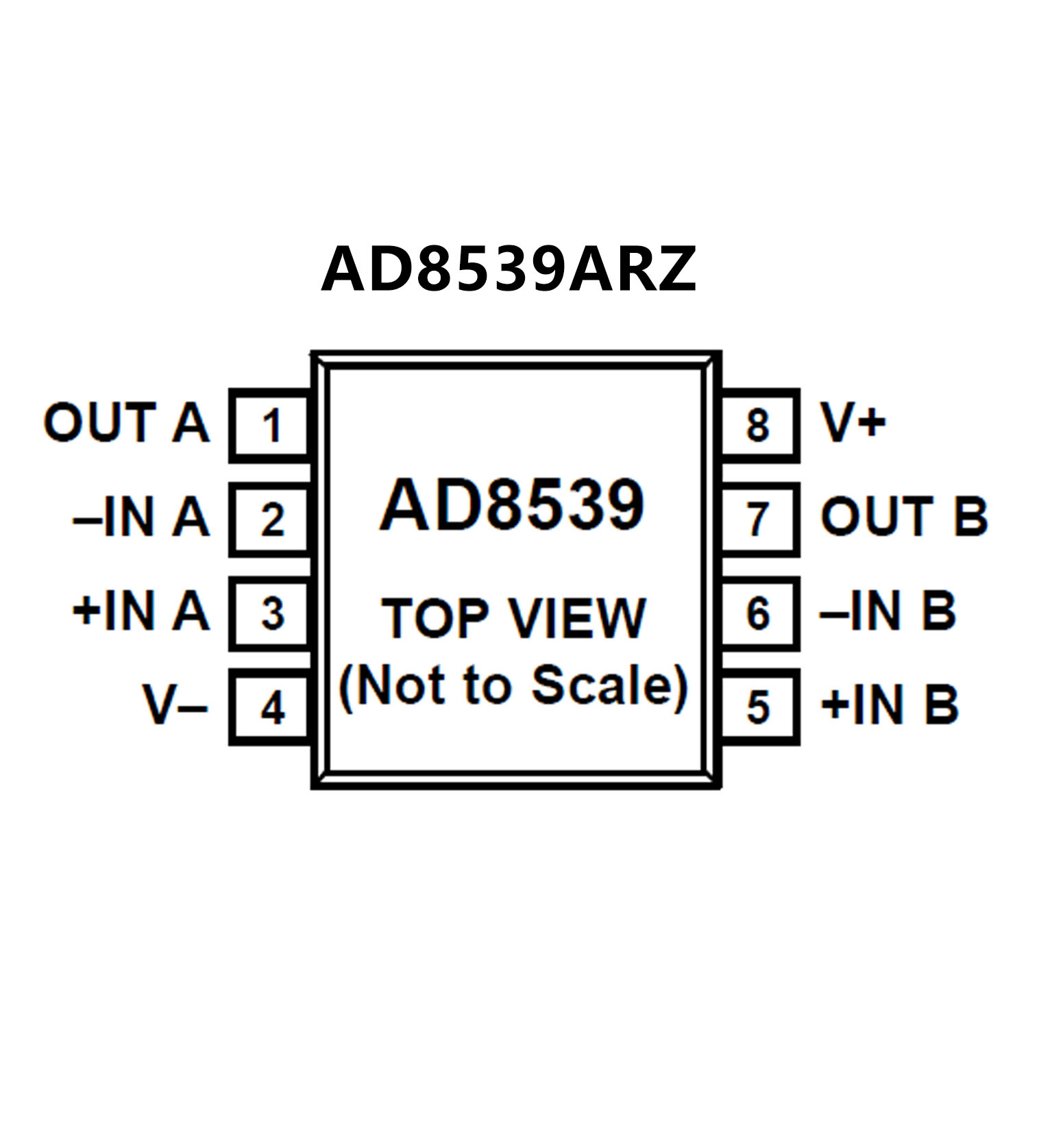

PIN CONFIGUTION
