High Precision Operational Amplifier, Replace OPA335
SGM8557-1
SGM8557-1.pdf
SGM8557-1.pdfFEATURES
? 240mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 27nV/℃ (TYP)
? Low Noise: 22nV/ Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current: 1.2mA/Amplifier (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 144dB
? Power Supply Rejection Ratio: 120dB
? No Phase Reversal for Overdriven Inputs

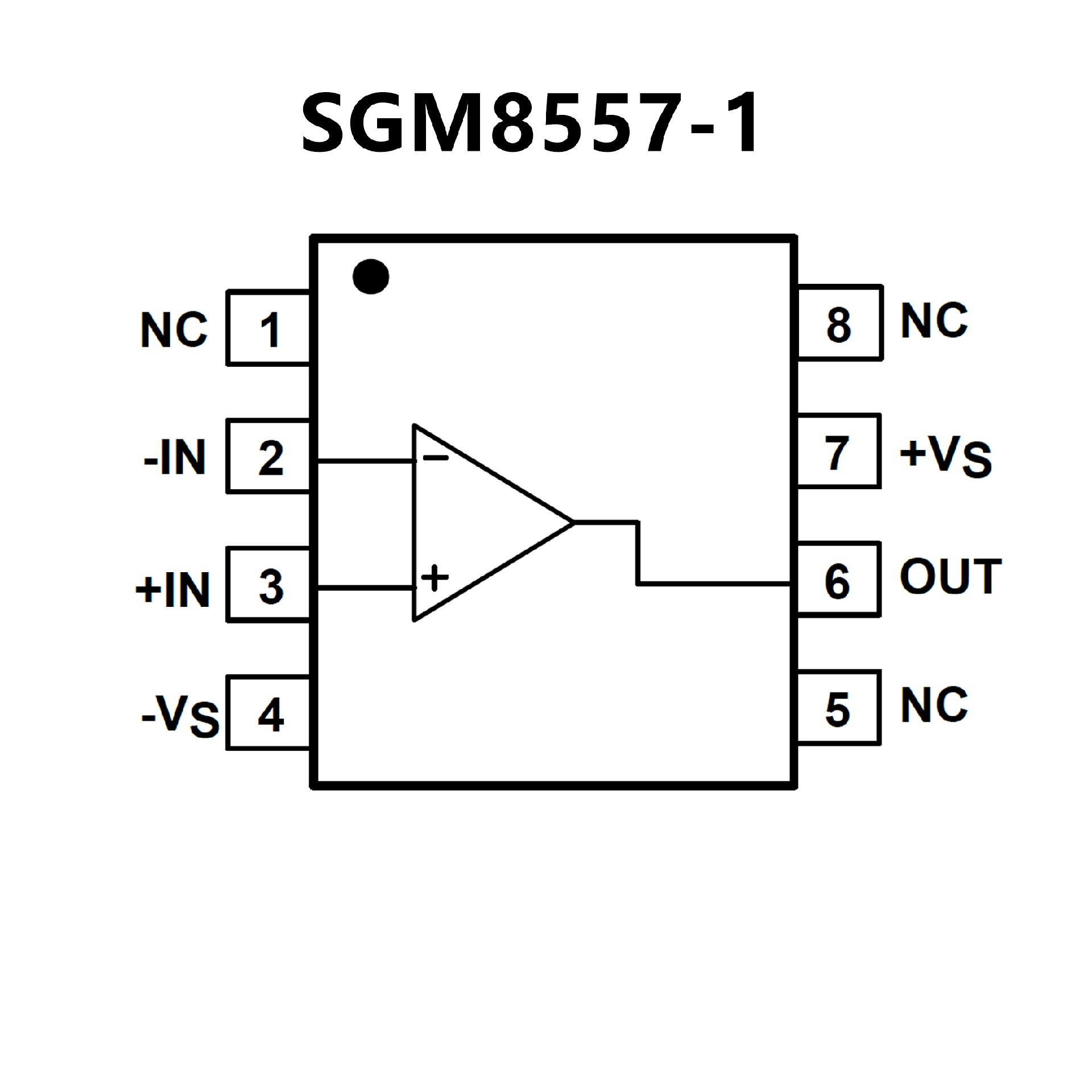

PIN CONFIGUTION
优势替代
FEATURES
? LOW OFFSET VOLTAGE: 5μV (max)
? ZERO DRIFT: 0.05μV/°C (max)
? QUIESCENT CURRENT: 285μA
? SINGLE-SUPPLY OPERATION
? SINGLE AND DUAL VERSIONS
? SHUTDOWN
? MicroSIZE PACKAGES

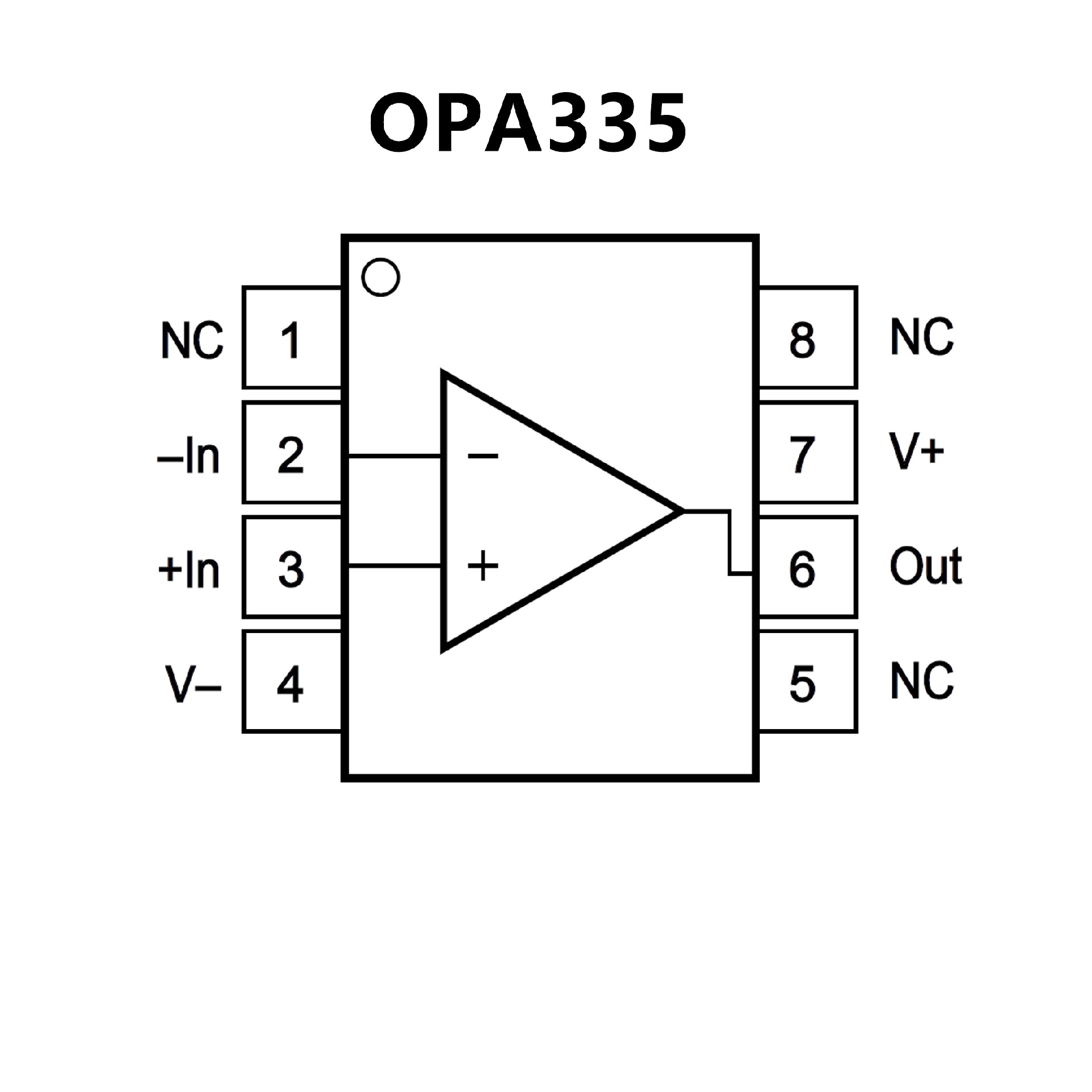

PIN CONFIGUTION
