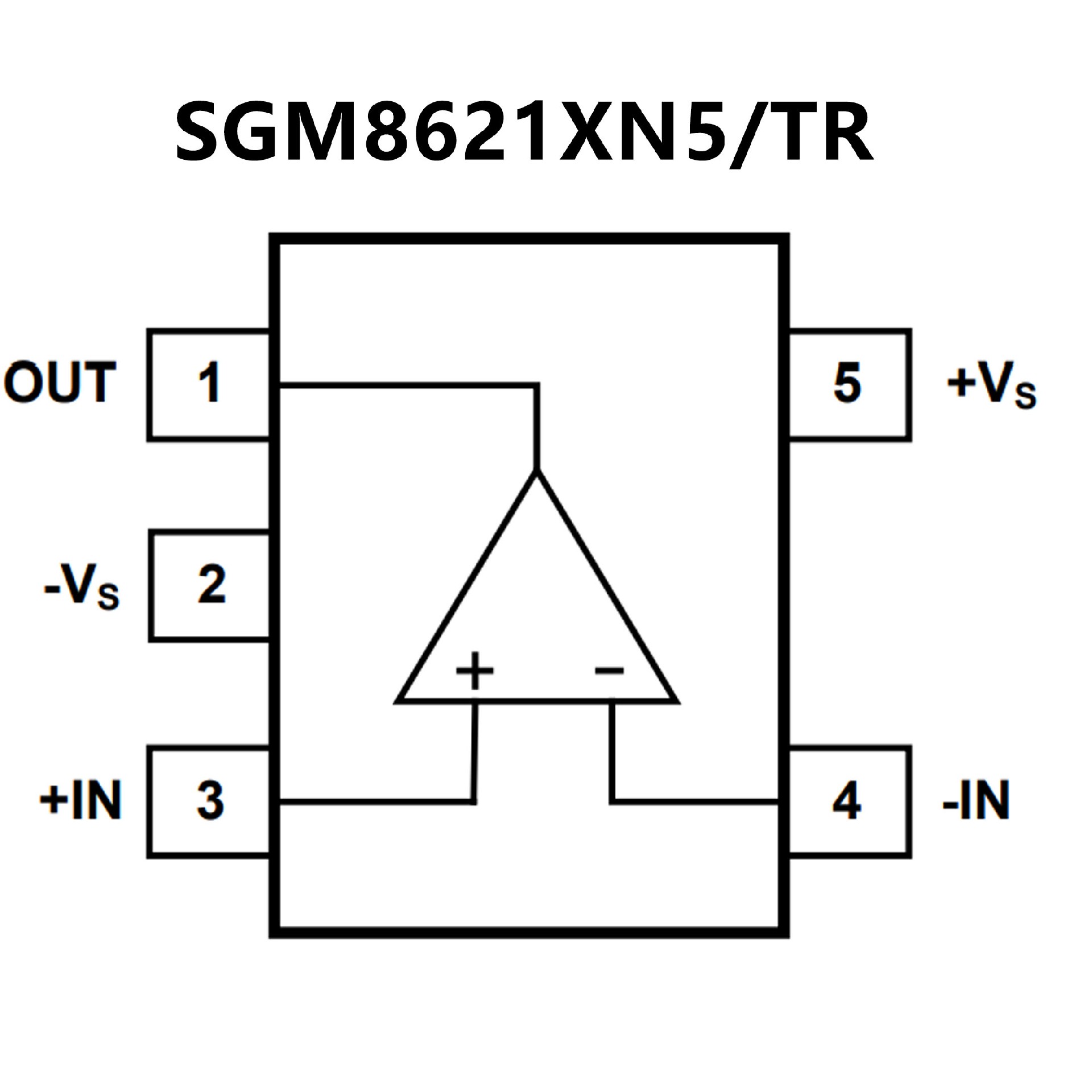

SGM8621XN5TR.pdf? Rail-to-Rail Input and Output3mV Maximum VOS
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? Small Packaging
SGM8621 Available in Green SC70-5, SOT-23-5and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 andSOIC-8
SGM8624 Available in Green TSSOP-14 andSOIC-14

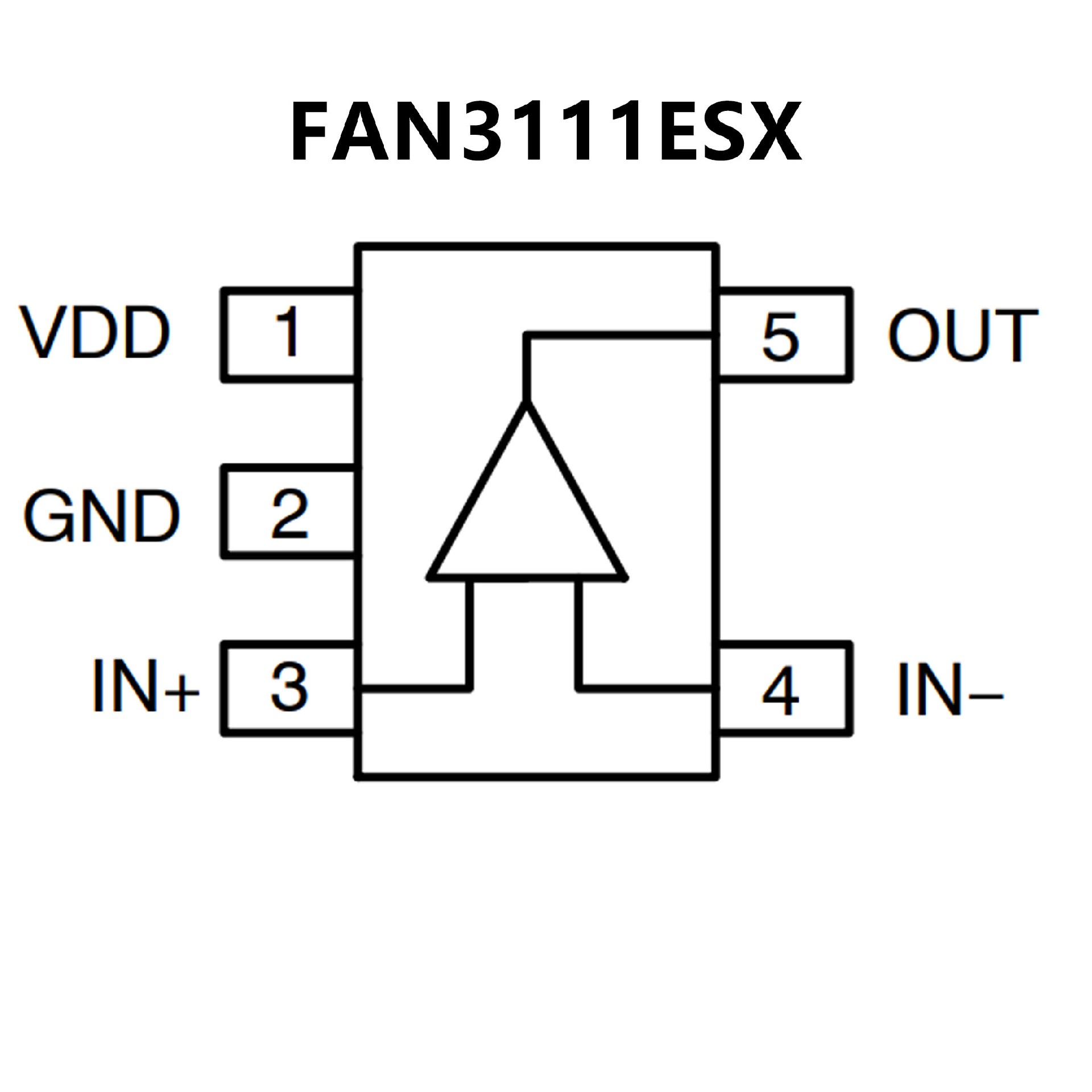

? 1.4A封值灌电流/源电流，VDD = 12 V
? 1.1 A 灌电流0.9 A源电流，VOUT = 6 V
? 4.5到18V工作范围
? FAN3111C与FAN3100C 尺寸兼容
? 两个输入配置
? 双通道CMOS输入允许配置作为带使能功能的同相或反向
? 单通道同相、低压输入用于实现与低压控制兼容
? 为并联功率器件设计的小尺寸实现分立驱动器
? 典型延迟时间为15ns
? 在负载为470PF时，典型上升时间为9ns/典型下降时间为8ns
? 5引脚SOT23封装
? 额定环境温度为-40°C 至 125°C
? These Devices are Pb?Free and Halogen Free
