SGM8622.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3mV (MAX)
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8621 Available in Green SC70-5,
SOT-23-5and SOIC-8

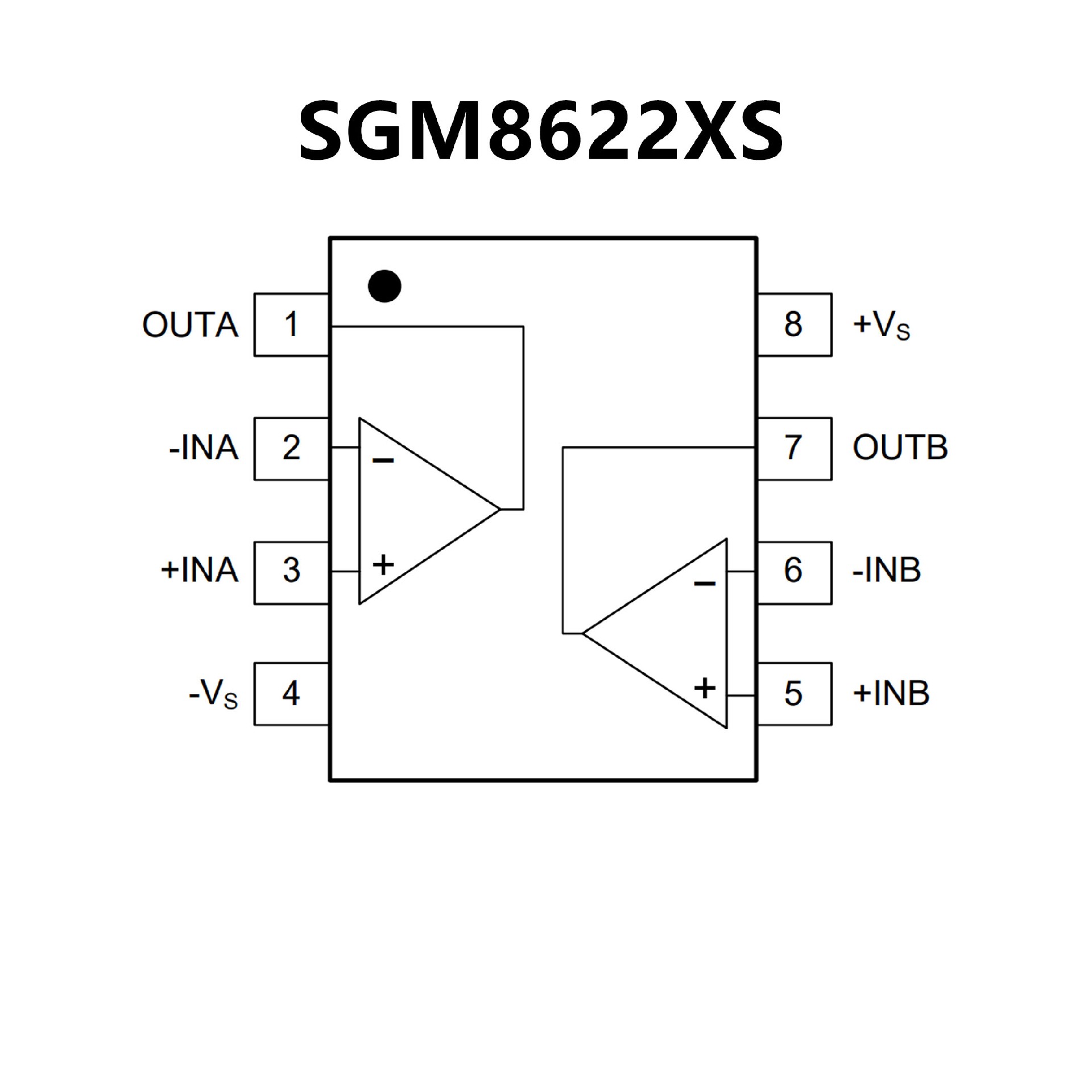

SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14
? 低IQ：150μA/通道
? 宽电源电压：1.8V 至5.5V
? 低噪声： 1kHz 下为14nV/√Hz
? 增益带宽：3MHz
? 低输入偏置电流：0.2pA
? 低偏移电压：0.5mV
? 单位增益稳定
? 内部射频/电磁干扰(RF/EMI) 滤波器
? 扩展温度范围：
–40°C 至125°C
