? Rail-to-Rail Input and Output

? Input Offset Voltage: 3.5mV (MAX)

? High Gain-Bandwidth Product: 6MHz

? High Slew Rate: 3.7V/μs

? Settling Time to 0.1% with 2V Step: 0.5μs

? Overload Recovery Time: 0.9μs

? Low Noise: 13nV/ √Hz at 1kHz

? Supply Voltage Range: 2V to 5.5V

? Input Voltage Range: -0.1V to 5.6V with VS=5.5V

? Low Supply Current:

SGM8632: 480μA/Amplifier (TYP)

? -40℃ to +125℃ Operating Temperature Range

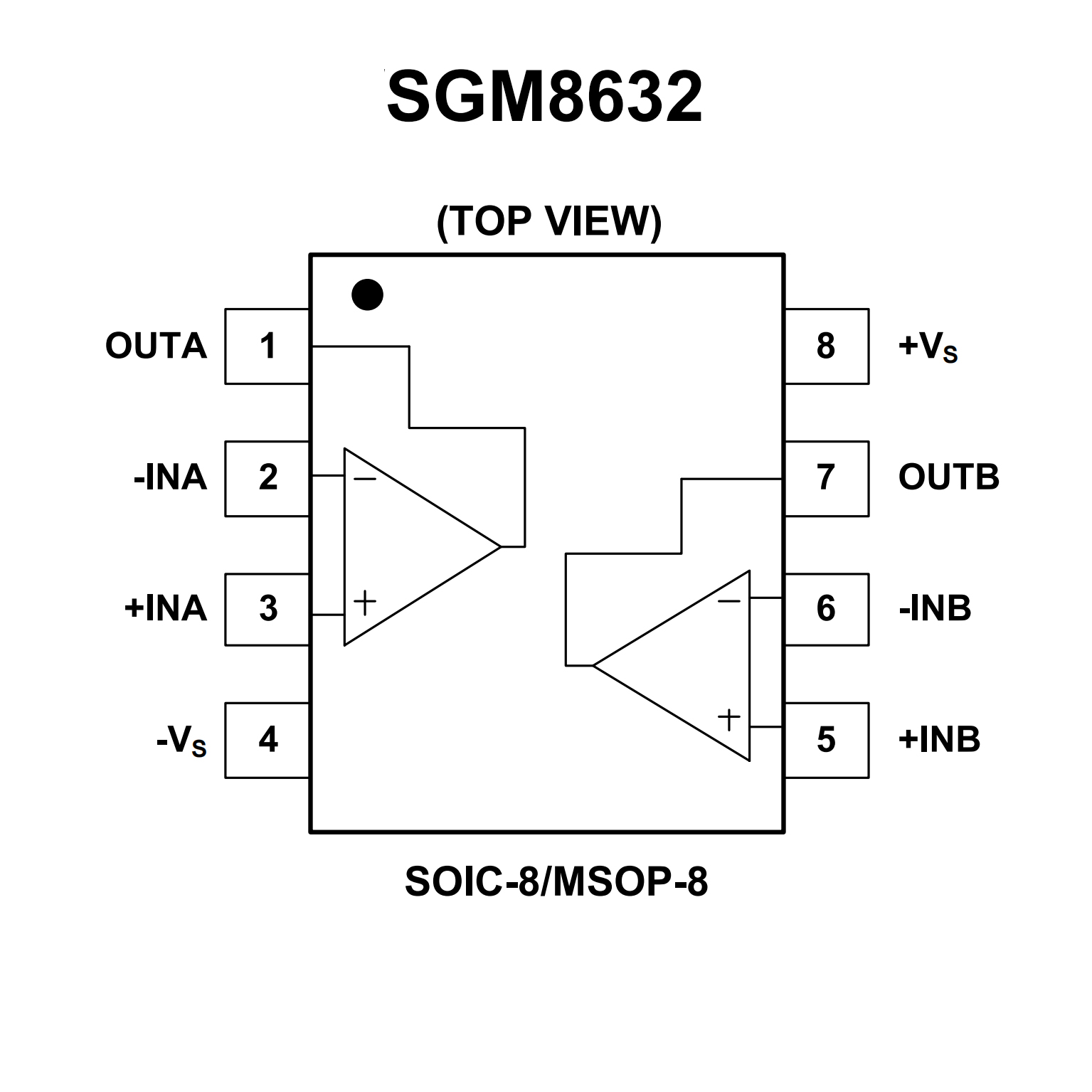

? Small Packaging:

  SGM8632 Available in Green MSOP-8 and

  SOIC-8 Packages
