480μA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifier,SGM8632CXMS8GTR-Replace-AD8692ARMZREEL.
SGM8632
SGM8632.pdf
SGM8632.pdfFEATURES
? Rail-to-Rail Input and Output
? 3.5mV Maximum Input Offset Voltage
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 480μA/Amplifier (TYP)
? Available in Green MSOP-8 Package

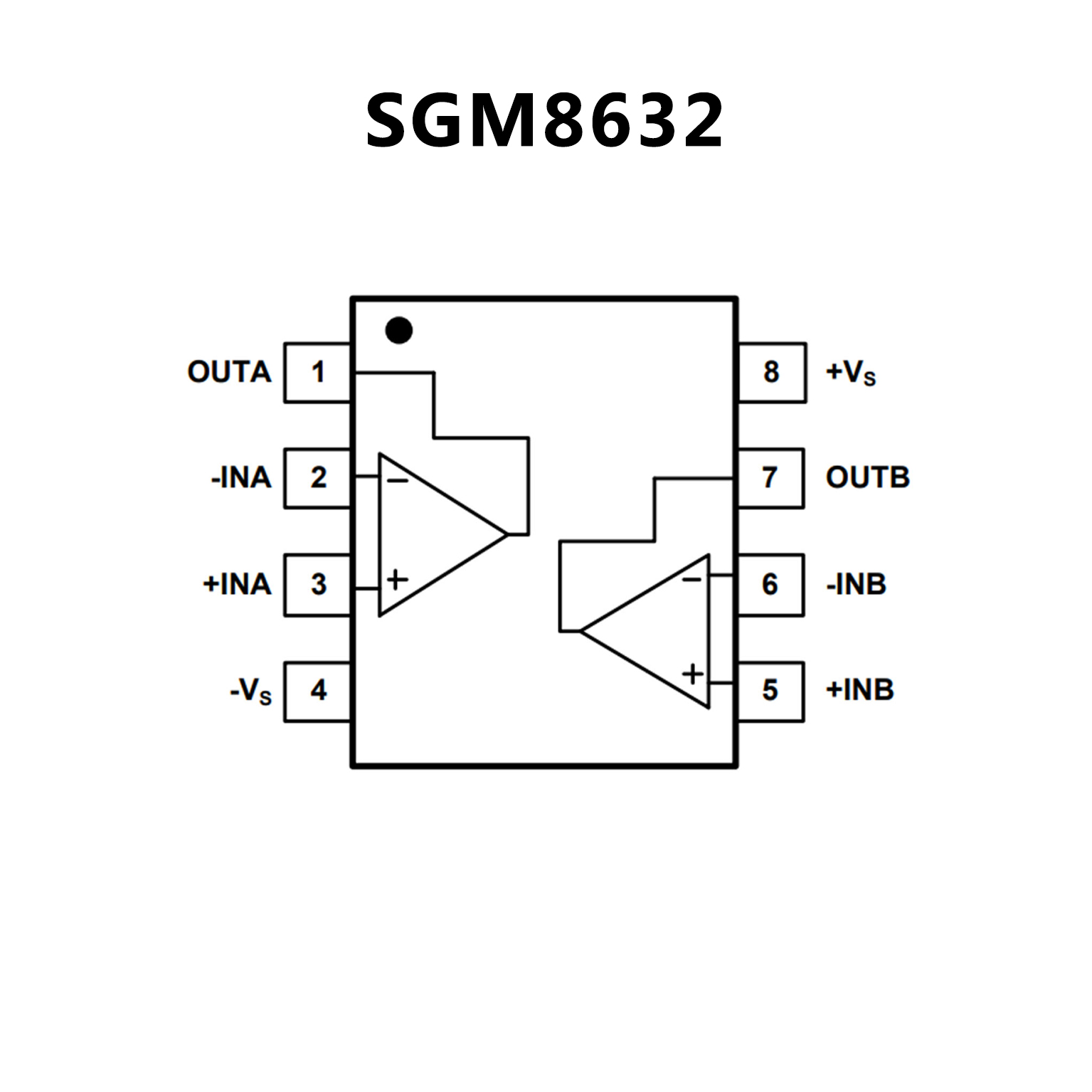

PIN CONFIGUTION
优势替代
FEATURES
? 失调电压：400 ?V(典型值)
? 低失调电压漂移：6 ?V/°C
(最大值，AD8692/AD8694)
? 极低输入偏置电流：1 pA(最大值)
? 低噪声：8 nV/√Hz
? 低失真： 0.0006%
? 宽带宽：10 MHz
? 单位增益稳定
? 单电源供电：2.7 V至6 V
? 通过汽车应用认证
PIN CONFIGUTION
