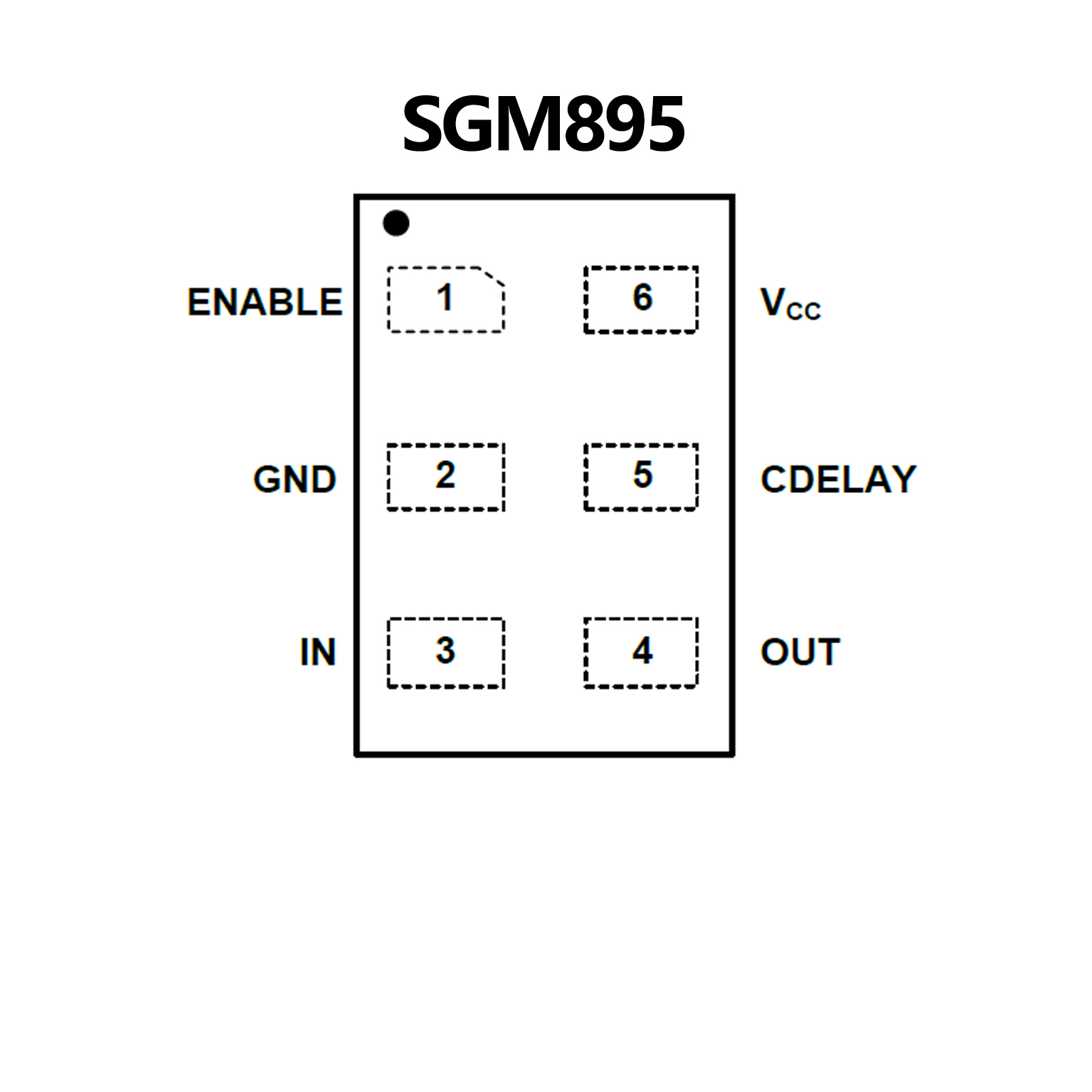

SGM895.pdf? High Voltage Threshold Accuracy:
? +25℃: ±1%
? -40℃ to +125℃: ±1.6%
? Low Power Consumption: 2.1μA (TYP)
? Operating Supply Voltage Range: 1.6V to 5.5V
? Capacitor-Adjustable Delay
? Active-High/Active-Low Enable Input Options
? Active-High/Active-Low Output Options
? Open-Drain (28V Tolerant)/Push-Pull Output Options
? Available in Ultra-Small Green
UTDFN-1.45×1-6ALand TSOT-23-6 Packages

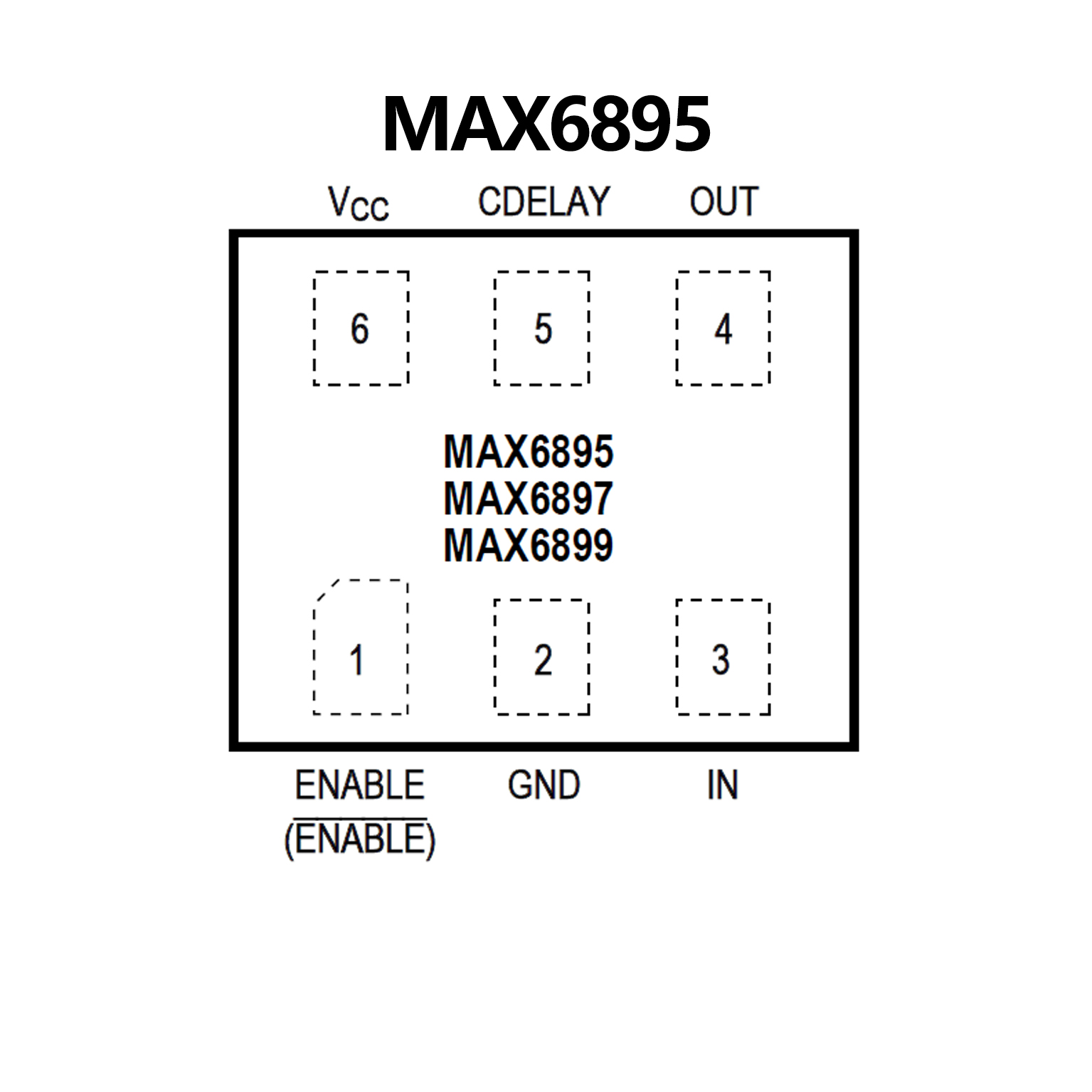

? 1.8% Accurate Adjustable
Threshold Over Temperature
? Operate from VCC of 1.5V to 5.5V
? Capacitor-Adjustable Delay
? Active-High/-Low Enable Input Options
? Active-High/-Low Output Options
? Open-Drain (28V Tolerant)/Push-Pull
Output Options
? Low Supply Current (10?A, typ)
? Fully Specified from -40°C to +125°C
? Ultra-Small 6-Pin ?DFN Package or Thin SOT23 Package
? AEC-Q100 Qualified (MAX6896AAZT/V+,
MAX6895AAZT/V+T, MAX6897AAZT/V+ Only)
