High Precision Operational Amplifier, SGM8956 Replace OPA2330.
SGM8956
SGM8956.pdf
SGM8956.pdfFEATURES
? Low Offset Voltage: 50μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Integrated RFI Filter
? Single-Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? Small Packaging: SGM8956 Available in Green
SOIC-8, MSOP-8 and TDFN-3×3-8L

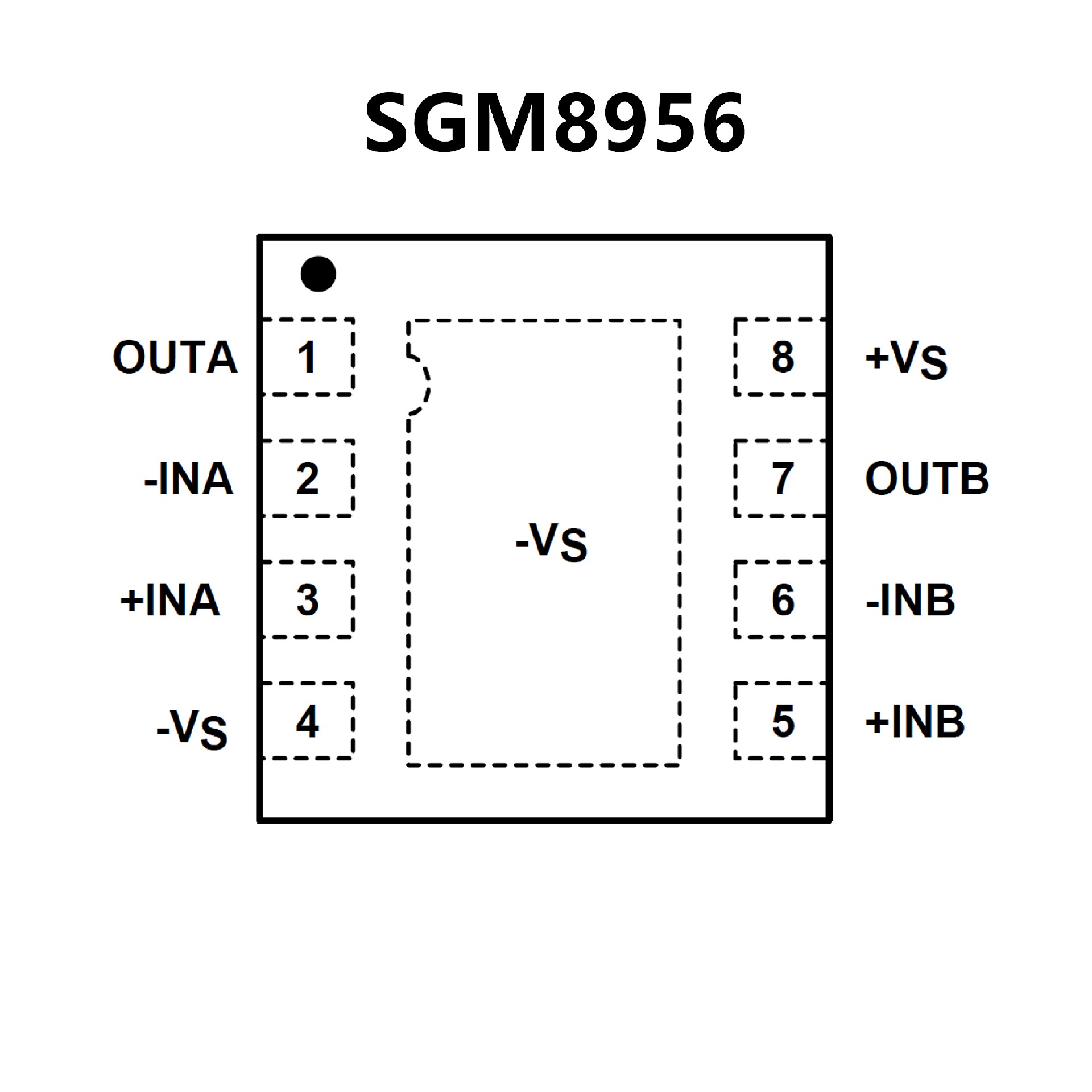

PIN CONFIGUTION
优势替代
FEATURES
? Unmatched Price Performance
? Low Offset Voltage: 50 μV (Maximum)
? Zero Drift: 0.25 μV/°C (Maximum)
? Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
? Quiescent Current: 35 μA (Maximum)
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input and Output
? Internal EMI Filtering
? microSize Packages: DSBGA, SC70, VQFN

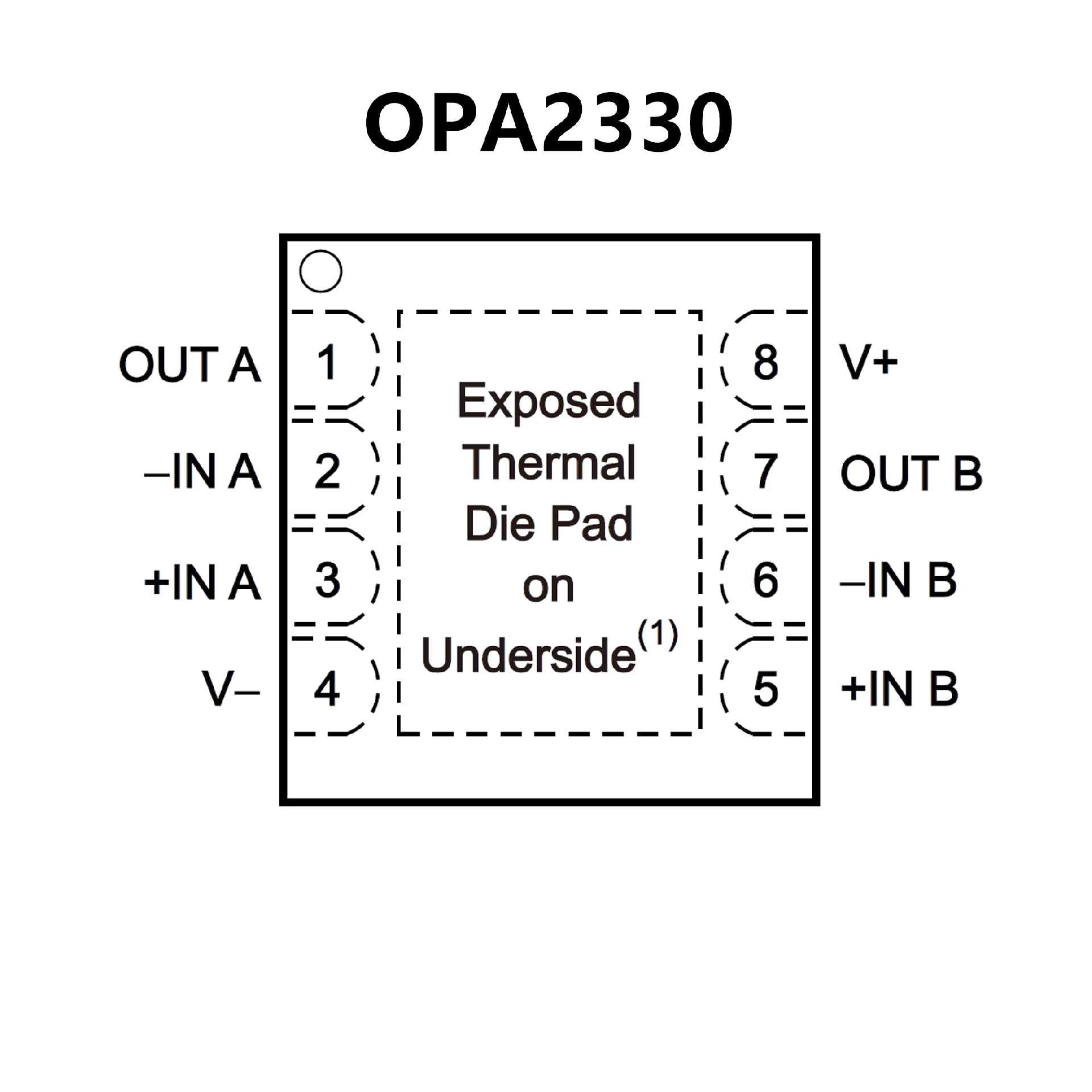

PIN CONFIGUTION
