? Rail-to-Rail Input and Output

? Input Offset Voltage: 240μV (MAX)

? High Gain-Bandwidth Product: 10MHz

? High Slew Rate: 20V/μs

? Settling Time to 0.1% with 2V Step: 280ns

? Overload Recovery Time: 100ns

? Low Noise: 8nV/Hz at 10kHz

? Supply Voltage Range: 1.8V to 5.5V

? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

? Low Power:

  Supply Current: 1.6mA/Amplifier (TYP)

? -40℃ to +125℃ Operating Temperature Range

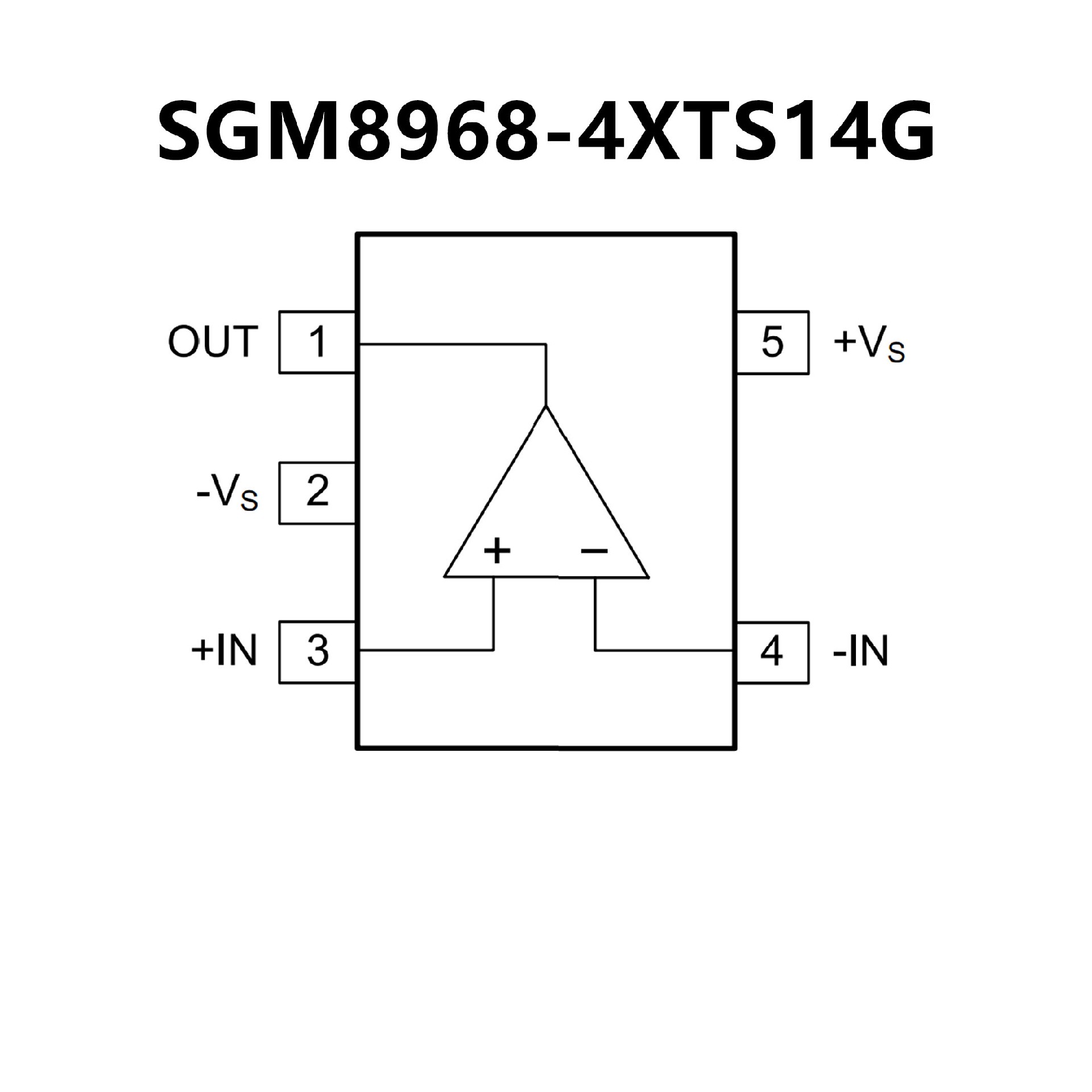

? Small Packaging:

  SGM8968-1 Available in Green

  SOT-23-5 andSOIC-8 Packages

  SGM8968-2 Available in Green

  SOIC-8 andMSOP-8 Packages

  SGM8968-4 Available in Green

  SOIC-14 andTSSOP-14 Packages
