SGM8968-1.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 50μV (TYP)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range

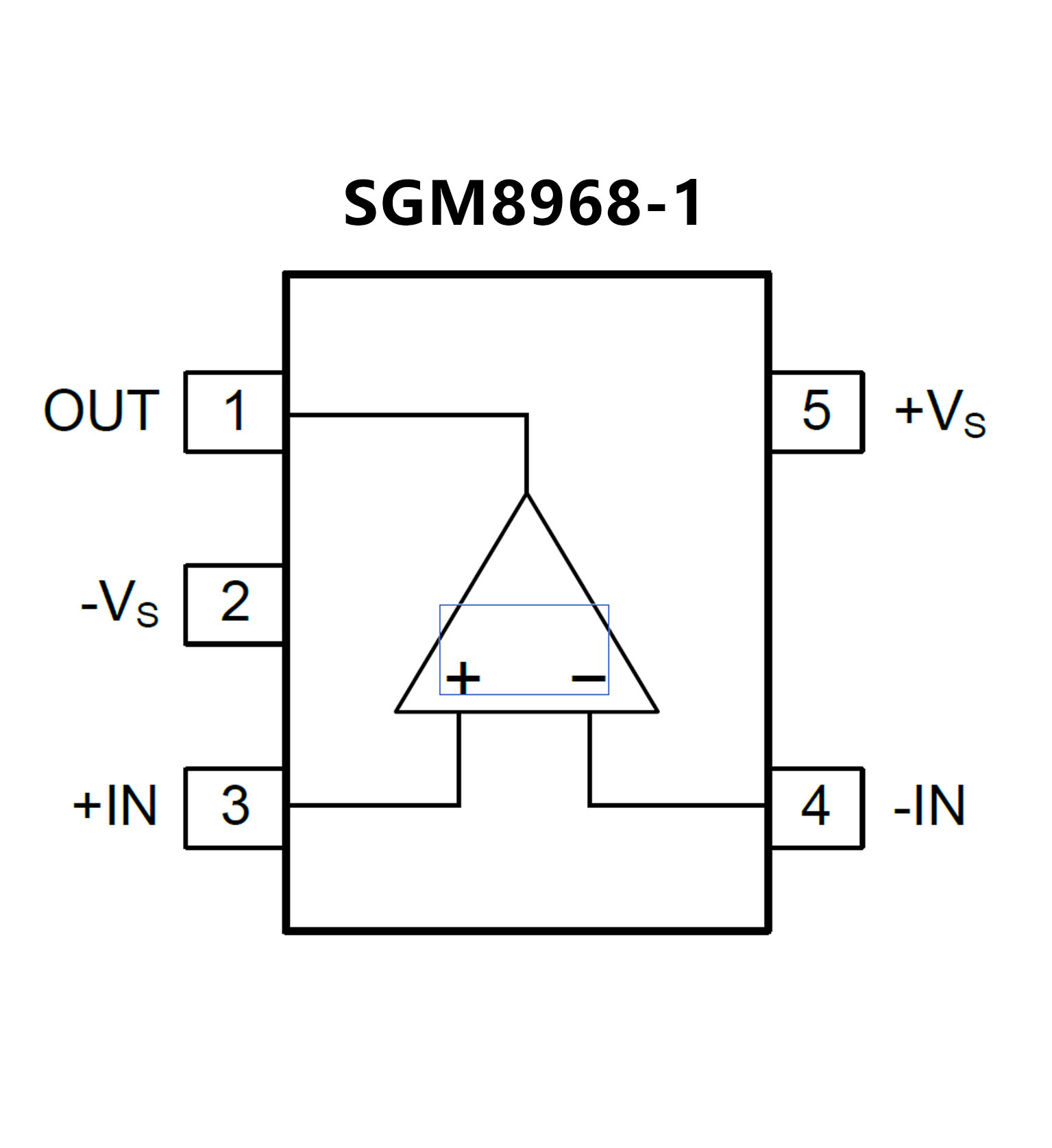

? Small Packaging:SGM8968-1 Available in
Green SOT-23-5 andSOIC-8 PackagesSGM8968-2
Available in Green SOIC-8 andMSOP-8 Packages
SGM8968-4 Available in Green
SOIC-14 andTSSOP-14 Packages
? Low offset voltage: 65 μV maximum
? Low input bias currents: 1 pA maximum
? Low noise: 8 nV/√Hz
? Wide bandwidth: 10 MHz
? High open-loop gain: 1000 V/mV
? Unity gain stable
? Single-supply operation: 2.7 V to 5.5 V

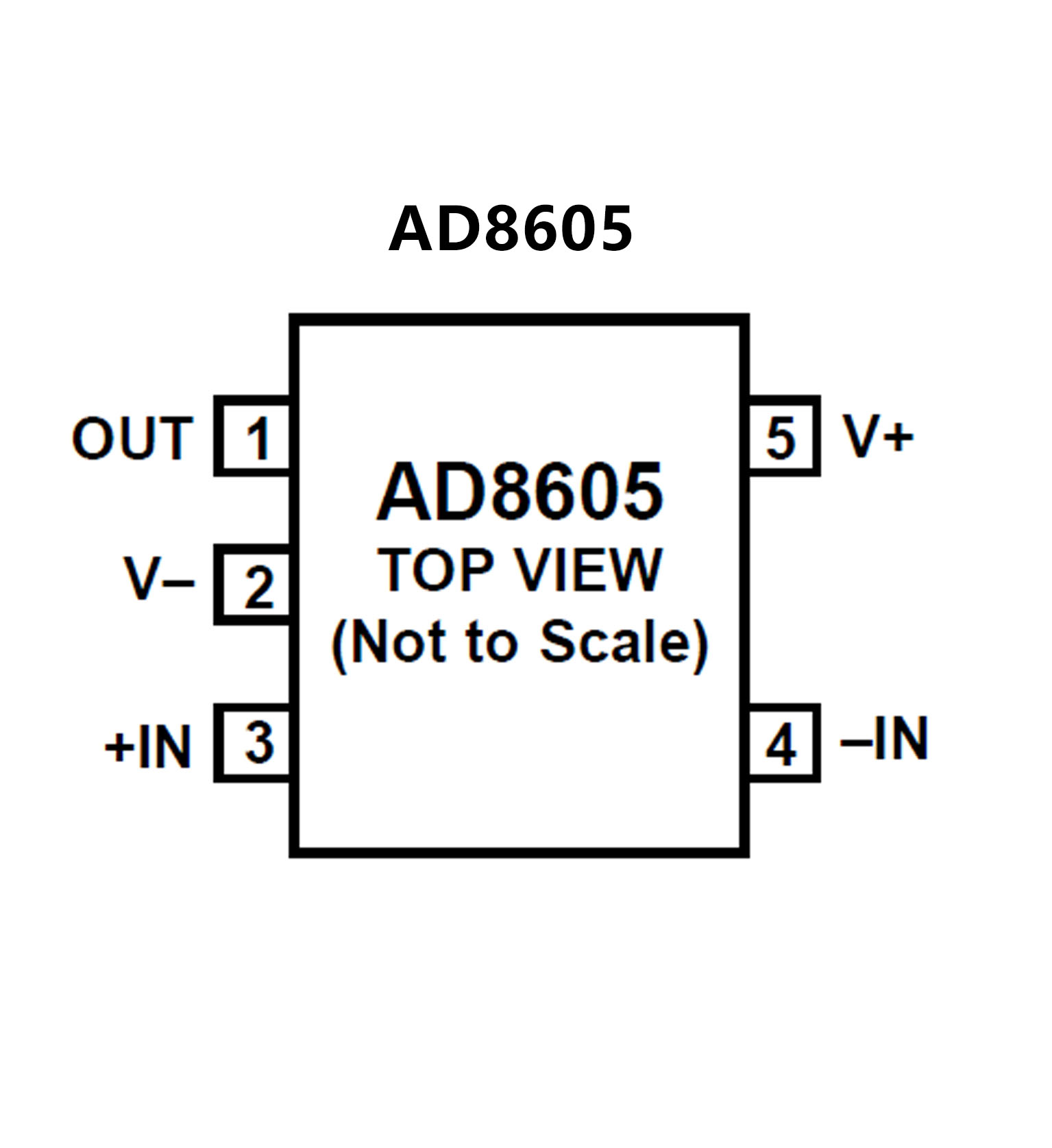

? 5-ball WLCSP for single (AD8605) and 8-ball WLCSP for
? dual (AD8606)
