3A Sink and Source DDR Termination Regulator, TMI62033 Replace TPS51200.
TMI62033
TMI62033.pdf
TMI62033.pdfFEATURES
? VIN Voltage: Supports 2.5V or 3.3V Power Rail
? VLDOIN Voltage Range: 1.1V to 3.5V
? Sink and Source Termination Regulator
Includes Droop Compensation
? PGOOD to Monitor Output Regulation
? Remote Sensing (VOSNS)
? REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
? ±25mA Buffered Reference (REFOUT)
? Built-in Soft Start, UVLO, and OCL
? Supports DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, and DDR4 VTT Applications
? Thermal Shutdown

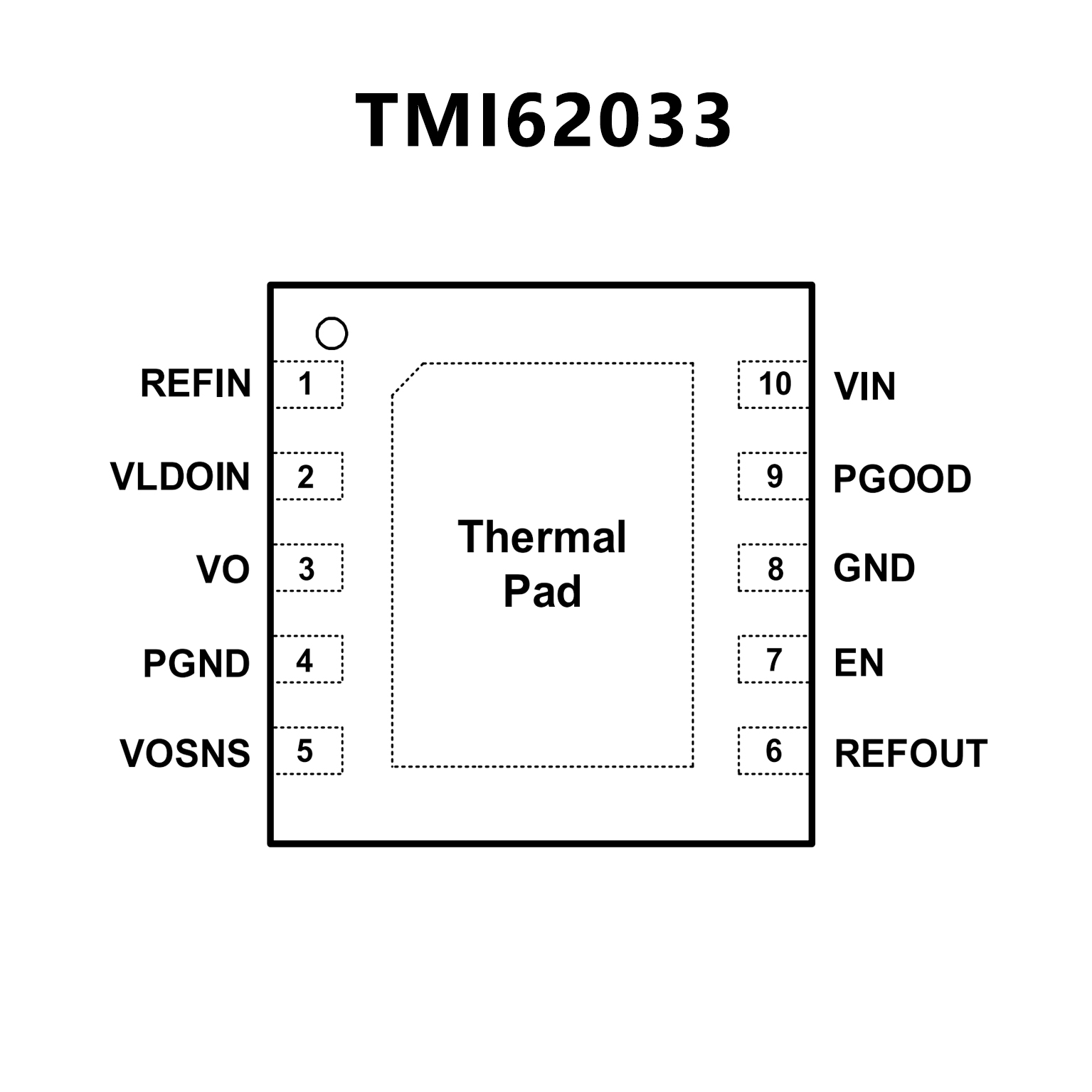

PIN CONFIGUTION
优势替代
FEATURES
? Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
? VLDOIN Voltage Range: 1.1 V to 3.5 V
? Sink and Source Termination Regulator Includes
Droop Compensation
? Requires Minimum Output Capacitance of 20-μF
(Typically 3 × 10-μF MLCCs) for Memory
Termination Applications (DDR)
? PGOOD to Monitor Output Regulation
? EN Input
? REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
? Remote Sensing (VOSNS)
? ±10-mA Buffered Reference (REFOUT)
? Built-in Soft Start, UVLO, and OCL
? Thermal Shutdown
? Supports DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, and DDR4 VTT Applications
? 10-Pin VSON Package With Thermal Pad

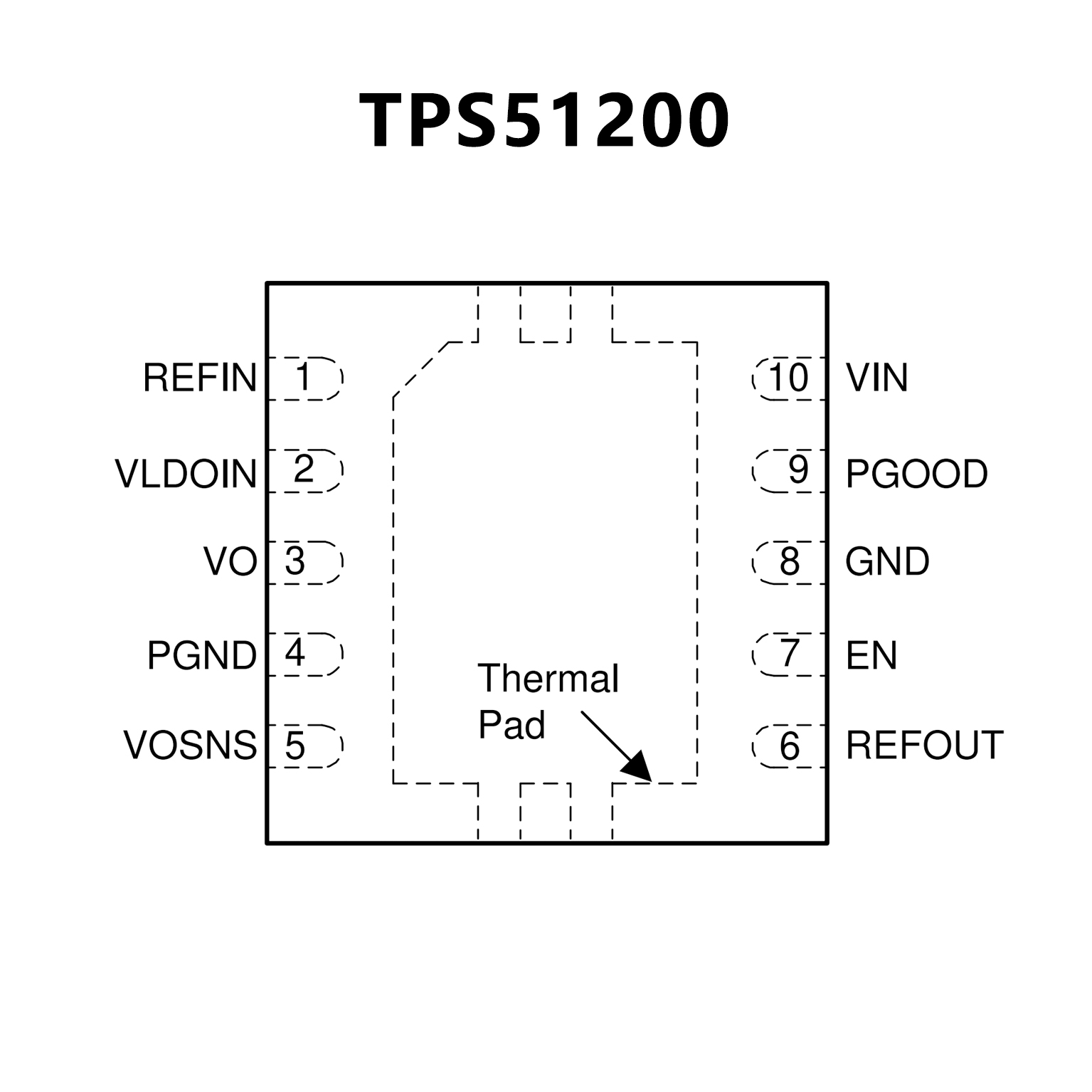

PIN CONFIGUTION
