N-channel 40 V, 20.0 m? logic level MOSFET in LFPAK33, TSM150NB04LCV Replace BUK9M20-40H.
TSM150NB04LCV
TSM150NB04LCV.pdf
TSM150NB04LCV.pdfFEATURES
? Low RDS(ON) to minimize conductive losses
? Logic level
? Low gate charge for fast power switching
? 100% UIS and Rg Tested
? RoHS Compliant
? Halogen-free according to IEC 61249-2-21
PIN CONFIGUTION
优势替代
FEATURES
? Fully automotive qualified to AEC-Q101 at 175 °C
? Trench 9 superjunction technology:
? Low power losses, high power density
? LFPAK copper clip package technology:
? High robustness and reliability
? Gull wing leads for high manufacturability and AOI
? Repetitive avalanche rated

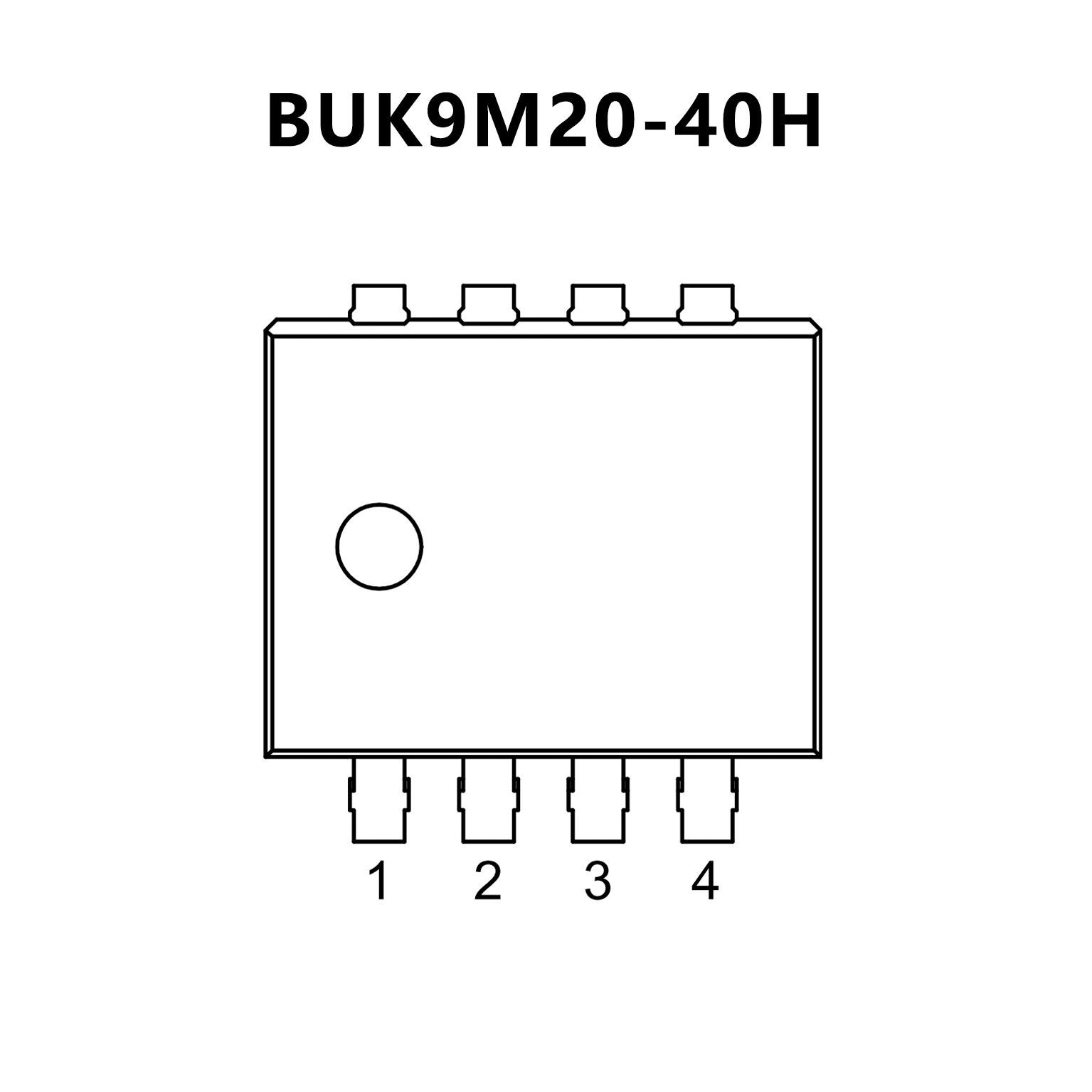

PIN CONFIGUTION
