High-Side Measurement Current Shunt Monitor, ZXCT1082 Replace INA168.
ZXCT1082
ZXCT1082.pdf
ZXCT1082.pdfFEATURES
? Wide supply and common-mode voltage range
2.7V to 60V ZXCT1082/84/86
2.7V to 40V ZXCT1083/85/87
? Independent supply and input common-mode voltage
? Low quiescent current (0.6?A).
? AEC-Q100 Grade 1 qualified
? Extended industrial temperate range -40 to 125°C
? Package SOT25

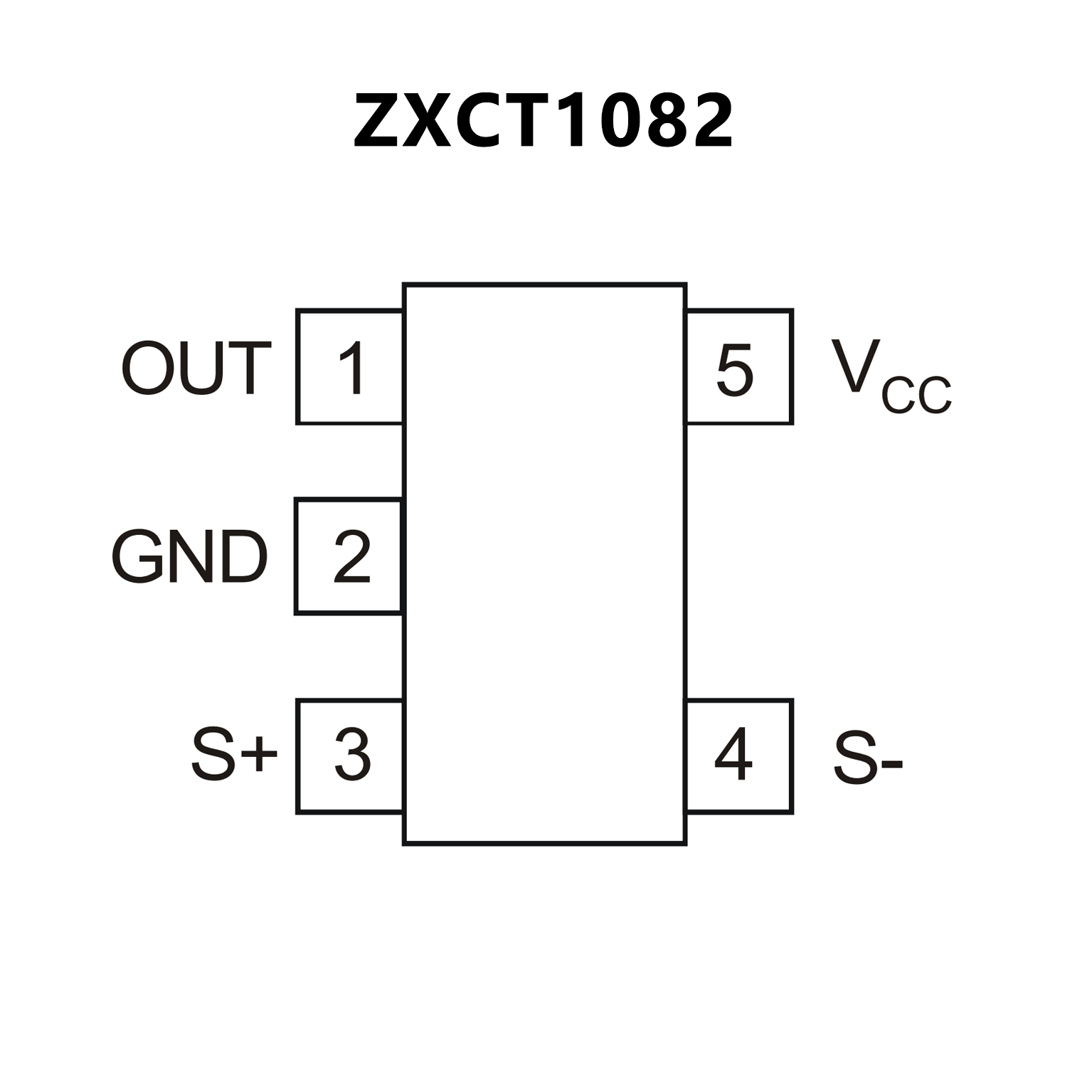

PIN CONFIGUTION
优势替代
FEATURES
? Complete Unipolar High-Side Current
Measurement Circuit
? Wide Supply and Common-Mode Range
? INA138: 2.7 V to 36 V
? INA168: 2.7 V to 60 V
? Independent Supply and Input Common-Mode
Voltages
? Single Resistor Gain Set
? Low Quiescent Current (25 ?A Typical)
? Wide Temperature Range: –40°C to +125°C
? 5-Pin SOT-23 Package

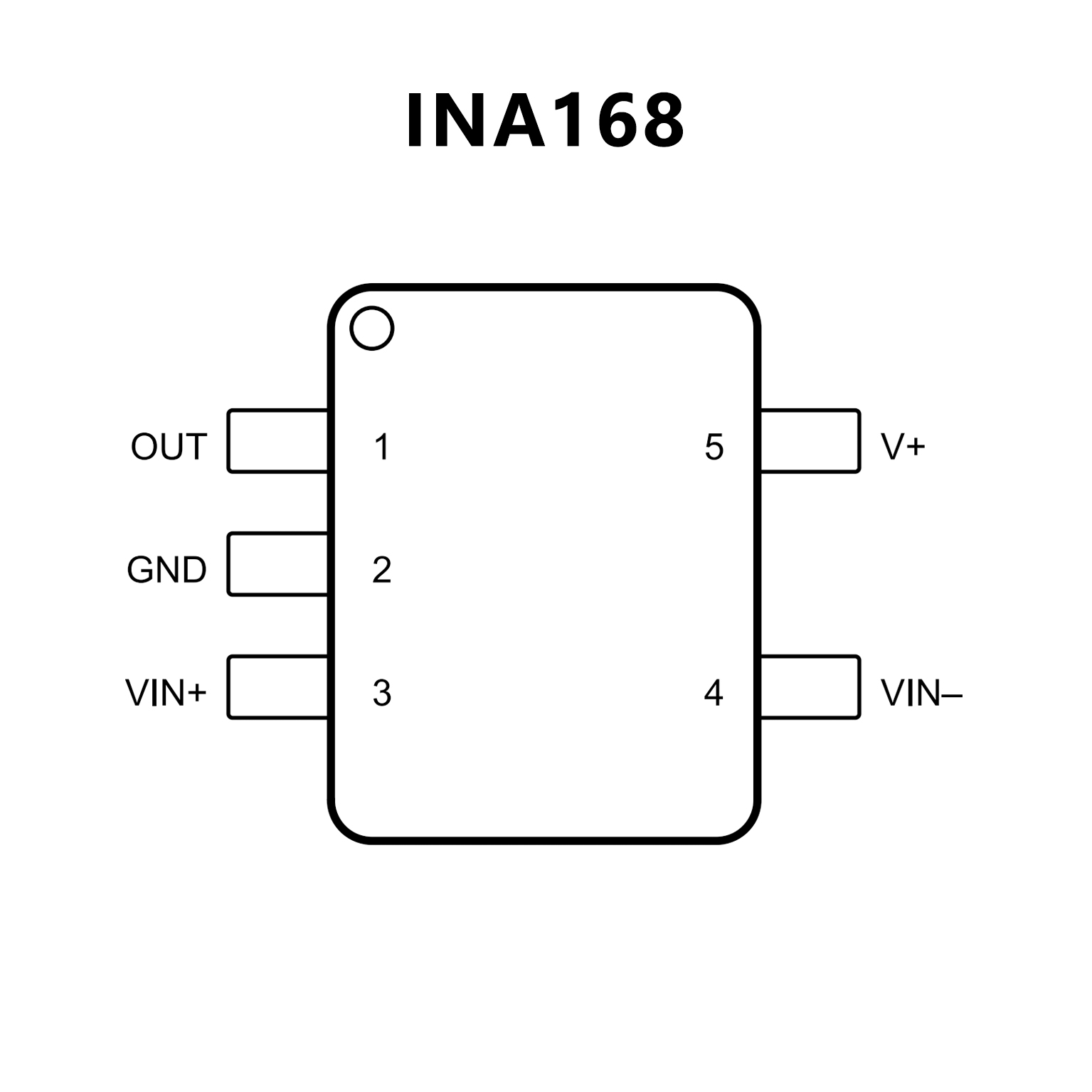

PIN CONFIGUTION
