Surface Mount Dataline Protection Device
DLPT05-7-F
DLPT05-7-F.pdf
DLPT05-7-F.pdf
No.10546
FEATURES
? 300 Watts Peak Pulse Power (tp = 8x20μs)
? Transient Protection for data line to IEC61000-4-2 level 4
(ESD), 8kV HBM
Contact: Discharge – ±30kV
Air: Discharge – ±30kV
? IEC 61000-4-4 (EFT)
? Low Leakage Current
? Surface Mount Package Ideally Suited for Automated Insertion
DESCRIPTION
? Surface Mount Dataline Protection Device
? Case: SOT-23

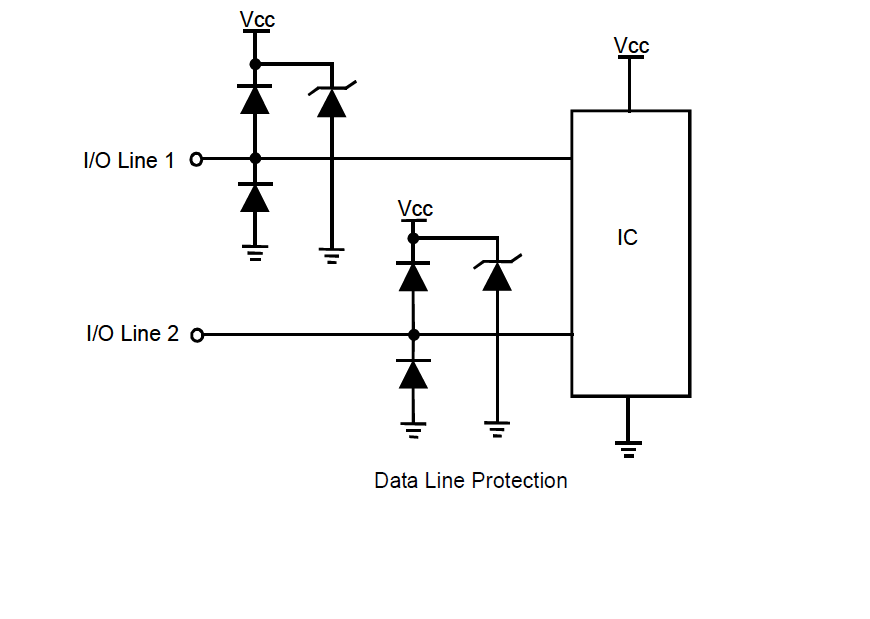

APPLICATION CIRCUIT

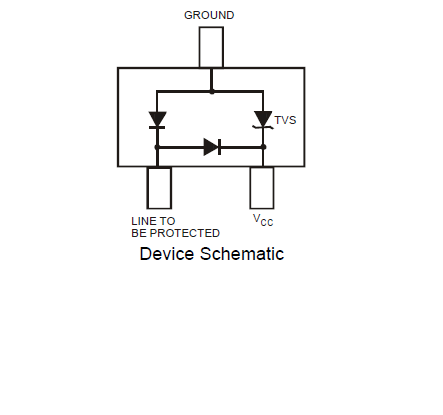

PIN CONFIGUTION
