P-Channel Logic Level Enhancement
P2504EDG
P2504EDG.pdf
P2504EDG.pdf
No.10575
FEATURES
? V(BR)DSS: -40V
? RDS(ON): 25.8mΩ
? ID: -18A
DESCRIPTION
? P-Channel Logic Level Enhancement

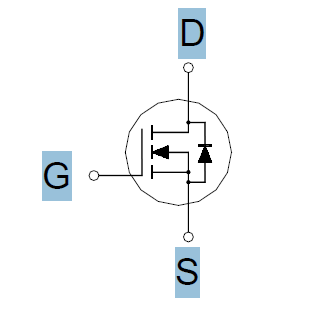

APPLICATION CIRCUIT

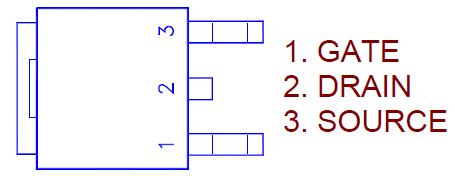

PIN CONFIGUTION
