P-Channel Logic Level Enhancement Mode Field Effect Transistor
PK5A7BA
PK5A7BA.pdf
PK5A7BA.pdf
No.10592
FEATURES
? V(BR)DSS: 40V
? RDS(ON): 28mΩ
? ID: 7A
? Pb?Free, Halogen Free and RoHS compliant.
? Low RDS(on) to Minimize Conduction Losses.
? Ohmic Region Good RDS(on) Ratio.
? Optimized Gate Charge to Minimize Switching Losses
DESCRIPTION
? P-Channel Logic Level Enhancement Mode Field Effect Transistor

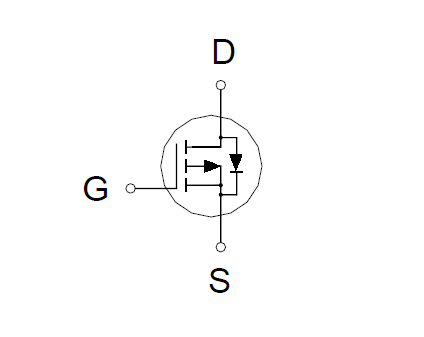

APPLICATION CIRCUIT

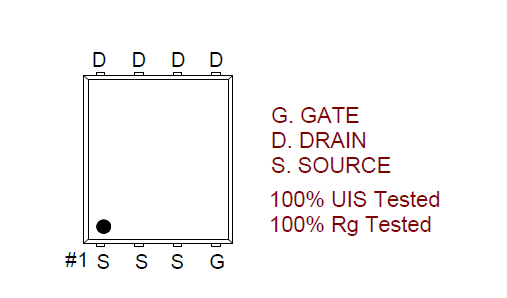

PIN CONFIGUTION
