P-Channel Enhancement Mode Field Effect Transistor
PM569BA
PM569BA.pdf
PM569BA.pdf
No.11074
FEATURES
? V(BR)DSS: -40V
? RDS(ON): 70mΩ
? ID: -2.5A
DESCRIPTION
? Pb?Free, Halogen Free and RoHS compliant.
? Low RDS(on) to Minimize Conduction Losses.
? Ohmic Region Good RDS(on) Ratio.
? Optimized Gate Charge to Minimize Switching Losses.

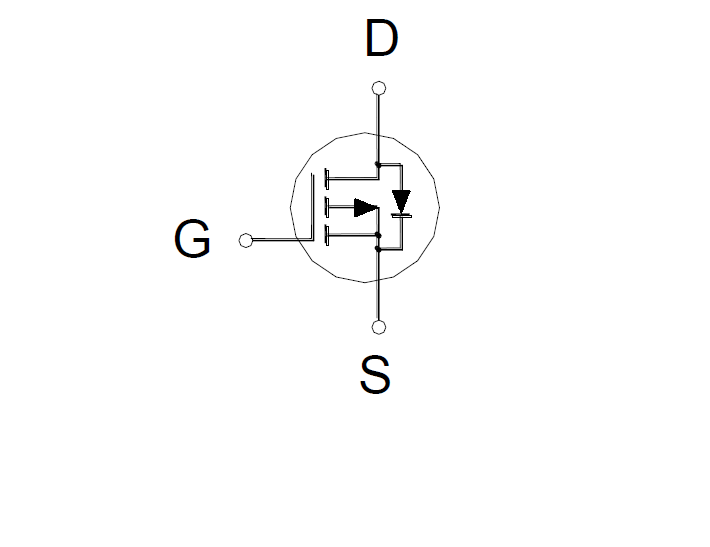

APPLICATION CIRCUIT

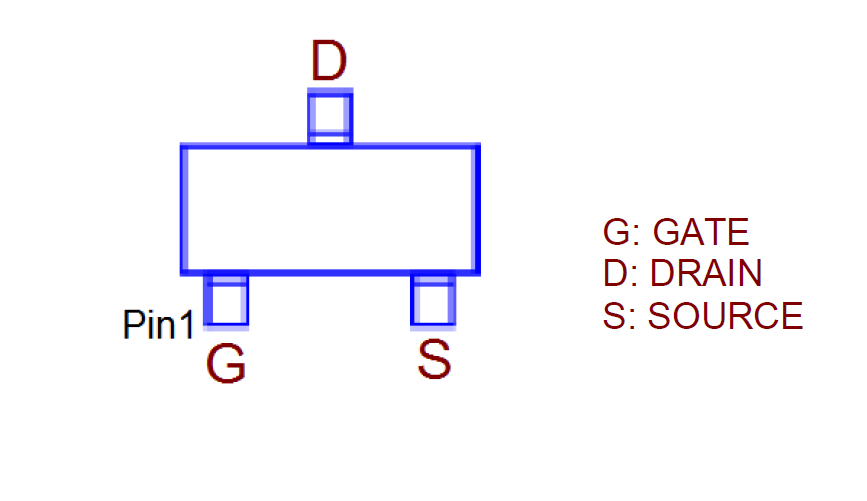

PIN CONFIGUTION
