Data Bus Transient Suppressop
SDA004-7
SDA004-7.pdf
SDA004-7.pdf
No.10606
FEATURES
? ESD Protection >30kV (Human Body Model) (Note 1)
? Ultra-Small Surface Mount Package
? Protects 2 Data Lines
? Low Leakage <25nA
? Low Capacitance 3pF Typ.
? Protects USB 2.0 and USB 1.1
DESCRIPTION
? Data Bus Transient Suppressop
? Case: SOT-363

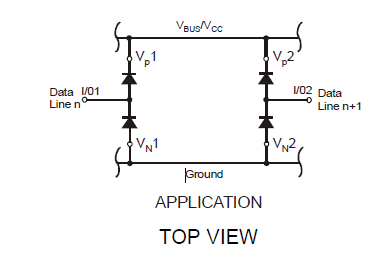

APPLICATION CIRCUIT

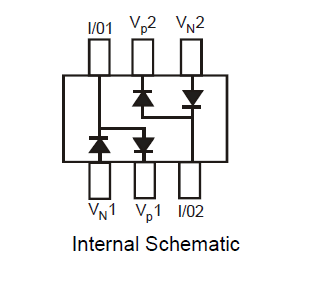

PIN CONFIGUTION
