2.0A High Voltage Schottky Barrier Rectifier.
B2100-13-F
B2100-13-F.pdf
B2100-13-F.pdf
No.13529
FEATURES
? Schottky Barrier Chip
? Guard Ring Die Construction for Transient Protection
? Low Power Loss, High Efficiency
? Surge Overload Rating to 50A Peak
? For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
? High Temperature Soldering: +260°C/10 Second at Terminal
DESCRIPTION
Mechanical Data:

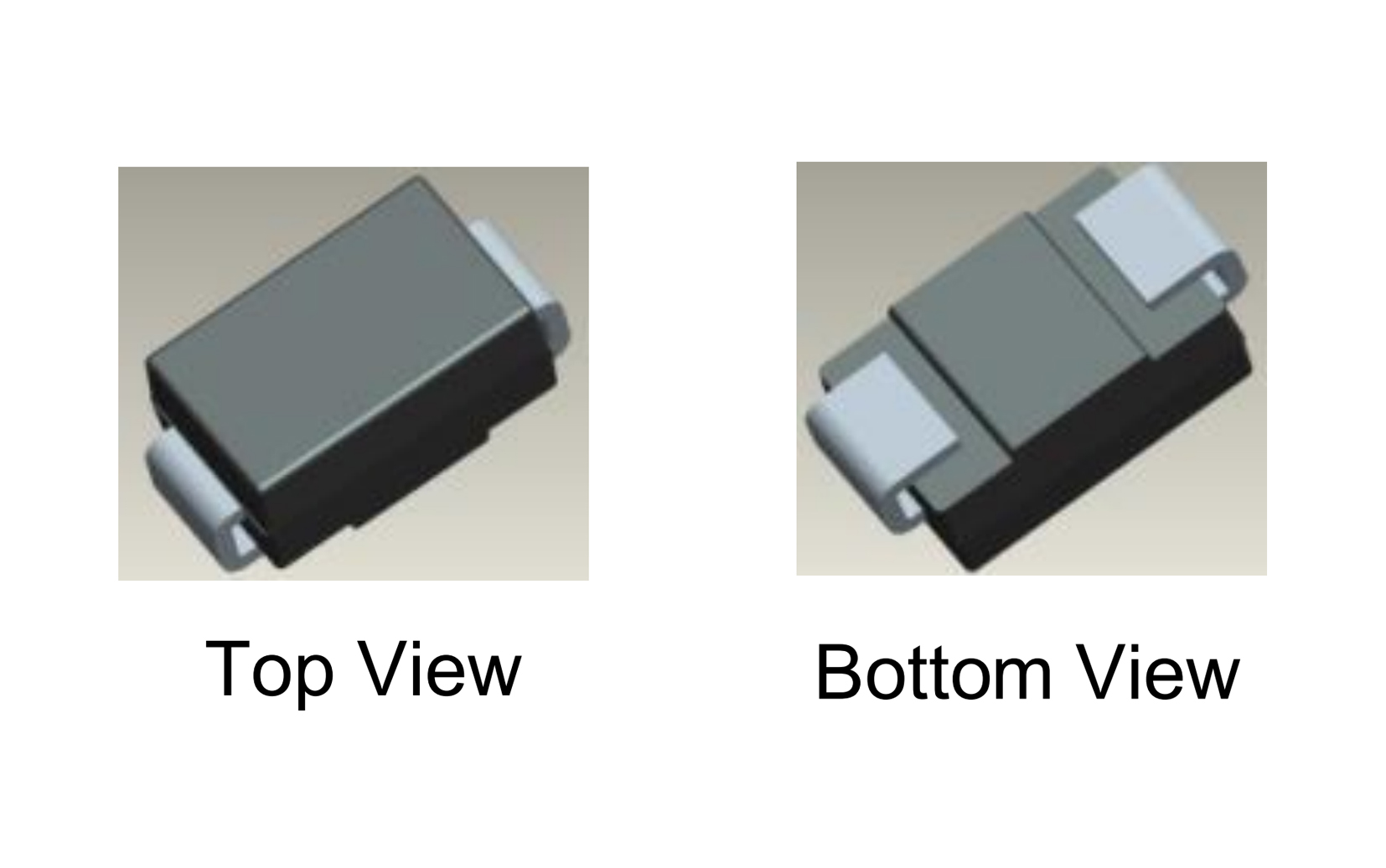

? Case: SMB
? Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
? Polarity: Cathode Band or Cathode Notch
? Weight: 0.093 grams (Approximate)
APPLICATION CIRCUIT
PIN CONFIGUTION
