? Guard Ring Die Construction for Transient Protection

? Ideally Suited for Automated Assembly

? Low Power-Loss, High Efficiency

? Surge Overload Rating to 50A Peak

? For Use in Low-Voltage, High-Frequency Inverters,

  Free-Wheeling, and Polarity Protection Application

? High-Temperature Soldering: +260°C/10 Second at Terminal

? Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

? Halogen and Antimony Free. “Green” Device (Note 3)

? Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

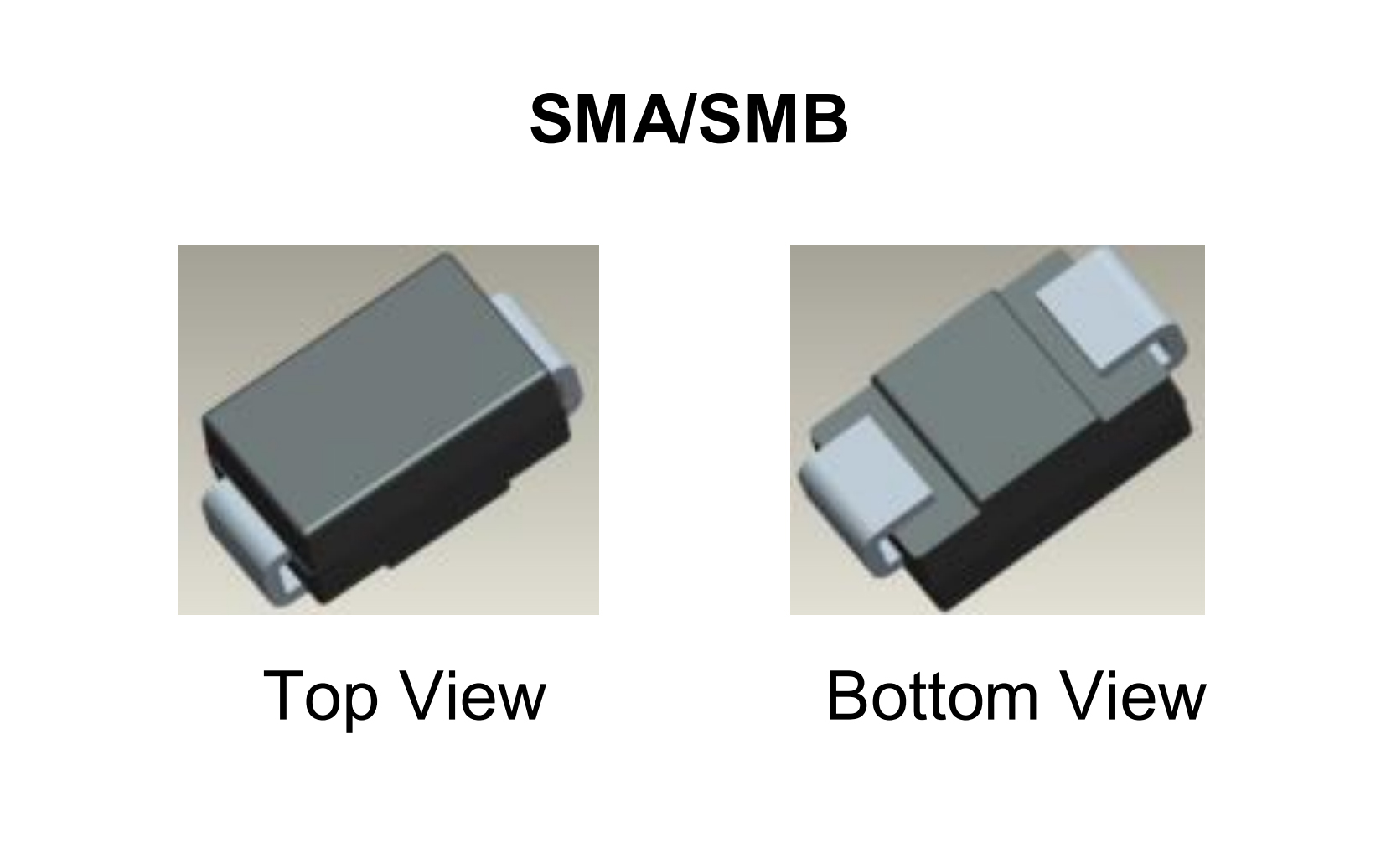

? Case: SMA/SMB

? Case Material: Molded Plastic. UL Flammability Classification

   Rating 94V-0

? Moisture Sensitivity: Level 1 per J-STD-020

? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

   MIL-STD-202, Method 208

? Polarity: Cathode Band or Cathode Notch

? Weight: SMA 0.064 grams (Approximate)

   SMB 0.093 grams (Approximate)
